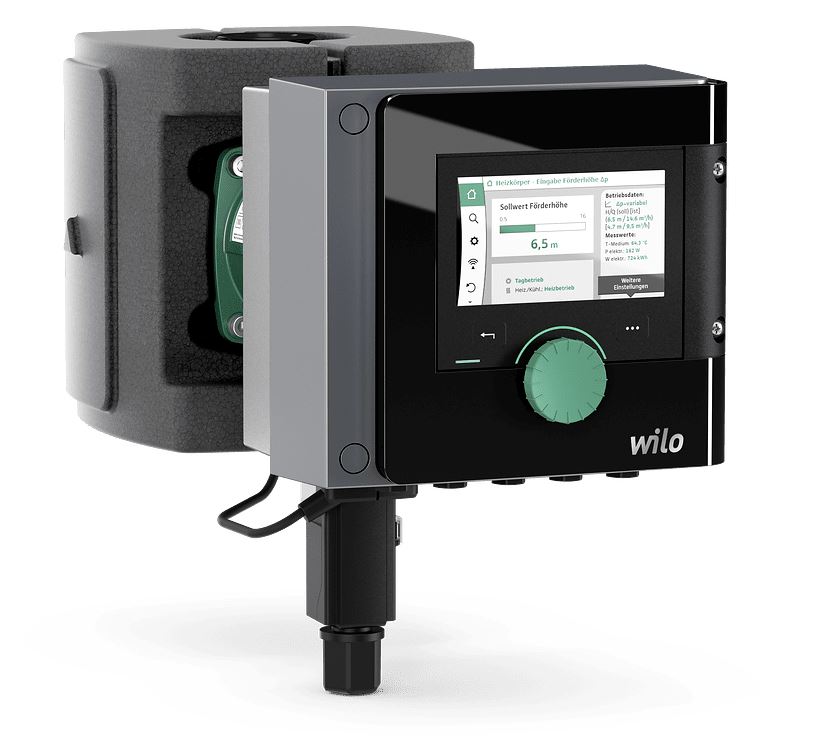

WILO STRATOS MAXO R7 smart glandless circulator with flange connection WILO STRATOS MAXO R7 smart glandless circulator with flange connection

WILO Stratos MAXO 25/0.5-4 R7 180mm without temperature sensor

Stratos MAXO / -D in the "-R7" version are wet-running sealless pumps with a permanent magnet rotor. See more

Technical Specifications

Maximum current [A]
0.58
Power output - P2 [kW]
0.07
Capacitor
integrated
Maximum flow [l/min]
116

Show all Tech Specs

on demand check availability

556.59 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
WILO
Category:
Circulator pumps
Product No.:
ZB00066188
Sale group:
CEW17
EAN:
4062679191898
Manuf. No.:
2217892

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Port-to-port length
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

WILO Stratos MAXO 25/0.5-4 R7 180mm without temperature sensor

Product No.: ZB00066188 Sale group: CEW17 EAN: 4062679191898 Manuf. No.: 2217892

on demand
check availability
Product availability
  • central warehouse 0 pcs

556.59 €

Check availability

Maximum current [A]
0.58
Power output - P2 [kW]
0.07
Capacitor
integrated
Maximum flow [l/min]
116
Maximum head [m]
4
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
6/4
Port-to-port length
180
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
6/4
You are viewing this variant

WILO Stratos MAXO 25 / 0.5-8 R7 PN10 180mm without temperature sensor

Product No.: ZB00065060 Sale group: CEW17 EAN: 4062679192017 Manuf. No.: 2217894

on demand
check availability
Product availability
  • central warehouse 0 pcs

755.03 €

Check availability

Maximum current [A]
1.05
Power output - P2 [kW]
0.13
Capacitor
integrated
Maximum flow [l/min]
163
Maximum head [m]
8
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
6/4
Port-to-port length
180
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
6/4

WILO Stratos MAXO 25 / 0.5-10 R7 180mm without temperature sensor

Product No.: ZB00066220 Sale group: CEW17 EAN: 4062679192024 Manuf. No.: 2217895

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

826.42 €

Maximum current [A]
1.20
Power output - P2 [kW]
0.23
Capacitor
integrated
Maximum flow [l/min]
200
Maximum head [m]
10
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
6/4
Port-to-port length
180
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
6/4

WILO Stratos MAXO 25 / 0.5-12 R7 180mm without temperature sensor

Product No.: ZB00066221 Sale group: CEW17 EAN: 4062679192031 Manuf. No.: 2217896

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

927.46 €

Maximum current [A]
1.28
Power output - P2 [kW]
0.26
Capacitor
integrated
Maximum flow [l/min]
200
Maximum head [m]
11
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
6/4
Port-to-port length
180
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
6/4

WILO Stratos MAXO 30 / 0.5-10 R7 180mm without temperature sensor

Product No.: ZB00066057 Sale group: CEW17 EAN: 4062679192079 Manuf. No.: 2217900

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

906.28 €

Maximum current [A]
1.20
Power output - P2 [kW]
0.23
Capacitor
integrated
Maximum flow [l/min]
200
Maximum head [m]
10
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
2
Port-to-port length
180
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
2

WILO Stratos MAXO 30 / 0.5-14 R7 180mm without temperature sensor

Product No.: ZB00066223 Sale group: CEW17 EAN: 4062679192093 Manuf. No.: 2217902

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,244.48 €

Check availability

Maximum current [A]
1.50
Power output - P2 [kW]
0.30
Capacitor
integrated
Maximum flow [l/min]
200
Maximum head [m]
13
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
2
Port-to-port length
180
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
2

WILO Stratos MAXO 32 / 0.5-10 R7 220mm without temperature sensor

Product No.: ZB00066139 Sale group: CEW17 Manuf. No.: 2217946

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,013.97 €

Maximum current [A]
1.05
Power output - P2 [kW]
0.24
Capacitor
integrated
Maximum flow [l/min]
250
Maximum head [m]
10
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN32
Port-to-port length
220
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN32

WILO Stratos MAXO 32 / 0.5-12 R7 220mm without temperature sensor

Product No.: ZB00066060 Sale group: CEW17 EAN: 4062679195063 Manuf. No.: 2217947

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,265.65 €

Maximum current [A]
1.42
Power output - P2 [kW]
0.27
Capacitor
integrated
Maximum flow [l/min]
275
Maximum head [m]
11
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN32
Port-to-port length
220
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN32

WILO Stratos MAXO 40 / 0.5-8 R7 PN6 / 10 220mm without temperature sensor

Product No.: ZB00065748 Sale group: CEW17 EAN: 4062679195094 Manuf. No.: 2217950

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

1,265.65 €

Maximum current [A]
1.20
Power output - P2 [kW]
0.28
Capacitor
integrated
Maximum flow [l/min]
350
Maximum head [m]
8
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN40
Port-to-port length
220
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN40

WILO Stratos MAXO 40 / 0.5-12 R7 250mm without temperature sensor

Product No.: ZB00066061 Sale group: CEW17 EAN: 4062679195308 Manuf. No.: 2217951

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,595.38 €

Check availability

Maximum current [A]
2.15
Power output - P2 [kW]
0.49
Capacitor
integrated
Maximum flow [l/min]
450
Maximum head [m]
12
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN40
Port-to-port length
250
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN40

WILO Stratos MAXO 50 / 0.5-12 R7 PN6 / 10 280mm without temperature sensor

Product No.: ZB00065749 Sale group: CEW17 EAN: 4062679195353 Manuf. No.: 2217956

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

2,020.09 €

Maximum current [A]
2.40
Power output - P2 [kW]
0.55
Capacitor
integrated
Maximum flow [l/min]
566
Maximum head [m]
12
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN50
Port-to-port length
280
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN50

WILO Stratos MAXO 50 / 0.5-14 R7 340mm without temperature sensor

Product No.: ZB00066193 Sale group: CEW17 EAN: 4062679195360 Manuf. No.: 2217957

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

2,326.82 €

Not sellable online

Maximum current [A]
4.27
Power output - P2 [kW]
0.96
Capacitor
integrated
Maximum flow [l/min]
783
Maximum head [m]
14
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN50
Port-to-port length
340
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN50

WILO Stratos MAXO 65 / 0.5-16 R7 340mm without temperature sensor

Product No.: ZB00066058 Sale group: CEW17 EAN: 4062679195414 Manuf. No.: 2217962

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

2,864.67 €

Not sellable online

Maximum current [A]
6.19
Power output - P2 [kW]
1.41
Capacitor
integrated
Maximum flow [l/min]
900
Maximum head [m]
16
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN65
Port-to-port length
340
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN65

WILO Stratos MAXO 80 / 0.5-6 PN6 R7 360mm without temperature sensor

Product No.: ZB00066228 Sale group: CEW17 EAN: 4062679195421 Manuf. No.: 2217963

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,303.23 €

Not sellable online

Maximum current [A]
3.71
Power output - P2 [kW]
0.74
Capacitor
integrated
Maximum flow [l/min]
1,033
Maximum head [m]
6
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN80
Port-to-port length
360
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN80

WILO Stratos MAXO 80 / 0.5-6 PN10 R7 360mm without temperature sensor

Product No.: ZB00066194 Sale group: CEW17 EAN: 4062679195438 Manuf. No.: 2217964

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,417.57 €

Not sellable online

Maximum current [A]
3.71
Power output - P2 [kW]
0.74
Capacitor
integrated
Maximum flow [l/min]
1,033
Maximum head [m]
6
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN80
Port-to-port length
360
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN80

WILO Stratos MAXO 80 / 0.5-12 R7 PN6 360mm without temperature sensor

Product No.: ZB00066063 Sale group: CEW17 EAN: 4062679195445 Manuf. No.: 2217965

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

3,078.23 €

Not sellable online

Maximum current [A]
6.13
Power output - P2 [kW]
1.21
Capacitor
integrated
Maximum flow [l/min]
1,116
Maximum head [m]
12
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN80
Port-to-port length
360
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN80

WILO Stratos MAXO 80 / 0.5-16 PN10 R7 360mm without temperature sensor

Product No.: ZB00066197 Sale group: CEW17 EAN: 4062679195476 Manuf. No.: 2217968

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,514.44 €

Not sellable online

Maximum current [A]
7.14
Power output - P2 [kW]
1.41
Capacitor
integrated
Maximum flow [l/min]
1,233
Maximum head [m]
16
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
DN80
Port-to-port length
360
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
DN80

Product description

The Stratos MAXO-R7 does not have an integrated temperature sensor.

This results in functional differences compared to Stratos MAXO pumps with integrated temperature sensor.

Highly efficient inline wet running pump with EC motor and electronic power adjustment. Can be used for heating water, cold water and water / glycol mixtures. Energy efficiency index (EEI) according to pump type between ≤ 0.17 and ≤ 0.19.

Regulatory modes:

  • Permanent, automatic power adjustment to the device requirements without entering the Wilo-Dynamic Adapt plus setpoint (factory setting). Current savings of up to 20% compared to dp-v control mode.
  • Constant temperature (T-const.)
  • Constant temperature difference (dT-const.)
  • Optimization of the pumped quantity of the feed pump as required by connection and communication with several pumps (Multi-Flow Adaptation).
  • Constant pumped quantity (Q-const.)
  • Control according to the differential pressure dp-c at a remote point in the pipeline network (wrong point regulation)
  • Constant differential pressure (dp-c)
  • Variable differential pressure (dp-v) with optional input of nominal operating points
  • Constant speed (n-const.)
  • User-defined PID control

Function:

  • Records of the amount of heat
  • Records of the amount of cold
  • Automatic pump shutdown when No-Flow Stop is detected
  • Switching between heating and cooling operation (automatic, external or manual) (automatic, possible with Stratos MAXO temperature sensor)
  • Adjustable pump power limitation with Q-Limit function (Qmin. And Qmax.)
  • Dual pump operating modes: Parallel operation with effect optimization for dp-c and dp-v, main / backup mode
  • Save and restore configured pump settings (3 restore points)
  • Display of the fault / warning message in block letters, including recommendations for remediation
  • Venting function for automatic ventilation of the rotor chamber
  • Automatic attenuation mode (possible with Stratos MAXO temperature sensor)
  • Automatic unlocking function and integrated full motor protection
  • Dry running detection

Instructions

Technical Specifications

Maximum current [A]
0.58
Power output - P2 [kW]
0.07
Capacitor
integrated
Maximum flow [l/min]
116
Maximum head [m]
4
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
6/4
Port-to-port length
180
Protection [IP]
X4D
Off switch
YES
Input voltage [V]
230
Delivery port ["]
6/4

{9503C5C0-599E-4D74-9530-64669EDC6C10}

{74F69362-9499-4561-9BCD-9B728A39DDB8}
WILO SE
Wilopark 1, D-44263 Dortmund, DE
{13991AA5-D921-4185-9F6C-629838AEA0E6} [email protected]
