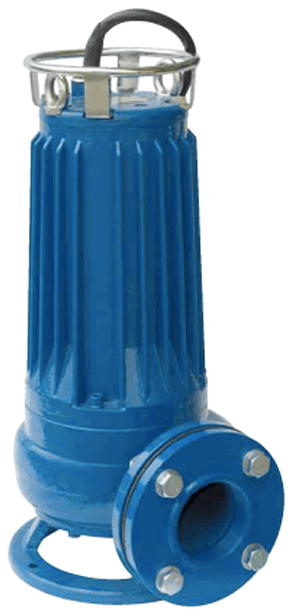

Thanks to their important features, SQ pumps are the ideal solution for the carriage of waters coming from cleaners, sewing systems, zootechnic farms, slaughter-houses, foundries and for irrigation in agricultural field. Applicable in fishing industry, paper mills and in civil and industrial plants. The pumps adopt open single-blade impeller which allows free passage of suspended parts and high performance.

See more

on demand check availability

799.66 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Wastewater pumps
Product No.:
ZB00036183
Sale group:
CESP
EAN:
8006414018756
Manuf. No.:
101295120

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Capacitor
  • Construction
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00036181
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 608.56 €
    • Check availability
    • ZB00036182
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 741.13 €
    • Check availability
    • ZB00036183
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 799.66 €
    • Check availability
    • ZB00036184
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 1,141.93 €
    • Check availability
    • ZB00036185
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 1,475.86 €
    • Check availability
    • ZB00036186
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 1,790.75 €
    • Check availability
    • ZB00036187
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 2,563.36 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

You are viewing this variant

Product description

LIMITS OF USE


- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 50°C (for other uses)
- Maximum immersion depth 20 mt.
(with a cable of the appropriate length)
- Liquid PH from 4 to 10
- Continuous duty with completely submersed pump
- Liquid density 1,2 Kg/dm3


ENGINE


- Three-phase 230/400V-50Hz
- Insulation Class F
- Protection IP 68


MATERIALS


- Motor body: Cast iron
- Pump body: Cast iron
- Impeller: Cast iron
- Shaft with rotor: Stainless steel AISI 304
- Double mechanical seal
in oil chamber: Ceramic/Graphite/NBR
Silicon/Silicon/NBR
