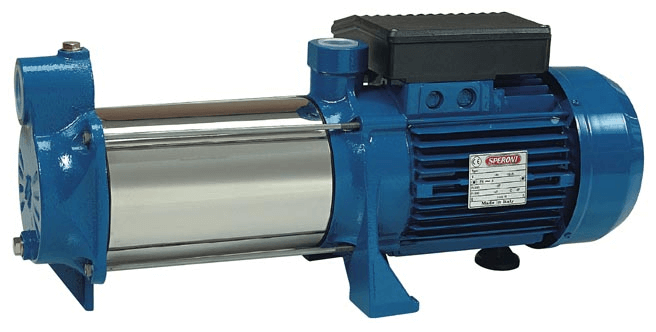

Centrifugal horizontal multi-impeller water pumps able to develop high pressure and a high water lift with a comparatively low power consumption. Thanks to their silent running and very good features, they are suitable in domestic fittings by tank pressure groups, for small sprinkler irrigations and car washing. See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
4.60

Show all Tech Specs

on demand check availability

754.30 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Horizontal surface pumps
Product No.:
ZB00016964
Sale group:
CESP
EAN:
8006414009808
Manuf. No.:
102190490

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00016964
    • horizontal
    • NO
    • NO
    • 4.60
    • 1.90
    • NO
    • multi-stage
    • 160
    • 59
    • noryl
    • NO
    • NO
    • DN32
    • 7
    • 55
    • NO
    • 3x400
    • DN32
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 754.30 €
    • Check availability
    • ZB00003619
    • horizontal
    • NO
    • NO
    • 6.60
    • 3
    • NO
    • multi-stage
    • 160
    • 95
    • noryl
    • NO
    • NO
    • DN32
    • 7
    • 55
    • NO
    • 3x400
    • DN32
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 767.70 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00016964 Sale group: CESP EAN: 8006414009808 Manuf. No.: 102190490

on demand
check availability
Product availability
  • central warehouse 0 pcs

754.30 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
4.60
Power output - P2 [kW]
1.90
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
160
Maximum head [m]
59
Impeller material
noryl
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32
You are viewing this variant

Product No.: ZB00003619 Sale group: CESP EAN: 8006414015120 Manuf. No.: 102190180

on demand
check availability
Product availability
  • central warehouse 0 pcs

767.70 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
6.60
Power output - P2 [kW]
3
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
160
Maximum head [m]
95
Impeller material
noryl
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32

Product description

LIMITS OF USE


- Liquid temperature up to 35°C (for home use
according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 mt.
- Continuous duty


ENGINE


- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protezione IP 55


MATERIALS


- Pump body: Cast Iron
- Motor support: Cast Iron
- Impeller: Noryl
- Diffusers: Noryl
- Pump casing: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
