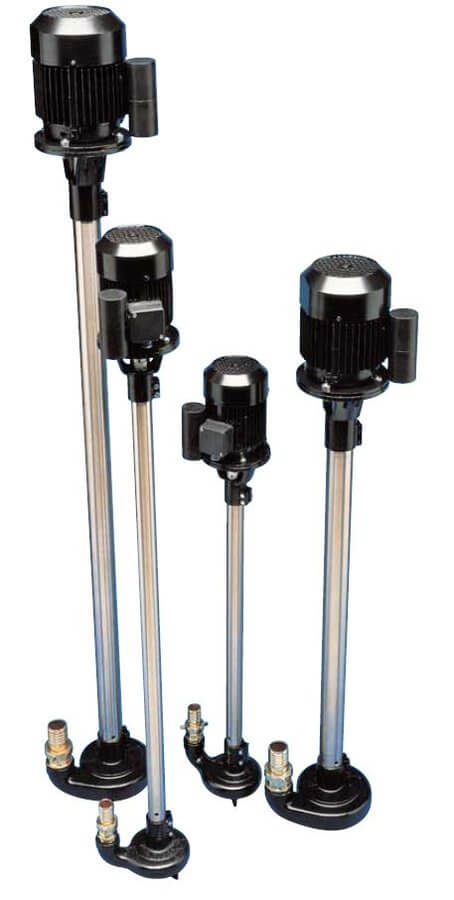

Vertical water pumps with external motor and water plunged pump body. Particularly suitable in tank or cesspools drainage in civil and industrial purposes. To lift slightly dirty water or aggressive liquids and abrasive as the pump is not equipped with mechanical seal. See more

in stock 1 pcs

703.88 € VAT included

the price includes a recycling fee

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Wastewater pumps
Product No.:
ZB00035982
Sale group:
CESP
EAN:
8006414000379
Manuf. No.:
101340050

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Capacitor
  • Construction
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

You are viewing this variant

Product description

LIMITS OF USE


- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 90°C (for other uses)
- Suspended solid Ø15mm (NG-NGM)
- Suspended solid Ø25mm (GF-GFM)
- Continuous duty


ENGINE


- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz
- Two-Pole induction motor (n = 2850 min-1) NG-NGM
- Four-Pole induction motor (n = 1400 min-1) GF-GFM
- Insulation Class F
- Protection IP 44


MATERIALS


- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Cast Iron
- Bush: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Friction bearing: Brass
