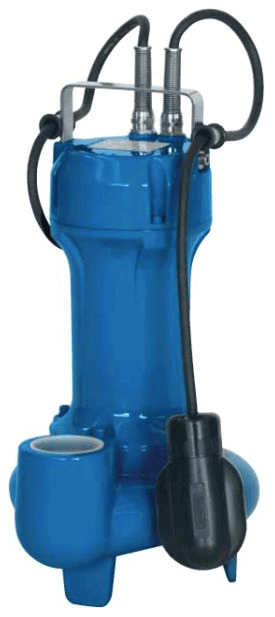

Submersible drainage pumps with plunged back impeller Vortex type. Suitable in civil and industrial water systems, for cesspool drainage with slighlty dirty or foamy liquids, for oily waters cleaned by grid. See more

on demand check availability

550.49 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Wastewater pumps
Product No.:
ZB00035959
Sale group:
CESP
EAN:
8006414014628
Manuf. No.:
101290130

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Capacitor
  • Construction
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00035957
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 528.60 €
    • Check availability
    • ZB00017085
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 550.49 €
    • Check availability
    • ZB00035959
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 550.49 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

You are viewing this variant

Product description

LIMITS OF USE


- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
- Maximum immersion depth 20 mt.
(with a cable of the appropriate length)
- Grain size inlet Ø 30 mm
- Min. suction level 100 mm
- Continuous duty


ENGINE


- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz
- Insulation Class F
- Protection IP 68
- Thermic protection (only single-phase)


MATERIALS


- Motor body: Cast Iron
- Pump body: Cast Iron
- Impeller: Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal
with oil chamber: Silicon/Silicon/NBR
