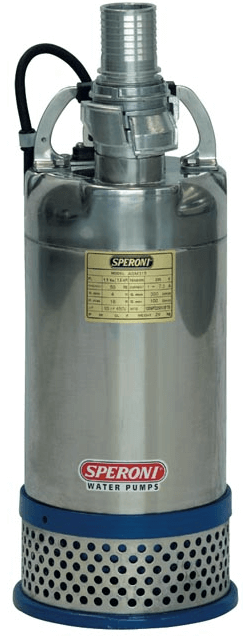

For the drainage of construction sites, trench ducts, and underground passages. Suitable to pump water out from cellars, garages and basements. Disposal of moderately heavy water containing some abrasive material.

See more

on demand check availability

2,390.68 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Wastewater pumps
Product No.:
ZB00035834
Sale group:
CESP
EAN:
8006414026331
Manuf. No.:
101294050

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Capacitor
  • Construction
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00035836
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 1,715.63 €
    • Check availability
    • ZB00035837
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 2,490.48 €
    • Check availability
    • ZB00035834
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 2,390.68 €
    • Check availability
    • ZB00035835
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 2,600.76 €
    • Check availability
    • ZB00035830
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 3,169.46 €
    • Check availability
    • ZB00035831
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 5,978.37 €
    • Check availability
    • ZB00035833
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 5,742.68 €
    • Check availability
    • ZB00035832
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 6,089.10 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

You are viewing this variant

Product description

LIMITS OF USE


- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 50°C (for other uses)
- Maximum immersion depth 20 mt.
(with a cable of the appropriate length)
- Grain size inlet Ø 7,5 mm (ASM 315)
- Grain size inlet Ø 10,5 mm
- Min. suction level 85 mm (ASM 315)
- Min. suction level 120 mm


ENGINE


- Single-phase 230V-50Hz
- Three-phase 230/400V-50Hz
- Permanent split capacitor (ASM 315 μF10 ; ASM 520 μF15)
- Insulation Class F
- Protection IP 68


MATERIALS


- Out cover: Stainless steel AISI 304
- Motor frame: Stainless steel AISI 304
- Upper cover: Stainless steel AISI 304
- Pump body: Spheroidal cast iron
- Impeller: High chrome alloy (HCR)
- Shaft: Stainless steel AISI 304
- Double mechanical seal
in oil chamber: Ceramic/Graphite/NBR
Silicon/Silicon/NBR
