Submersible slurry pump with cutter for fixed or mobile installation. The pump is suitable for pumping domestic sewage and waste water containing faeces. See more

Technical Specifications

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
7
Maximum current [A]
5,40

Show all Tech Specs

on demand check availability

1,314.05 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
WILO
Category:
Wastewater pumps
Product No.:
ZB00069580
Sale group:
CEW07
EAN:
4062679232683
Manuf. No.:
6093590

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00069579
    • YES
    • 10
    • 7
    • 1,90
    • 0,75
    • integrated
    • submersible
    • 276
    • 20,30
    • noryl
    • NO
    • YES
    • 10
    • NO
    • YES
    • 68
    • NO
    • DN32
    • on demand
      check availability
    • 1,360.03 €
    • Check availability
    • ZB00069580
    • YES
    • 10
    • 7
    • 5,40
    • 0,75
    • integrated
    • submersible
    • 276
    • 20,30
    • noryl
    • NO
    • NO
    • 10
    • NO
    • YES
    • 68
    • NO
    • DN32
    • on demand
      check availability
    • 1,314.05 €
    • Check availability
    • ZB00069581
    • YES
    • 10
    • 7
    • 1,90
    • 0,75
    • NO
    • submersible
    • 276
    • 20,30
    • noryl
    • NO
    • NO
    • 10
    • NO
    • YES
    • 68
    • NO
    • 3x400
    • DN32
    • on demand
      check availability
    • 1,168.85 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00069579 Sale group: CEW07 EAN: 4062679232690 Manuf. No.: 6093591

on demand
check availability

1,360.03 €

Check availability

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
7
Maximum current [A]
1,90
Power output - P2 [kW]
0,75
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
276
Maximum head [m]
20,30
Impeller material
noryl
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
10
Speed ​​control
NO
Grinder
YES
Protection [IP]
68
Off switch
NO
Delivery port ["]
DN32

Product No.: ZB00069580 Sale group: CEW07 EAN: 4062679232683 Manuf. No.: 6093590

on demand
check availability

1,314.05 €

Check availability

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
7
Maximum current [A]
5,40
Power output - P2 [kW]
0,75
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
276
Maximum head [m]
20,30
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
10
Speed ​​control
NO
Grinder
YES
Protection [IP]
68
Off switch
NO
Delivery port ["]
DN32
You are viewing this variant

Product No.: ZB00069581 Sale group: CEW07 EAN: 4062679232706 Manuf. No.: 6093592

on demand
check availability

1,168.85 €

Check availability

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
7
Maximum current [A]
1,90
Power output - P2 [kW]
0,75
Capacitor
NO
Construction
submersible
Maximum flow [l/min]
276
Maximum head [m]
20,30
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
10
Speed ​​control
NO
Grinder
YES
Protection [IP]
68
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32

Product description

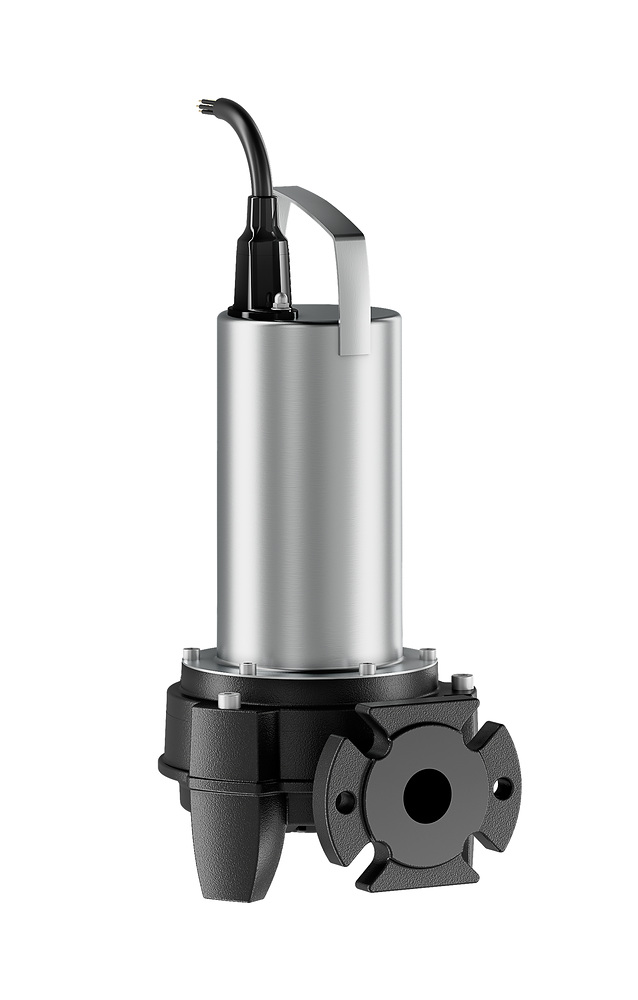

Submersible slurry pump with cutter for fixed or mobile installation. The pump is suitable for pumping domestic sewage and waste water containing faeces.

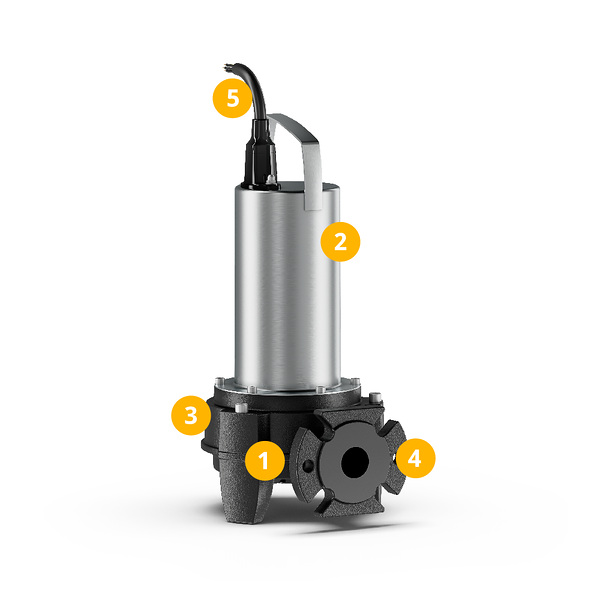

Pump features

  • Integrated motor thermal protection
  • Low weight and easy handling
  • Operational reliability and sufficient performance
  • 230 V version incl. connected cabinets with start-up capacitor and switch

Pump materials

  • Stainless steel motor housing
  • Cast iron pump housing
  • Cutter made of hardened cutting steel
  • Impeller made of composite material

Technical Specifications

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
7
Maximum current [A]
5,40
Power output - P2 [kW]
0,75
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
276
Maximum head [m]
20,30
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
10
Speed ​​control
NO
Grinder
YES
Protection [IP]
68
Off switch
NO
Delivery port ["]
DN32
