No more worries about low water pressure! Introducing the PUMPA e-line E-DRIVE PHF PICOLA automatic home water pump with frequency converter and permanent magnet motor. This home watermaker is the solution to your everyday low water pressure problems. See more

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1.20
Maximum current [A]
3.50

Show all Tech Specs

on demand check availability

431.40 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
PUMPA
Product No.:
ZB00070842
Sale group:
CECA
EAN:
8596455041023

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum pressure [bar]
  • Maximum head [m]
  • Impeller material
  • Vessel volume [l]
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Pump diameter ["]
  • Speed ​​control
  • Suction port ["]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Stop pressure [bar]
  • Delivery port ["]
  • Start pressure [bar]
  • Check valve
  • Availability
  • Price
    • ZB00070842
    • NO
    • YES
    • 1.20
    • 3.50
    • 0.58
    • integrated
    • with frequency converter
    • 83.30
    • 7
    • 45
    • noryl
    • YES
    • NO
    • 0.20
    • 4
    • YES
    • 1
    • 230
    • 1
    • on demand
      check availability
    • 431.40 €
    • Check availability
    • ZB00074197
    • NO
    • YES
    • 1,20
    • 10
    • 1,80
    • integrated
    • with frequency converter
    • 275
    • 7
    • 60
    • noryl
    • YES
    • NO
    • 0,20
    • 5
    • YES
    • 6/4
    • 230
    • 6/4
    • on demand
      check availability
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00070842 Sale group: CECA EAN: 8596455041023

on demand
check availability

431.40 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1.20
Maximum current [A]
3.50
Power output - P2 [kW]
0.58
Capacitor
integrated
Construction
with frequency converter
Maximum flow [l/min]
83.30
Maximum pressure [bar]
7
Maximum head [m]
45
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Maximum particle size [mm]
0.20
Pump diameter ["]
4
Speed ​​control
YES
Suction port ["]
1
Input voltage [V]
230
Delivery port ["]
1
You are viewing this variant

Product No.: ZB00074197 Sale group: CECA EAN: 8596455042983

on demand
check availability

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1,20
Maximum current [A]
10
Power output - P2 [kW]
1,80
Capacitor
integrated
Construction
with frequency converter
Maximum flow [l/min]
275
Maximum pressure [bar]
7
Maximum head [m]
60
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Maximum particle size [mm]
0,20
Pump diameter ["]
5
Speed ​​control
YES
Suction port ["]
6/4
Input voltage [V]
230
Delivery port ["]
6/4

Product description

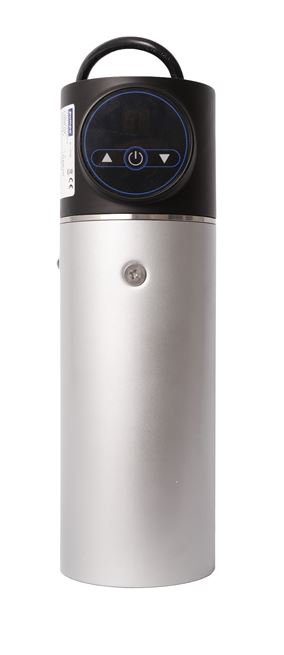

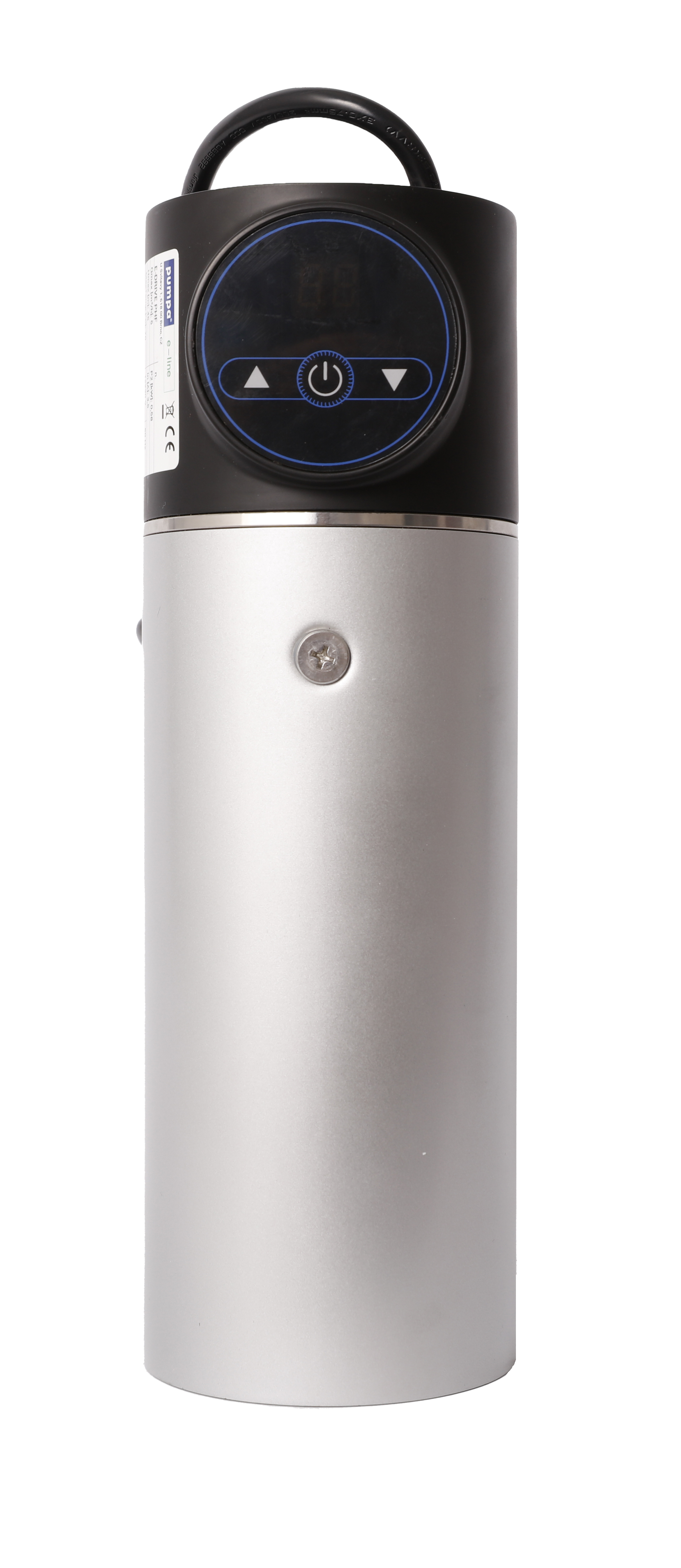

No more worries about low water pressure! Introducing the PUMPA e-line E-DRIVE PHF PICOLA automatic home water pump with frequency converter and permanent magnet motor. This home watermaker is the solution to your everyday low water pressure problems. The watermaker is equipped with an intelligent control unit, touch screen display, stainless steel surface and durable connectors, ensuring convenient and easy use. Its compact size, light weight and unique appearance make it suitable for any space.

Use

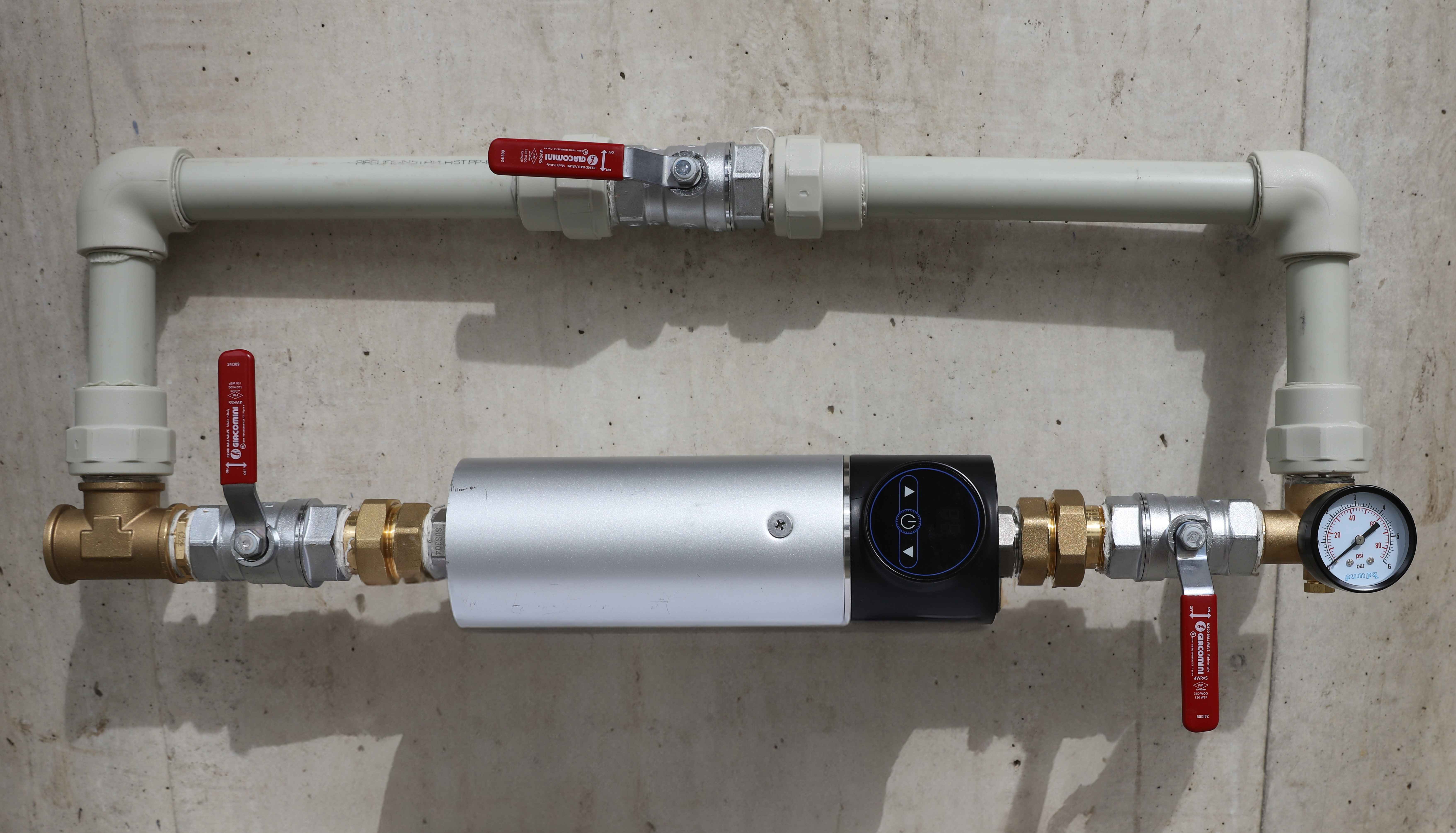

For increasing the pressure when pumping water from the tap line.

Benefits

Constant water pressure: Enjoy constant water pressure in your home.

Energy Saving: Thanks to the permanent magnet motor and intelligent power control, it significantly reduces energy consumption.

Compact design: thanks to its compactness, the watermaker fits easily into any space (dimensions 270 x 94 mm x 88 mm)

Low noise: Enjoy comfort without disturbing noise. Our pump operates at a low noise level during normal operation, so your home remains a quiet and peaceful place.

Easy to use: the touchscreen display makes operation simple and intuitive.

Durability and longevity: 304 stainless steel surface and durable connectors ensure a long life of the device.

Intelligent control: self-monitoring, fault indication and remote maintenance via Bluetooth 5.2 and mobile app provide maximum convenience and safety.

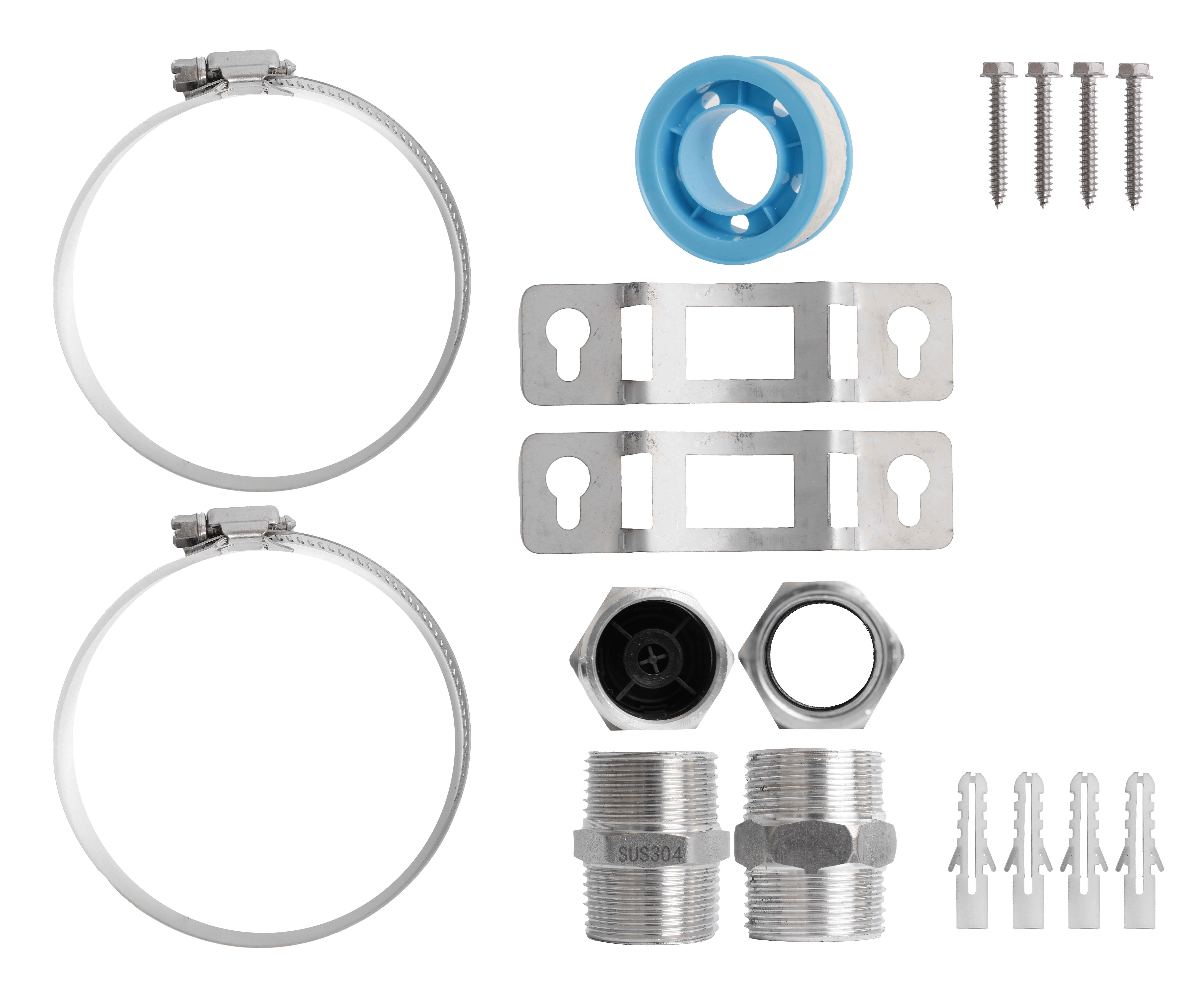

The package contains

  • PUMPA e-line E-DRIVE PHF PICOLA
  • Fixing clip
  • Fixing bracket
  • Screws and dowels
  • Fittings
  • Fittings with non-return valve

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1.20
Maximum current [A]
3.50
Power output - P2 [kW]
0.58
Capacitor
integrated
Construction
with frequency converter
Maximum flow [l/min]
83.30
Maximum pressure [bar]
7
Maximum head [m]
45
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Maximum particle size [mm]
0.20
Pump diameter ["]
4
Speed ​​control
YES
Suction port ["]
1
Input voltage [V]
230
Delivery port ["]
1
