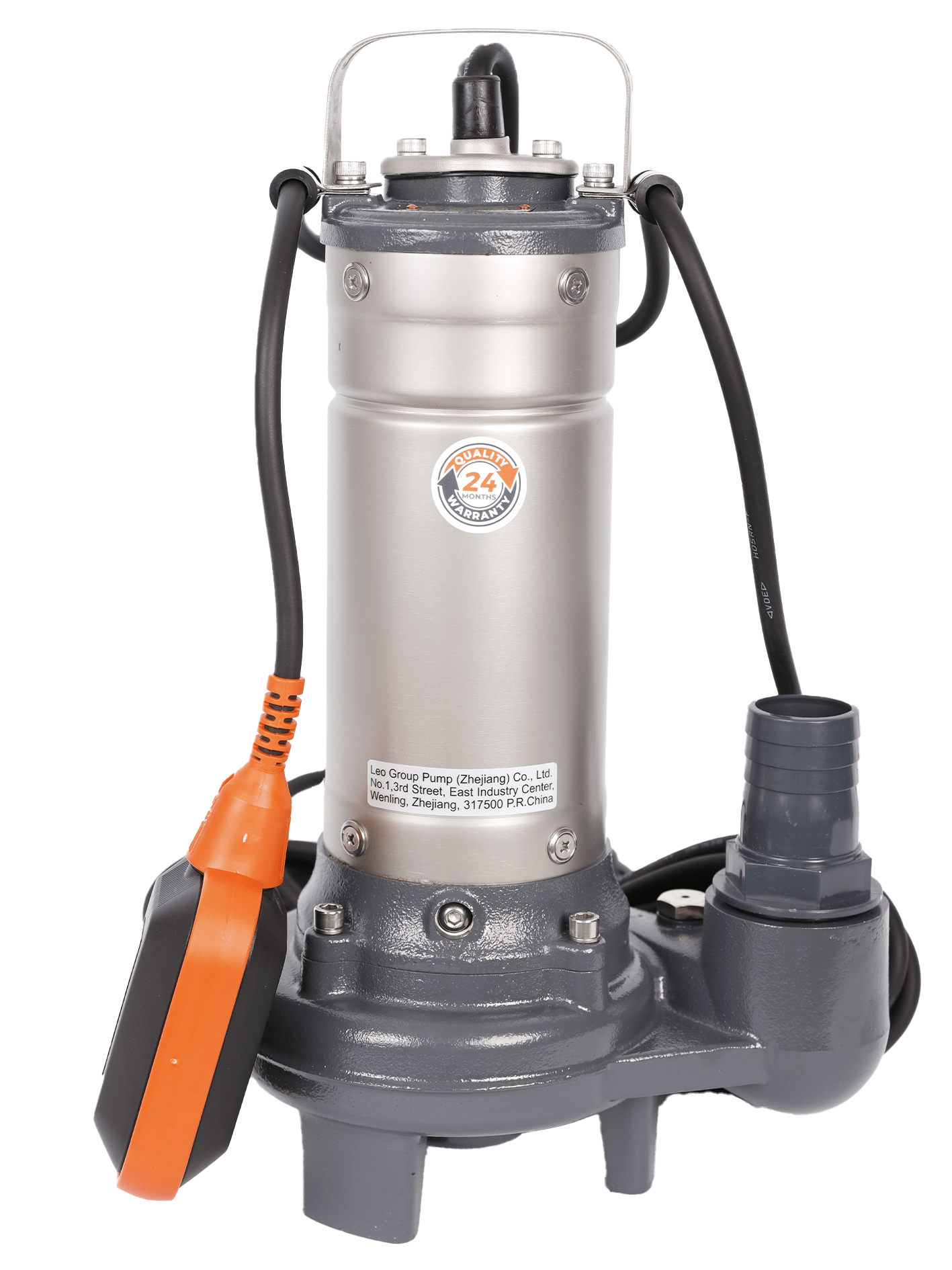

The submersible sludge pump with modern design is economical and reliable. See more

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
6
Maximum immersion depth [m]
5

Show all Tech Specs

on demand check availability

151.66 € VAT included

On demand

Register your business and get the benefits of a user account. %

Brand:
LEO
Category:
Wastewater pumps
Product No.:
ZB00068422
Sale group:
CELEO
EAN:
8596455038696
Manuf. No.:
LSWM50A

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00068421
    • NO
    • YES
    • 6
    • 5
    • 3
    • 0.25
    • integrated
    • submersible
    • 200
    • 9
    • cast iron
    • NO
    • YES
    • 15
    • NO
    • NO
    • X8
    • NO
    • 230
    • 6/4
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 121.35 €
    • Check availability
    • ZB00068422
    • NO
    • YES
    • 6
    • 5
    • 3.50
    • 0.37
    • integrated
    • submersible
    • 216
    • 11
    • cast iron
    • NO
    • YES
    • 20
    • NO
    • NO
    • X8
    • NO
    • 230
    • 6/4
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 151.66 €
    • Check availability
    • ZB00066873
    • NO
    • YES
    • 6
    • 5
    • 4.50
    • 0.55
    • integrated
    • submersible
    • 266
    • 13.50
    • cast iron
    • NO
    • YES
    • 25
    • NO
    • NO
    • X8
    • NO
    • 230
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 179.70 €
    • Check availability
    • ZB00068414
    • NO
    • YES
    • 10
    • 5
    • 5,50
    • 0,75
    • integrated
    • submersible
    • 316
    • 17
    • cast iron
    • NO
    • YES
    • 25
    • NO
    • NO
    • X8
    • NO
    • 230
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 215.36 €
    • Check availability
    • ZB00068415
    • NO
    • YES
    • 10
    • 5
    • 6
    • 1.10
    • integrated
    • submersible
    • 433
    • 13.50
    • cast iron
    • NO
    • YES
    • 30
    • NO
    • NO
    • X8
    • NO
    • 230
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 250.21 €
    • Check availability
    • ZB00068416
    • NO
    • YES
    • 10
    • 5
    • 8.50
    • 1.50
    • integrated
    • submersible
    • 533
    • 19
    • cast iron
    • NO
    • YES
    • 30
    • NO
    • NO
    • X8
    • NO
    • 230
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 318.74 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00068421 Sale group: CELEO EAN: 8596455038689 Manuf. No.: LSWM30A

on demand
check availability
Product availability
  • central warehouse 0 pcs

121.35 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
6
Maximum immersion depth [m]
5
Maximum current [A]
3
Power output - P2 [kW]
0.25
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
200
Maximum head [m]
9
Impeller material
cast iron
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
15
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4

Product No.: ZB00068422 Sale group: CELEO EAN: 8596455038696 Manuf. No.: LSWM50A

on demand
check availability
Product availability
  • central warehouse 0 pcs

151.66 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
6
Maximum immersion depth [m]
5
Maximum current [A]
3.50
Power output - P2 [kW]
0.37
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
216
Maximum head [m]
11
Impeller material
cast iron
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
20
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4
You are viewing this variant

Product No.: ZB00066873 Sale group: CELEO EAN: 8596455038641 Manuf. No.: LSWM75A

on demand
check availability
Product availability
  • central warehouse 0 pcs

179.70 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
6
Maximum immersion depth [m]
5
Maximum current [A]
4.50
Power output - P2 [kW]
0.55
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
266
Maximum head [m]
13.50
Impeller material
cast iron
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Off switch
NO
Input voltage [V]
230
Delivery port ["]
2

Product No.: ZB00068414 Sale group: CELEO EAN: 8596455038658 Manuf. No.: LSWM100A

on demand
check availability
Product availability
  • central warehouse 0 pcs

215.36 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
5,50
Power output - P2 [kW]
0,75
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
316
Maximum head [m]
17
Impeller material
cast iron
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Off switch
NO
Input voltage [V]
230
Delivery port ["]
2

Product No.: ZB00068415 Sale group: CELEO EAN: 8596455038665 Manuf. No.: LSWM150A

on demand
check availability
Product availability
  • central warehouse 0 pcs

250.21 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
6
Power output - P2 [kW]
1.10
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
433
Maximum head [m]
13.50
Impeller material
cast iron
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
30
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Off switch
NO
Input voltage [V]
230
Delivery port ["]
2

Product No.: ZB00068416 Sale group: CELEO EAN: 8596455038672 Manuf. No.: LSWM200A

on demand
check availability
Product availability
  • central warehouse 0 pcs

318.74 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
8.50
Power output - P2 [kW]
1.50
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
533
Maximum head [m]
19
Impeller material
cast iron
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
30
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Off switch
NO
Input voltage [V]
230
Delivery port ["]
2

Product description

The submersible sludge pump with a modern design is economical and reliable.

Use

  • Municipal waste water pumping
  • Domestic wastewater pumping
  • Pumping of river waste water
  • Irrigation of farms and farms
  • Pumping of waste water from administrative and commercial buildings
  • Pumping waste houses in the household
  • Pumping out water from the basement and during floods
  • For wastewater treatment plants
  • For irrigation systems
  • For agriculture

Instructions

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
6
Maximum immersion depth [m]
5
Maximum current [A]
3.50
Power output - P2 [kW]
0.37
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
216
Maximum head [m]
11
Impeller material
cast iron
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
20
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4
