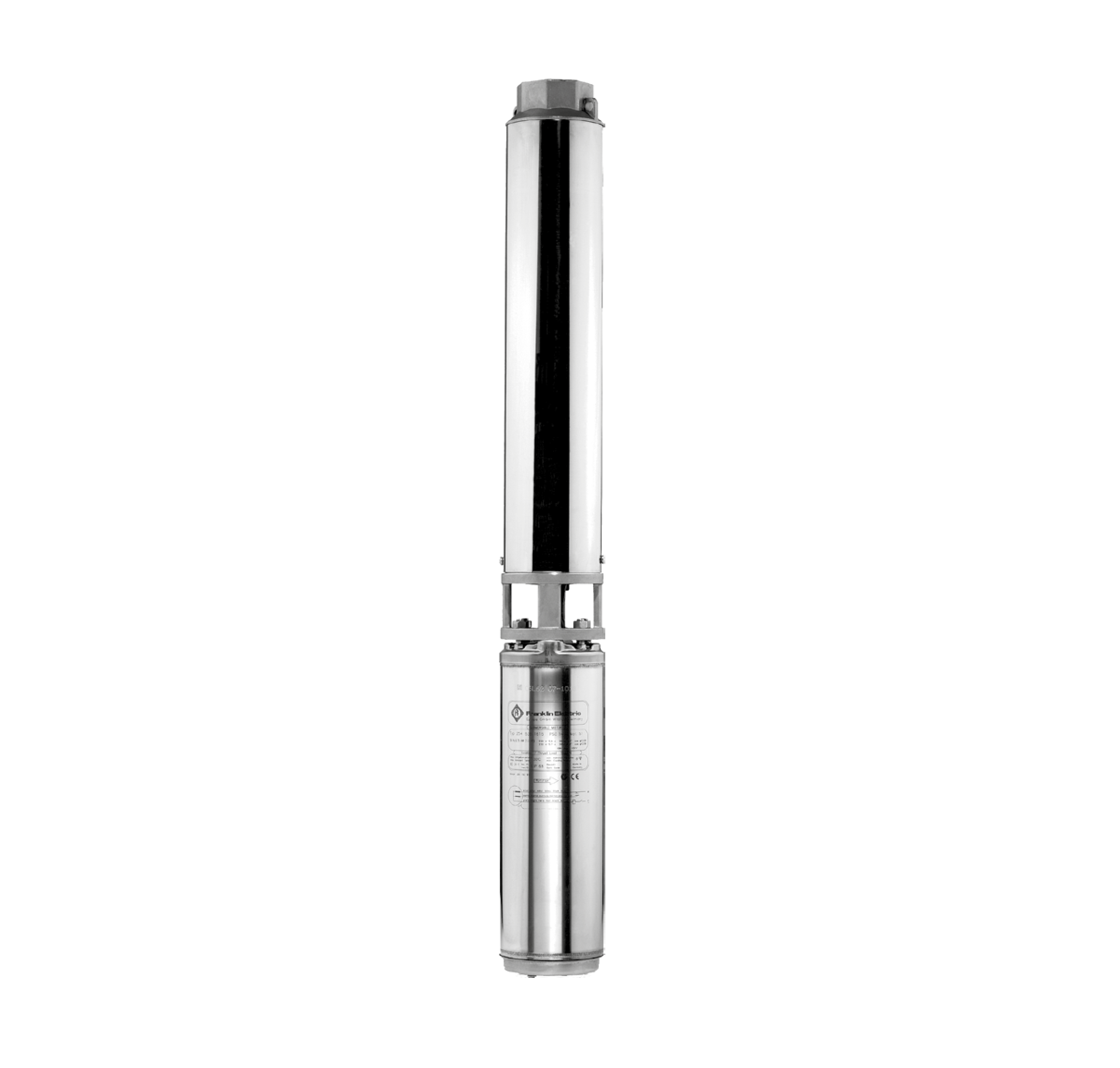

Franklin Electric 4 VS 7/44 4kW 400V submersible pump with Franklin Electric motor

4 "submersible pumps are characterized by proven components that are able to withstand the harshest environments and provide excellent performance for irrigation, water systems, water transfer systems, recirculation. See more

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
2.50
Maximum immersion depth [m]
150

Show all Tech Specs

on demand check availability

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us at 800 100 763 or email [email protected]

1,388.88 € VAT included

Not sellable online

Register your business and get the benefits of a user account. %

Brand:
Franklin Electric
Category:
Submersible borehole pumps
Product No.:
ZB00067604
Sale group:
CEFR
EAN:
8596455038252

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Rated flow [l/m]
  • Power output - P2 [kW]
  • Rated head [m]
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Pump diameter ["]
  • Speed ​​control
  • Protection [IP]
  • Off switch
  • Maximum borehole diameter [mm]
  • Input voltage [V]
  • Delivery port ["]
  • Check valve
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Franklin Electric 4 VS 7/11 1.1kW 400V submersible pump with Franklin Electric motor

Product No.: ZB00067570 Sale group: CEFR EAN: 8596455037910

on demand
check availability
Product availability
  • central warehouse 0 pcs

611.01 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
1.50
Maximum immersion depth [m]
150
Maximum current [A]
2.80
Rated flow [l/m]
125
Power output - P2 [kW]
1.10
Rated head [m]
32
Construction
centrifugal
Maximum flow [l/min]
150
Maximum head [m]
50
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
2
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
95
Input voltage [V]
3x400
Delivery port ["]
2

Franklin Electric 4 VS 7/16 1,5kW 400V submersible pump with Franklin Electric motor

Product No.: ZB00067578 Sale group: CEFR EAN: 8596455037996

on demand
check availability
Product availability
  • central warehouse 0 pcs

705.07 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
1.50
Maximum immersion depth [m]
150
Maximum current [A]
3.90
Rated flow [l/m]
125
Power output - P2 [kW]
1.50
Rated head [m]
45
Construction
centrifugal
Maximum flow [l/min]
150
Maximum head [m]
72
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
2
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
95
Input voltage [V]
3x400
Delivery port ["]
2

Franklin Electric 4 VS 7/24 2.2kW 400V submersible pump with Franklin Electric motor

Product No.: ZB00067587 Sale group: CEFR EAN: 8596455038085

on demand
check availability
Product availability
  • central warehouse 0 pcs

878.56 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
2.50
Maximum immersion depth [m]
150
Maximum current [A]
5.50
Rated flow [l/m]
125
Power output - P2 [kW]
2.20
Rated head [m]
68
Construction
centrifugal
Maximum flow [l/min]
150
Maximum head [m]
105
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
2
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
95
Input voltage [V]
3x400
Delivery port ["]
2

Franklin Electric 4 VS 7/32 3kW 400V submersible pump with Franklin Electric motor

Product No.: ZB00067594 Sale group: CEFR EAN: 8596455038153

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,001.21 €

Check availability

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
2.50
Maximum immersion depth [m]
150
Maximum current [A]
7.50
Rated flow [l/m]
125
Power output - P2 [kW]
3
Rated head [m]
90
Construction
centrifugal
Maximum flow [l/min]
150
Maximum head [m]
140
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
2
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
95
Input voltage [V]
3x400
Delivery port ["]
2

Franklin Electric 4 VS 7/40 3.7kW 400V submersible pump with Franklin Electric motor

Product No.: ZB00067598 Sale group: CEFR EAN: 8596455038191

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,288.23 €

Not sellable online

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
2.50
Maximum immersion depth [m]
150
Maximum current [A]
9
Rated flow [l/m]
125
Power output - P2 [kW]
3.70
Rated head [m]
107
Construction
centrifugal
Maximum flow [l/min]
150
Maximum head [m]
176
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
2
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
95
Input voltage [V]
3x400
Delivery port ["]
2

Franklin Electric 4 VS 7/44 4kW 400V submersible pump with Franklin Electric motor

Product No.: ZB00067604 Sale group: CEFR EAN: 8596455038252

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,388.88 €

Not sellable online

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
2.50
Maximum immersion depth [m]
150
Maximum current [A]
9.90
Rated flow [l/m]
125
Power output - P2 [kW]
4
Rated head [m]
124
Construction
centrifugal
Maximum flow [l/min]
150
Maximum head [m]
189
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
2
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
95
Input voltage [V]
3x400
Delivery port ["]
2
You are viewing this variant

Product description

APPLICATIONS

  • Municipal water works, fountains and waste water
  • Water distribution and pressure boosting
  • Irrigation and sprinkler systems, water treatment plants, filtration and reverse osmosis
  • Industrial cooling and processing
  • Mining industry, drainage and dewatering
  • Fire-fighting equipment
  • Water supply to and from tanks, reservoir and wells
  • Lifting and distribution of a wide range of liquids
  • Autoclave and cistern charge and discharge
  • Turf and landscape
  • Greenhouses and nurseries
  • Residential and farm wells and drainage
  • Food industry
  • General industry


FEATURES

  • Compact, reliable and suited to operate in horizontal position.
  • Built-in check valve to protect the pump against water hammer risk.
  • Floating impellers to grant a better performance and longer life for the pump against abrasion.
  • The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective.

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
2.50
Maximum immersion depth [m]
150
Maximum current [A]
9.90
Rated flow [l/m]
125
Power output - P2 [kW]
4
Rated head [m]
124
Construction
centrifugal
Maximum flow [l/min]
150
Maximum head [m]
189
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
2
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
95
Input voltage [V]
3x400
Delivery port ["]
2
