Drinking water certificate

previous next

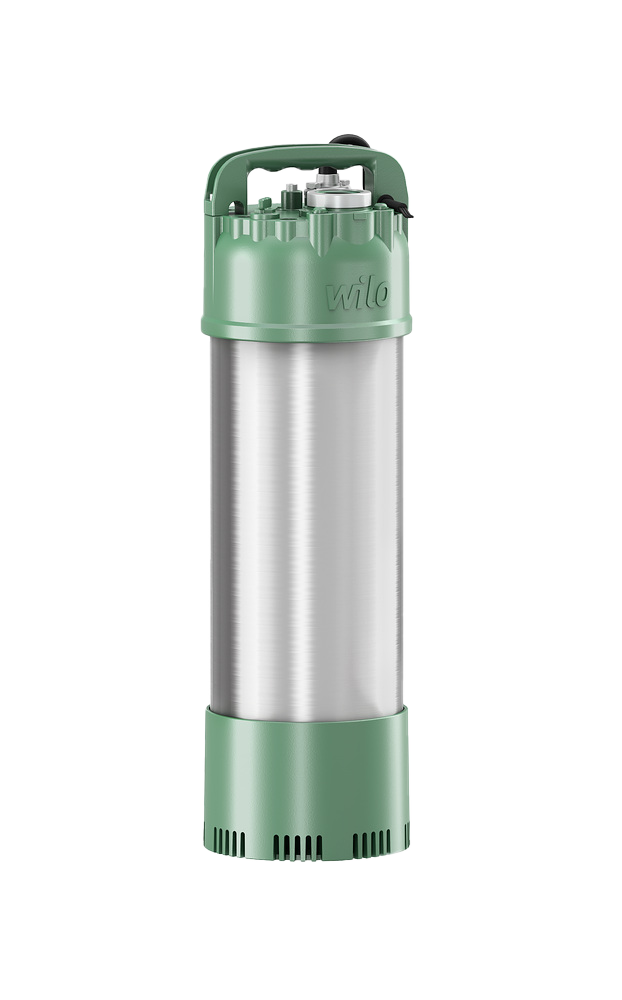

Submersible multistage pump with integrated control unit that switches on/off automatically when the tap is opened or closed. Suitable for rainwater harvesting, especially for irrigation. In addition to installation in retention tanks, the pump can also be installed in a dug well. In the basic version, no accessories are needed for the proper functioning of the pump. See more

Technical Specifications

Drinking water certificate
YES
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5

Show all Tech Specs

on demand check availability

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us at 800 100 763 or email [email protected]

434.38 € VAT included

Not sellable online

Register your business and get the benefits of a user account. %

Brand:
WILO
Category:
Wastewater pumps
Product No.:
ZB00069576
Sale group:
CEW05
EAN:
4062679227412
Manuf. No.:
6093855

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00069574
    • YES
    • YES
    • 10
    • 5
    • 4.90
    • 0.75
    • integrated
    • submersible
    • 110
    • 37.10
    • noryl
    • YES
    • NO
    • NO
    • 68
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 448.90 €
    • Check availability
    • ZB00069575
    • YES
    • YES
    • 10
    • 5
    • 6.40
    • 1
    • integrated
    • submersible
    • 111
    • 47.70
    • noryl
    • YES
    • NO
    • NO
    • 68
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 486.41 €
    • Check availability
    • ZB00069576
    • YES
    • YES
    • 10
    • 5
    • 4.90
    • 0.75
    • integrated
    • submersible
    • 110
    • 37.10
    • noryl
    • YES
    • NO
    • NO
    • 68
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 434.38 €
    • Not sellable online
    • ZB00069577
    • YES
    • YES
    • 10
    • 5
    • 6.40
    • 1
    • integrated
    • submersible
    • 111
    • 47.70
    • noryl
    • YES
    • NO
    • NO
    • 68
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 471.89 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00069574 Sale group: CEW05 EAN: 4062679227436 Manuf. No.: 6093857

on demand
check availability

448.90 €

Check availability

Drinking water certificate
YES
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
4.90
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
110
Maximum head [m]
37.10
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00069575 Sale group: CEW05 EAN: 4062679227443 Manuf. No.: 6093858

on demand
check availability

486.41 €

Check availability

Drinking water certificate
YES
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
6.40
Power output - P2 [kW]
1
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
111
Maximum head [m]
47.70
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00069576 Sale group: CEW05 EAN: 4062679227412 Manuf. No.: 6093855

on demand
check availability

434.38 €

Not sellable online

Drinking water certificate
YES
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
4.90
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
110
Maximum head [m]
37.10
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
You are viewing this variant

Product No.: ZB00069577 Sale group: CEW05 EAN: 4062679227429 Manuf. No.: 6093856

on demand
check availability

471.89 €

Check availability

Drinking water certificate
YES
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
6.40
Power output - P2 [kW]
1
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
111
Maximum head [m]
47.70
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product description

Submersible multistage pump with integrated control unit that switches on/off automatically when the tap is opened or closed.
Suitable for rainwater harvesting, especially for irrigation. In addition to installation in retention tanks, the pump can also be installed in a dug well. In the basic version, no accessories are needed for the proper functioning of the pump.

Basic features

  • Pump body and impellers made of composite plastic
  • Max. immersion 5 m
  • Max. switching speed 20 times per hour
  • Max. water temperature 40 °C

Pump includes:

  • Integrated factory set control unit
  • Dry-running protection
  • Thermal and current protection for the motor
  • Backflow preventer
  • Valve for self-venting hydraulics

SE version

The SE version does not suck from the bottom of the tank as in the standard type, but has a side suction which, by installing a suction hose and inlet filter, allows clean, sediment-free water to be sucked from the top of the surface.

Recommended accessories

  • Suction pressure hose - 2025973
  • Floating coarse suction filter - 2024959
  • Or floating fine suction filter - 2024961

Instructions

Technical Specifications

Drinking water certificate
YES
Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
4.90
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
110
Maximum head [m]
37.10
Impeller material
noryl
Dry run protection
YES
Float switch
NO
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
