CALPEDA
Calpeda TPM peripheral pumps 230V

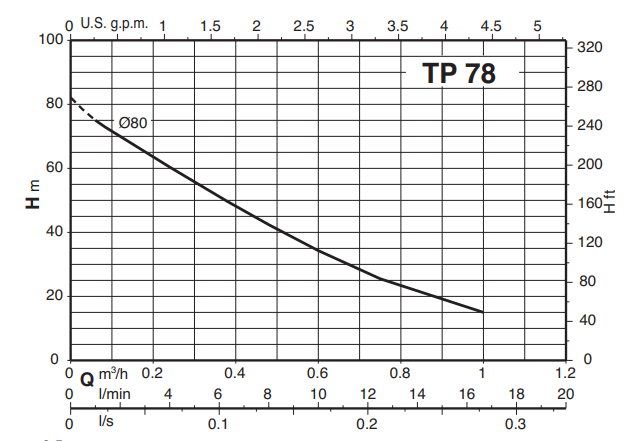

Calpeda TPM 78/A 230V 0,37kW 2900rpm
Technical Specifications
- Pump design
- horizontal
- Drinking water certificate
- NO
- Maximum current [A]
- 1,30
- Power output - P2 [kW]
- 0,37
- Brand:
- CALPEDA
- Category:
- Horizontal surface pumps
- Product No.:
- ZB00001456
- Sale group:
- CECP
- EAN:
- 8030485009870
- Manuf. No.:
- 70120060000
Product variants
-
- Calpeda TPM 78/A 230V 0,37kW 2900rpm
- ZB00001456
- horizontal
- NO
- 1,30
- 0,37
- NO
- monoblock
- 16
- 75
- brass
- NO
- NO
- 1/2
- 7
- 55
- NO
- 230
- 1/2
-
Product availability
- central warehouse 0 pcs
- 298.64 €
- Check availability
-
- Calpeda TPM 80E 230V 0,75kW 2900rpm
- ZB00014012
- horizontal
- NO
- YES
- 5,80
- 0,75
- integrated
- monoblock
- 31,50
- 90
- brass
- NO
- NO
- 3/4
- 7
- 55
- NO
- 230
- 3/4
-
Product availability
- central warehouse 0 pcs
- 503.40 €
- Check availability
Variant Product No.
Availability
Price (VAT incl.)
Calpeda TPM 78/A 230V 0,37kW 2900rpm
Product No.: ZB00001456 Sale group: CECP EAN: 8030485009870 Manuf. No.: 70120060000
298.64 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Maximum current [A]
- 1,30
- Power output - P2 [kW]
- 0,37
- Capacitor
- NO
- Construction
- monoblock
- Maximum flow [l/min]
- 16
- Maximum head [m]
- 75
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 1/2
- Maximum suction lift [m]
- 7
- Protection [IP]
- 55
- Off switch
- NO
- Input voltage [V]
- 230
- Delivery port ["]
- 1/2
You are viewing this variant

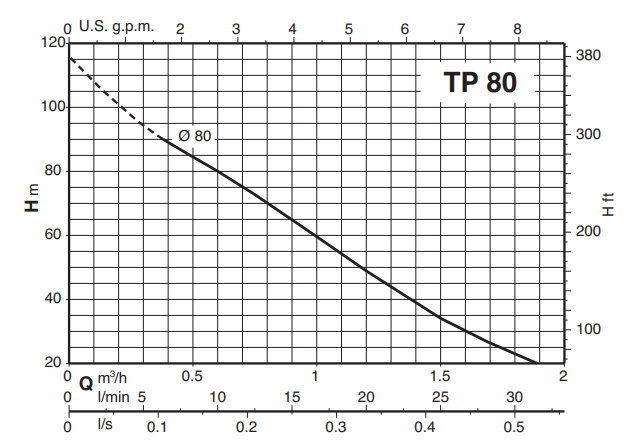

Calpeda TPM 80E 230V 0,75kW 2900rpm
Product No.: ZB00014012 Sale group: CECP Manuf. No.: 70100072000
503.40 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- YES
- Maximum current [A]
- 5,80
- Power output - P2 [kW]
- 0,75
- Capacitor
- integrated
- Construction
- monoblock
- Maximum flow [l/min]
- 31,50
- Maximum head [m]
- 90
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 3/4
- Maximum suction lift [m]
- 7
- Protection [IP]
- 55
- Off switch
- NO
- Input voltage [V]
- 230
- Delivery port ["]
- 3/4
Product description
Construction

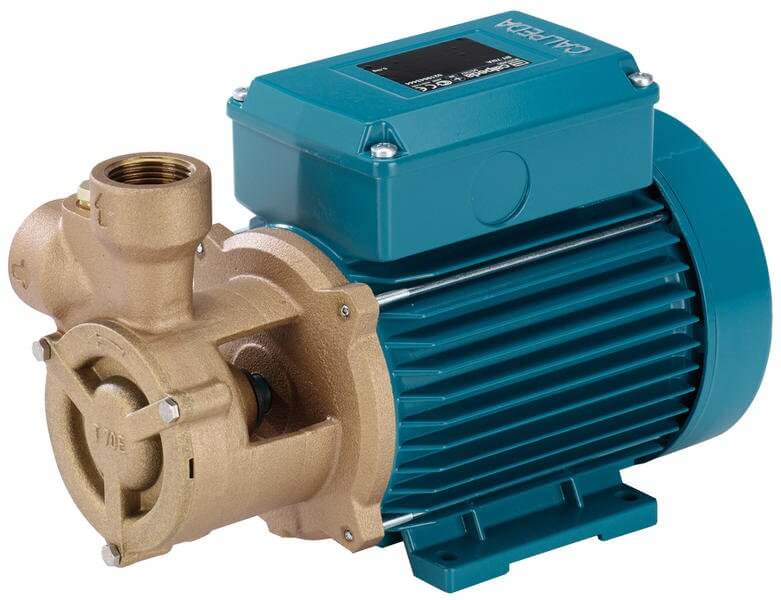

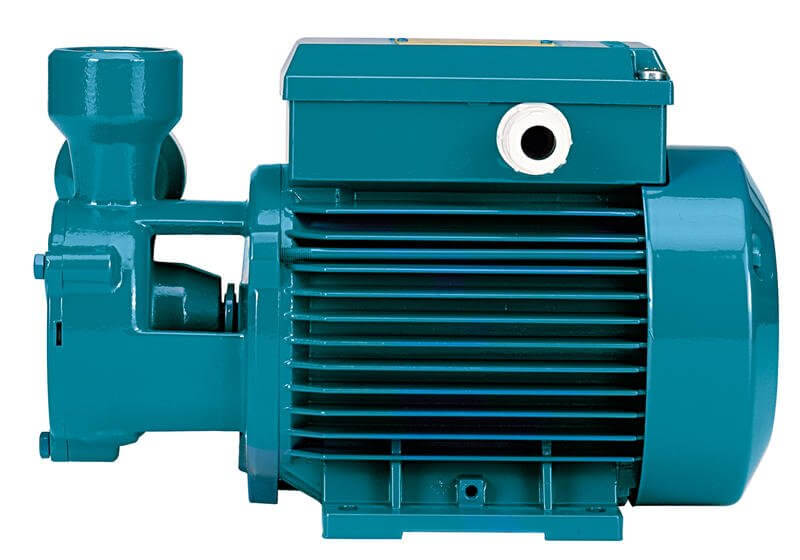

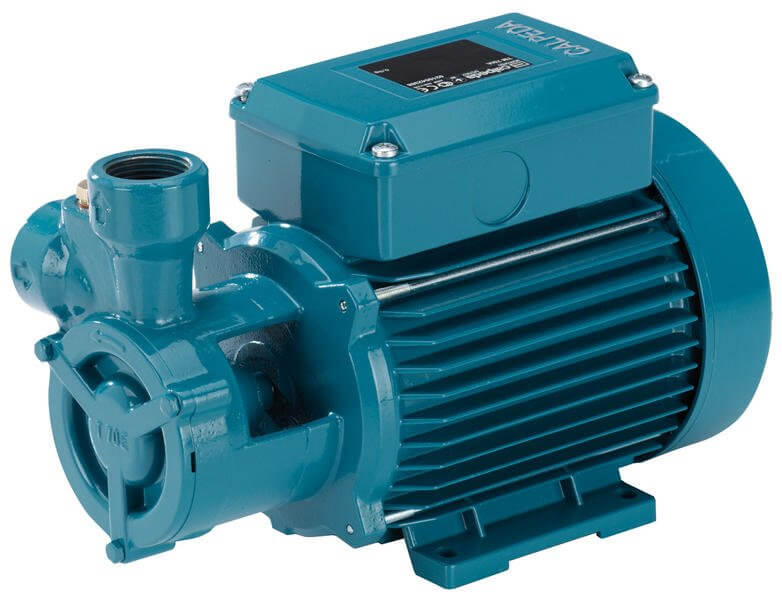

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.
T, TP: version with pump casing and lanter bracket in cast iron.
B-T, B-TP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Applications
- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
- For increasing network pressure (follow local specifications).
- For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.
