Calpeda NM4 40/16A/C 230/400V 0,75kW 1450rpm

Close Coupled Centrifugal Pumps (n = 1450 rpm) See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.90

Show all Tech Specs

on demand check availability

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us at 800 100 763 or email [email protected]

802.25 € VAT included

Not sellable online

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00001459
Sale group:
CECP
EAN:
8030485899624
Manuf. No.:
6090014300000

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NM4 40/16C/A 230/400V 0,37kW 1450rpm

Product No.: ZB00001555 Sale group: CECP Manuf. No.: 6090010200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

724.17 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
0.95
Power output - P2 [kW]
0.37
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
350
Maximum head [m]
6
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Calpeda NM4 40/16B/A 230/400V 0,55kW 1450rpm

Product No.: ZB00001504 Sale group: CECP EAN: 8030485655398 Manuf. No.: 6090012200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

766.69 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.50
Power output - P2 [kW]
0.55
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
400
Maximum head [m]
8
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Calpeda NM4 40/16A/C 230/400V 0,75kW 1450rpm

Product No.: ZB00001459 Sale group: CECP EAN: 8030485899624 Manuf. No.: 6090014300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

802.25 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.90
Power output - P2 [kW]
0.75
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
450
Maximum head [m]
10
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40
You are viewing this variant

Calpeda NM4 40/20B/B 230/400V 1,1kW 1450rpm

Product No.: ZB00025834 Sale group: CECP EAN: 8030485942375 Manuf. No.: 6090016300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

971.73 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
2.90
Power output - P2 [kW]
1.10
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
350
Maximum head [m]
13
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Calpeda NM4 40/20A/B 230/400V 1,1kW 1450rpm

Product No.: ZB00013983 Sale group: CECP EAN: 8030485940333 Manuf. No.: 6090018300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

971.73 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
2.90
Power output - P2 [kW]
1.10
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
350
Maximum head [m]
15
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Calpeda NM4 40/25C/C 230/400V 1,5kW 1450rpm

Product No.: ZB00025836 Sale group: CECP Manuf. No.: 6090020300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,280.93 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.50
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
450
Maximum head [m]
17
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Calpeda NM4 40/25B/C 230/400V 2,2kW 1450rpm

Product No.: ZB00001527 Sale group: CECP EAN: 8030485929055 Manuf. No.: 6090024300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,384.19 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
5
Power output - P2 [kW]
2.20
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
500
Maximum head [m]
21
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Calpeda NM4 40/25A/B 230/400V 3,0kW 1450rpm

Product No.: ZB00025835 Sale group: CECP EAN: 8030485587569 Manuf. No.: 6090028200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,563.28 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
6.40
Power output - P2 [kW]
3
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
500
Maximum head [m]
23
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Product description

Construction

Close-coupled centrifugal pumps; electric motor with extended shaft directly connected to the pump up to 15 kW, new bracket construction for standard motors (Stub-shaft construction) from 18,5 to 75 kW with integrated thrust bearing.
Pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733 with additional sizes for completion.

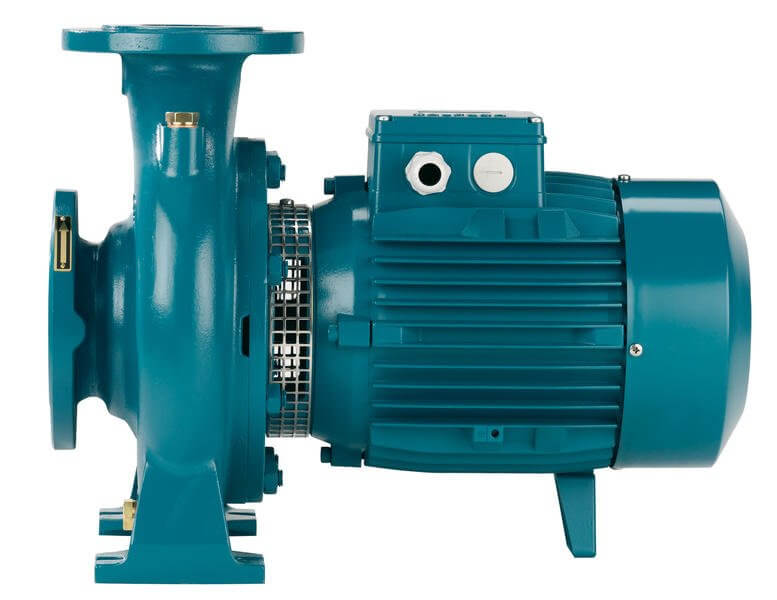

NM4: version with pump casing and lanter bracket in cast iron.

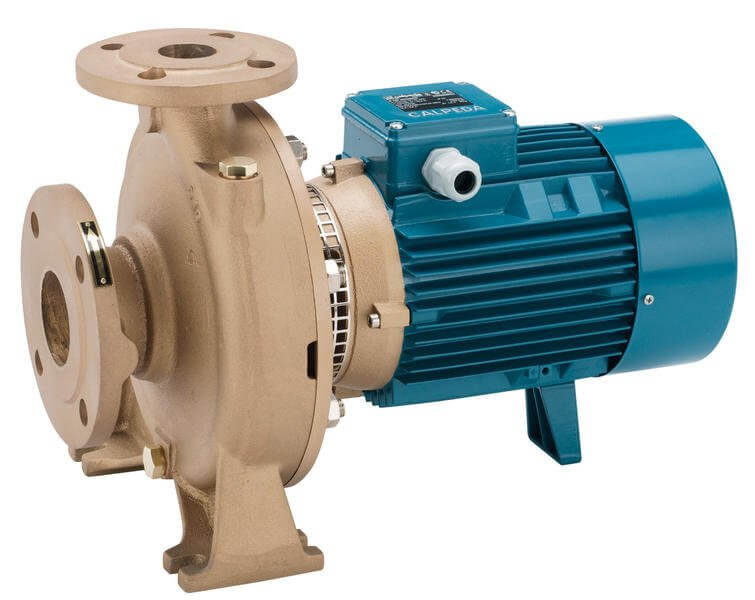

B-NM4: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted).


Connections

NM4 25/… : Threaded ports ISO 228.
from NM4 32/.. to NMS4 150/.. : Flanges according to PN 10, EN 1092-2.

Counter-flanges

(on request):
from NM4 32/.. to NM4 50/.. : Screwed flanges EN 1092-1, PN 16.
from NM4 32/.. to NMS4 150/.. : Flanges for welding EN 1092-1, PN 10.

Applications

- For clean liquids without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0,2%).
- For water supply.
- For heating, air conditioning, cooling and circulation plants.
- For civil and industrial applications.
- When low noise operating is required.
- For irrigation.

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.90
Power output - P2 [kW]
0.75
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
450
Maximum head [m]
10
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN65
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40
