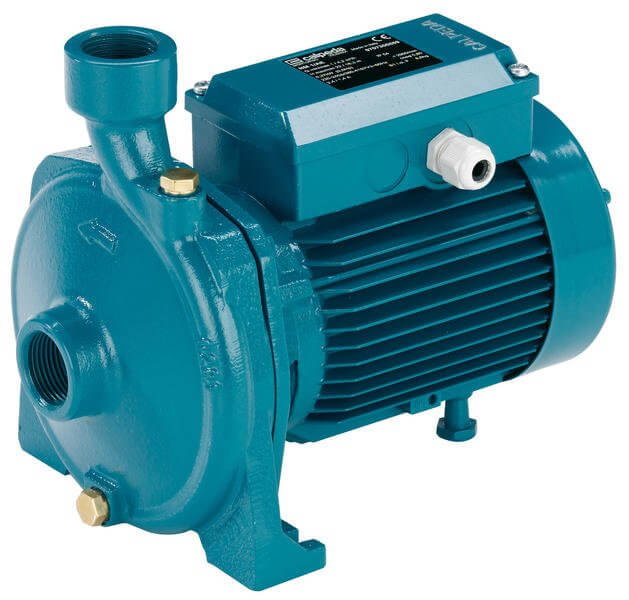

Calpeda NM 17 close coupled centrifugal pumps with threaded ports 3x400V
-
Calpeda NM 17 close coupled centrifugal pumps with threaded ports 3x400V -
Calpeda NM 17 close coupled centrifugal pumps with threaded ports 3x400V -
Calpeda NM 17 close coupled centrifugal pumps with threaded ports 3x400V -
Calpeda NM 17 close coupled centrifugal pumps with threaded ports 3x400V
previous next
Technical Specifications
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 2.70
624.49 € VAT included
Not sellable online
- Brand:
- CALPEDA
- Category:
- Horizontal surface pumps
- Product No.:
- ZB00014029
- Sale group:
- CECP
- EAN:
- 8030485900887
- Manuf. No.:
- 6000025020000
Product variants
-
- Calpeda NM 17/H/A 230/400V 1,1kW 2900rpm
- ZB00014029
- horizontal
- NO
- NO
- 2.70
- 1.10
- NO
- monoblock
- 900
- 10
- brass
- NO
- NO
- 2 1/2
- 7
- 54
- NO
- 3x400
- 2 1/2
-
Product availability
- central warehouse 0 pcs
- 624.49 €
- Not sellable online
-
- Calpeda NM 17/G/A 230/400V 1,5kW 2900rpm
- ZB00014071
- horizontal
- NO
- NO
- 4.30
- 1.50
- NO
- monoblock
- 1,000
- 12
- brass
- NO
- NO
- 2 1/2
- 7
- 54
- NO
- 3x400
- 2 1/2
-
Product availability
- central warehouse 0 pcs
- 658.16 €
- Not sellable online
-
- Calpeda NM 17/F/B 230/400V 2,2kW 2900rpm
- ZB00001471
- horizontal
- NO
- NO
- 5.30
- 2.20
- NO
- monoblock
- 1,100
- 16
- brass
- NO
- NO
- 2 1/2
- 7
- 54
- NO
- 3x400
- 2 1/2
-
Product availability
- central warehouse 0 pcs
- 751.54 €
- Not sellable online
-
- Calpeda NM 17/D/A 230/400V 3,0kW 2900rpm
- ZB00001470
- horizontal
- NO
- NO
- 6.60
- 3
- NO
- monoblock
- 1,100
- 18
- brass
- NO
- NO
- 2 1/2
- 7
- 54
- NO
- 3x400
- 2 1/2
-
Product availability
- central warehouse 0 pcs
- 861.35 €
- Not sellable online
Variant Product No.
Availability
Price (VAT incl.)
Calpeda NM 17/H/A 230/400V 1,1kW 2900rpm
Product No.: ZB00014029 Sale group: CECP EAN: 8030485900887 Manuf. No.: 6000025020000
624.49 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 2.70
- Power output - P2 [kW]
- 1.10
- Capacitor
- NO
- Construction
- monoblock
- Maximum flow [l/min]
- 900
- Maximum head [m]
- 10
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 2 1/2
You are viewing this variant
Calpeda NM 17/G/A 230/400V 1,5kW 2900rpm
Product No.: ZB00014071 Sale group: CECP EAN: 8030485896432 Manuf. No.: 6000025120000
658.16 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 4.30
- Power output - P2 [kW]
- 1.50
- Capacitor
- NO
- Construction
- monoblock
- Maximum flow [l/min]
- 1,000
- Maximum head [m]
- 12
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 2 1/2
Calpeda NM 17/F/B 230/400V 2,2kW 2900rpm
Product No.: ZB00001471 Sale group: CECP EAN: 8030485909897 Manuf. No.: 6000025330000
751.54 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 5.30
- Power output - P2 [kW]
- 2.20
- Capacitor
- NO
- Construction
- monoblock
- Maximum flow [l/min]
- 1,100
- Maximum head [m]
- 16
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 2 1/2
Calpeda NM 17/D/A 230/400V 3,0kW 2900rpm
Product No.: ZB00001470 Sale group: CECP EAN: 8030485642534 Manuf. No.: 6000025520000
861.35 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 6.60
- Power output - P2 [kW]
- 3
- Capacitor
- NO
- Construction
- monoblock
- Maximum flow [l/min]
- 1,100
- Maximum head [m]
- 18
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 2 1/2
Product description
Construction
Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.
NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).
Connections: threaded ports ISO 228/1 (BS 2779).
NM, NMD: version with pump casing and lanter bracket in cast iron.
B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Applications
For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation
Instructions
Technical Specifications
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 2.70
- Power output - P2 [kW]
- 1.10
- Capacitor
- NO
- Construction
- monoblock
- Maximum flow [l/min]
- 900
- Maximum head [m]
- 10
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 2 1/2
