Calpeda NM 10/S/A 230/400V 1,5kW 2900rpm

Close Coupled Centrifugal Pumps with threaded ports See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
4.30

Show all Tech Specs

on demand check availability

Goods cannot be purchased online. These are either oversized goods with an individual price of transport or an assortment that can only be purchased on demand. If you are interested in the goods, contact us at 800 100 763 or email [email protected]

537.11 € VAT included

Not sellable online

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00001557
Sale group:
CECP
EAN:
8030485896999
Manuf. No.:
6000013200000

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NM 10/FE 230/400V 0,55kW 2900rpm

Product No.: ZB00001469 Sale group: CECP EAN: 8030485000334 Manuf. No.: 6000010100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

441.60 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
2.30
Power output - P2 [kW]
0.55
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
250
Maximum head [m]
13
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
2
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
5/4

Calpeda NM 10/DE 230/400V 0,75kW 2900rpm

Product No.: ZB00013998 Sale group: CECP EAN: 8030485000341 Manuf. No.: 6000011100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

469.72 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
2.30
Power output - P2 [kW]
0.75
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
250
Maximum head [m]
18
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
2
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
5/4

Calpeda NM 10/S/A 230/400V 1,5kW 2900rpm

Product No.: ZB00001557 Sale group: CECP EAN: 8030485896999 Manuf. No.: 6000013200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

537.11 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
4.30
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
400
Maximum head [m]
24
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
2
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
5/4
You are viewing this variant

Product description

Construction

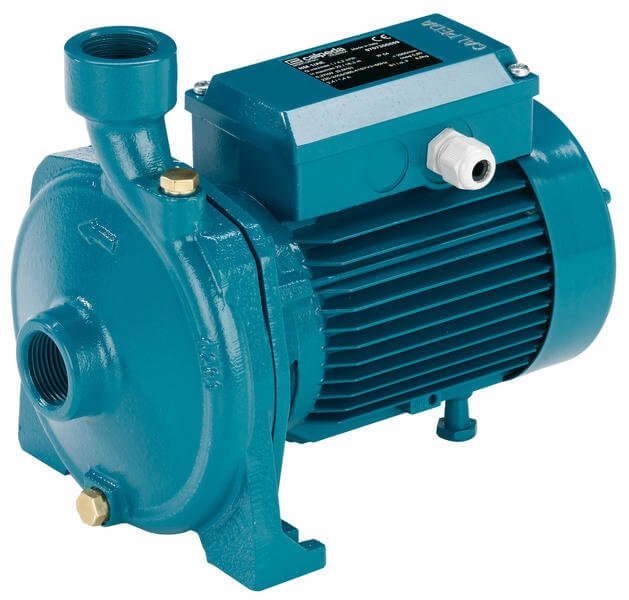

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.

NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).

Connections: threaded ports ISO 228/1 (BS 2779).

NM, NMD: version with pump casing and lanter bracket in cast iron.

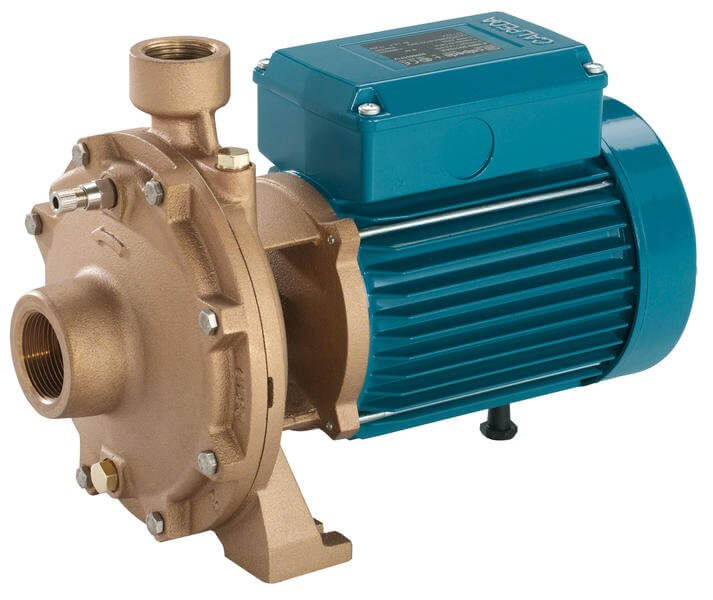

B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
4.30
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
400
Maximum head [m]
24
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
2
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
5/4
