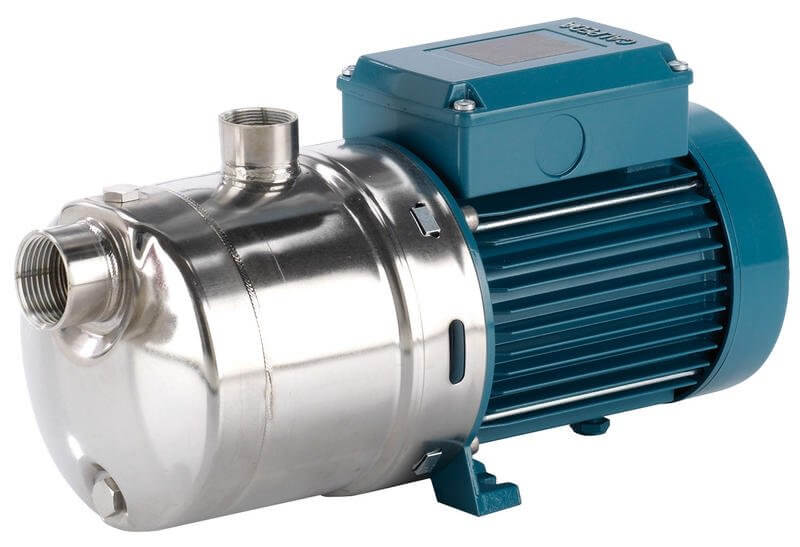

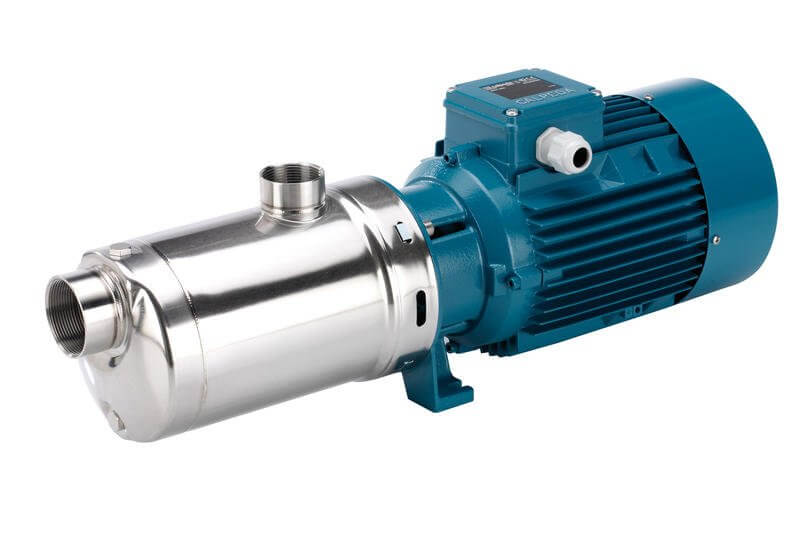

Calpeda MXHM 2xx horizontal multi-stage close coupled pumps in stainless steel 230V Calpeda MXHM 2xx horizontal multi-stage close coupled pumps in stainless steel 230V

Calpeda MXHM 202E 230V 0,33kW

Horizontal Multi-Stage Close Coupled Pumps in stainless steel See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
2.30

Show all Tech Specs

in stock 8 pcs

272.26 € VAT included

the price includes a recycling fee

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
ZB00001605
Sale group:
CECP
EAN:
8030485008552
Manuf. No.:
62310021000

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda MXHM 202E 230V 0,33kW

Product No.: ZB00001605 Sale group: CECP EAN: 8030485008552 Manuf. No.: 62310021000

in stock
8 pcs
Product availability
  • central warehouse 8 pcs

272.26 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
2.30
Power output - P2 [kW]
0.33
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
80
Maximum head [m]
22
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
You are viewing this variant

Calpeda MXHM 203E 230V 0,45kW

Product No.: ZB00001439 Sale group: CECP EAN: 8030485008569 Manuf. No.: 62310031000

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

292.42 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
3
Power output - P2 [kW]
0.45
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
80
Maximum head [m]
33
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00070324 Sale group: CECP Manuf. No.: 62340041000

on demand
check availability

357.44 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
4.20
Power output - P2 [kW]
0.55
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
80
Maximum head [m]
45
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Calpeda MXHM 205/A 230V 0,75kW

Product No.: ZB00001441 Sale group: CECP Manuf. No.: 62340051000

in stock
10 pcs
Product availability
  • central warehouse 10 pcs

404.71 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
5.40
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
80
Maximum head [m]
57
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00070315 Sale group: CECP Manuf. No.: 62340061000

on demand
check availability

691.10 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
7.40
Power output - P2 [kW]
1.10
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
80
Maximum head [m]
69
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product description

Construction

Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel.
Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top.
Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box).

Applications

- For water supply.
- For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
- Universal pump, for civil and industrial applications, for garden use and irrigation.



Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
2.30
Power output - P2 [kW]
0.33
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
80
Maximum head [m]
22
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
