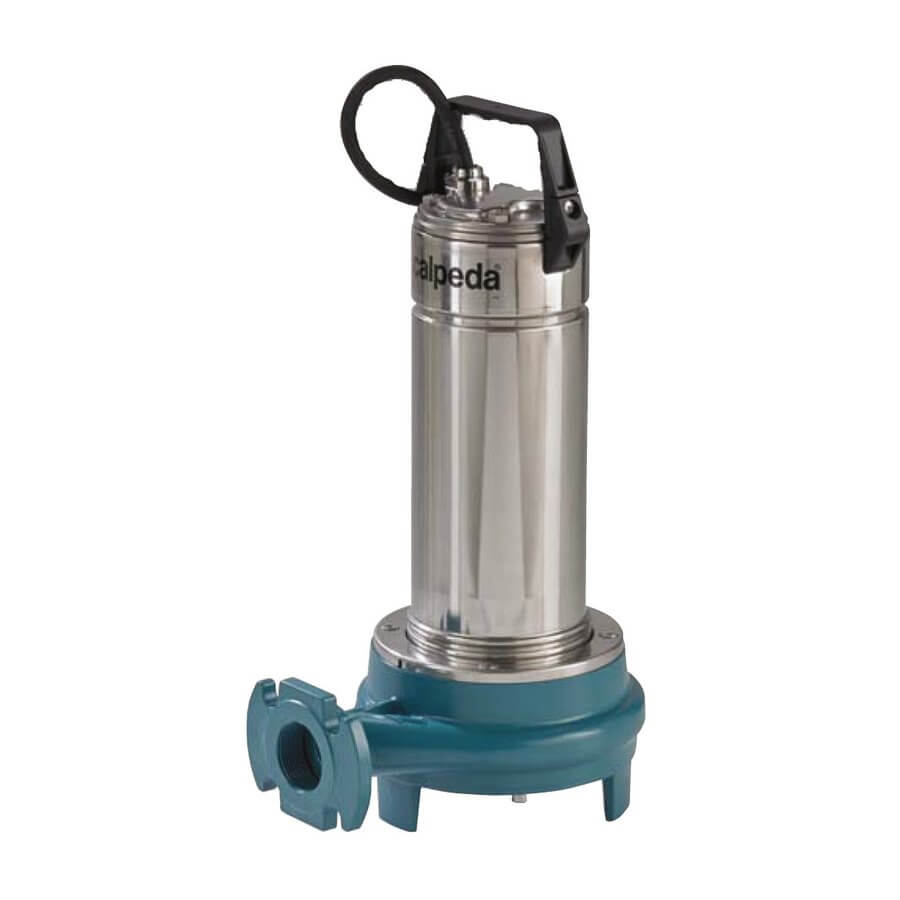

Calpeda GQG 6-18 400V 0,9kw sewage pump with high power grinder

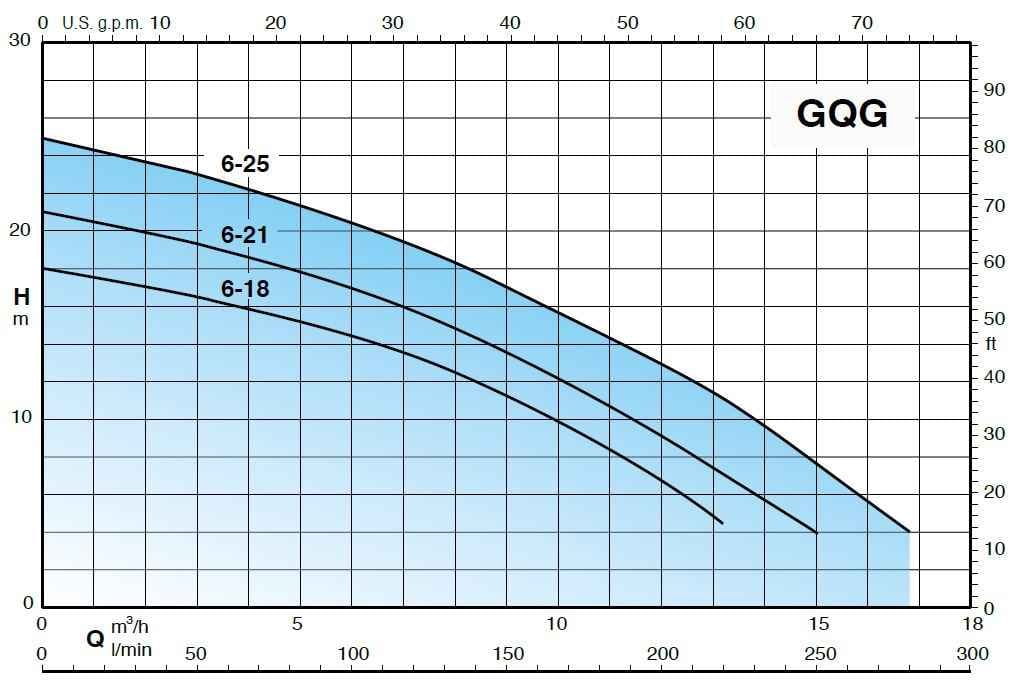

Submersible pumps with high power grinder FLOW 3 / 17 mc/h HEAD 4 / 25 m  POWER 0.9 / 1.5 kW

See more

Technical Specifications

Automatic thermal protection
NO
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
2.30

Show all Tech Specs

in stock 9 pcs

892.64 € VAT included

the price includes a recycling fee

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
ZB00040273
Sale group:
CEPJ
EAN:
8030485811053
Manuf. No.:
70T41060000

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda GQG 6-18 400V 0,9kw sewage pump with high power grinder

Product No.: ZB00040273 Sale group: CEPJ EAN: 8030485811053 Manuf. No.: 70T41060000

in stock
9 pcs
Product availability
  • central warehouse 9 pcs

892.64 €

Automatic thermal protection
NO
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
2.30
Power output - P2 [kW]
0.90
Capacitor
NO
Construction
submersible
Maximum flow [l/min]
220
Maximum head [m]
18
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
YES
Protection [IP]
X8
Input voltage [V]
3x400
Delivery port ["]
6/4
You are viewing this variant

Calpeda GQG 6-21 400V 1,1kW sewage pump with high power grinder

Product No.: ZB00040274 Sale group: CEPJ EAN: 8030485811060 Manuf. No.: 70T41110000

in stock
7 pcs
Product availability
  • central warehouse 7 pcs

949.64 €

Automatic thermal protection
NO
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
2.80
Power output - P2 [kW]
1.10
Capacitor
NO
Construction
submersible
Maximum flow [l/min]
250
Maximum head [m]
21
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
YES
Protection [IP]
X8
Input voltage [V]
3x400
Delivery port ["]
6/4

Calpeda GQG 6-25 400V 1,5kW sewage pump with high power grinder

Product No.: ZB00040275 Sale group: CEPJ EAN: 8030485811077 Manuf. No.: 70T41160000

in stock
10 pcs
Product availability
  • central warehouse 10 pcs

1,164.09 €

Automatic thermal protection
NO
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
3.80
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
submersible
Maximum flow [l/min]
280
Maximum head [m]
25
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
YES
Protection [IP]
X8
Input voltage [V]
3x400
Delivery port ["]
6/4

Product description

Construction

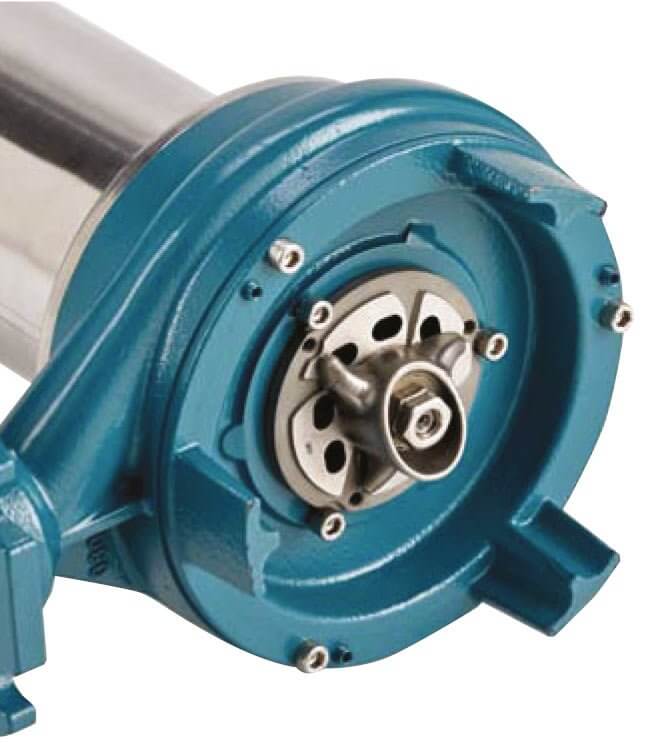

Submersible pumps with high power grinder, with horizontal flanged and threaded delivery port (DN 32 – G 1 1/2”).
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

Application

Suitable for pumping waste water containing long filamentous, paper and textile materials and organics
They are particularly suitable for use in domestic, residential and industrial installations
Solid passage 6 mm

Instructions

Technical Specifications

Automatic thermal protection
NO
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
2.30
Power output - P2 [kW]
0.90
Capacitor
NO
Construction
submersible
Maximum flow [l/min]
220
Maximum head [m]
18
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
YES
Protection [IP]
X8
Input voltage [V]
3x400
Delivery port ["]
6/4
