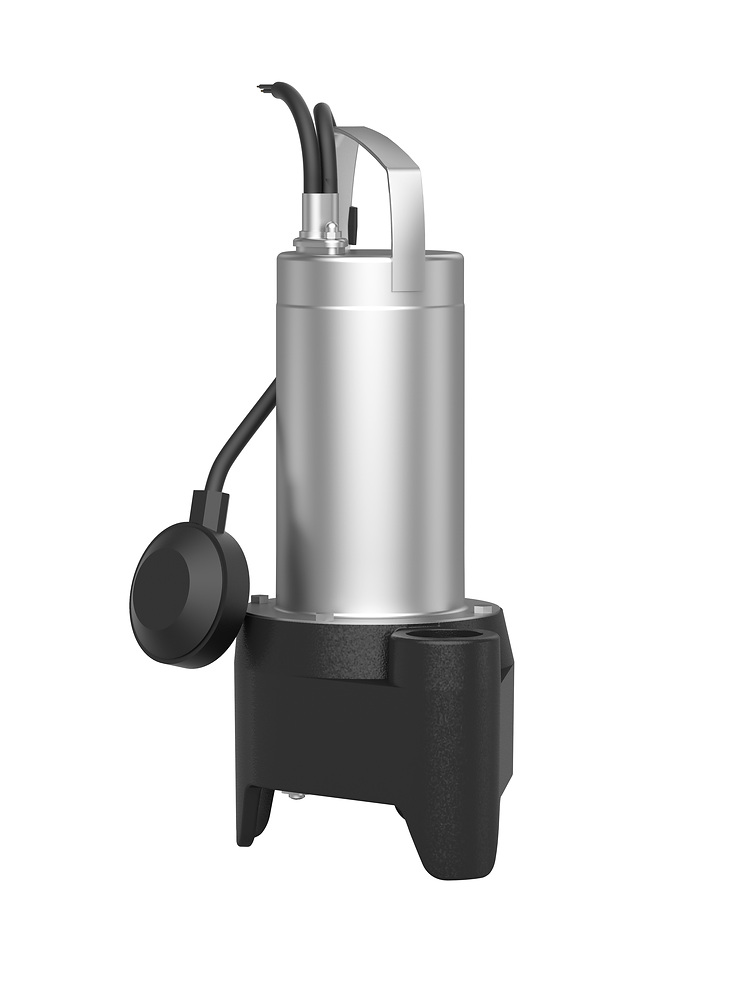

WILO REXA MINI3 slurry pump
WILO REXA MINI3 slurry pump
WILO REXA MINI3 slurry pump
Technical Specifications
- Automatic thermal protection
- YES
- Cable length [m]
- 5 - 10
- Maximum immersion depth [m]
- 2 - 20
- Maximum current [A]
- 3.30 - 4.70
from 552.96 € VAT included
- Brand:
- WILO
- Category:
- Wastewater pumps
- Product No.:
- MAS001447
Product variants
-
- WILO Rexa MINI3-V04.09 / M05-523 / A-10M slurry pump
- ZB00062990
- YES
- 10
- 20
- 3.30
- 0.50
- integrated
- submersible
- 317
- 9
- noryl
- NO
- YES
- 40
- NO
- YES
- 68
- 230
- 6/4
-
Product availability
- central warehouse 0 pcs
- 603.78 €
- Check availability
-
- WILO Rexa MINI3-V04.11 / M06-523 / A-10M slurry pump
- ZB00063014
- YES
- 10
- 20
- 4.10
- 0.60
- integrated
- submersible
- 350
- 11
- noryl
- NO
- YES
- 40
- NO
- 68
- 230
- 6/4
-
Product availability
- central warehouse 0 pcs
- 615.88 €
- Check availability
-
- WILO Rexa MINI3-V04.13/M08-523/A-5M kalové čerpadlo
- ZB00056239
- YES
- 5
- 2
- 4.70
- 0.75
- integrated
- submersible
- 366.60
- 13
- noryl
- NO
- YES
- 40
- NO
- NO
- 68
- 230
- 6/4
-
Product availability
- central warehouse 0 pcs
- 552.96 €
- Check availability
Variant Product No.
Availability
Price (VAT incl.)
WILO Rexa MINI3-V04.09 / M05-523 / A-10M slurry pump
Product No.: ZB00062990 Sale group: CEW07 EAN: 4048482948768 Manuf. No.: 3094009
603.78 €
- Automatic thermal protection
- YES
- Cable length [m]
- 10
- Maximum immersion depth [m]
- 20
- Maximum current [A]
- 3.30
- Power output - P2 [kW]
- 0.50
- Capacitor
- integrated
- Construction
- submersible
- Maximum flow [l/min]
- 317
- Maximum head [m]
- 9
- Impeller material
- noryl
- Dry run protection
- NO
- Float switch
- YES
- Maximum particle size [mm]
- 40
- Speed control
- NO
- Grinder
- YES
- Protection [IP]
- 68
- Input voltage [V]
- 230
- Delivery port ["]
- 6/4
WILO Rexa MINI3-V04.11 / M06-523 / A-10M slurry pump
Product No.: ZB00063014 Sale group: CEW07 EAN: 4048482948799 Manuf. No.: 3094012
615.88 €
- Automatic thermal protection
- YES
- Cable length [m]
- 10
- Maximum immersion depth [m]
- 20
- Maximum current [A]
- 4.10
- Power output - P2 [kW]
- 0.60
- Capacitor
- integrated
- Construction
- submersible
- Maximum flow [l/min]
- 350
- Maximum head [m]
- 11
- Impeller material
- noryl
- Dry run protection
- NO
- Float switch
- YES
- Maximum particle size [mm]
- 40
- Speed control
- NO
- Protection [IP]
- 68
- Input voltage [V]
- 230
- Delivery port ["]
- 6/4
WILO Rexa MINI3-V04.13/M08-523/A-5M kalové čerpadlo
Product No.: ZB00056239 Sale group: CEW07 EAN: 4048482948744 Manuf. No.: 3094007
552.96 €
- Automatic thermal protection
- YES
- Cable length [m]
- 5
- Maximum immersion depth [m]
- 2
- Maximum current [A]
- 4.70
- Power output - P2 [kW]
- 0.75
- Capacitor
- integrated
- Construction
- submersible
- Maximum flow [l/min]
- 366.60
- Maximum head [m]
- 13
- Impeller material
- noryl
- Dry run protection
- NO
- Float switch
- YES
- Maximum particle size [mm]
- 40
- Speed control
- NO
- Grinder
- NO
- Protection [IP]
- 68
- Input voltage [V]
- 230
- Delivery port ["]
- 6/4
Product description
Construction type
Submersible drainage sump pump for intermittent operation for fixed and mobile installation in wet environments.
Use
Drawing:
Sewage without faeces
Waste water
Note: If the pump is installed in a DrainLift WS 50 shaft, sewage can be pumped with faeces. The device is approved according to EN 12050-1.
Instructions
Technical Specifications
- Automatic thermal protection
- YES
- Cable length [m]
- 5 - 10
- Maximum immersion depth [m]
- 2 - 20
- Maximum current [A]
- 3.30 - 4.70
- Power output - P2 [kW]
- 0.50 - 0.75
- Capacitor
- integrated
- Construction
- submersible
- Maximum flow [l/min]
- 317 - 366.60
- Maximum head [m]
- 9 - 13
- Impeller material
- noryl
- Dry run protection
- NO
- Float switch
- YES
- Maximum particle size [mm]
- 40
- Speed control
- NO
- Grinder
- YES, , NO
- Protection [IP]
- 68
- Input voltage [V]
- 230
- Delivery port ["]
- 6/4
