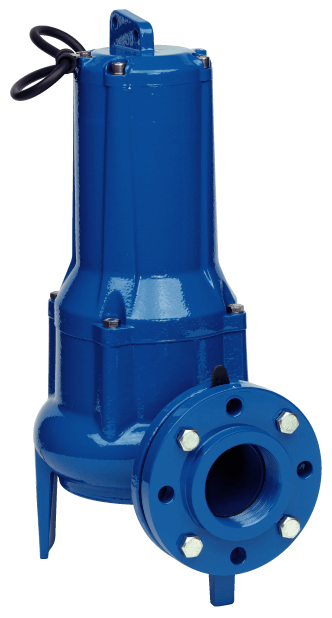

Submersible drainage pumps with plunged back impeller Vortex type, which allows free passage of suspended parts. Suitable in civil and industrial water systems, for cesspool drainage with oily or chemical liquids, for dirty waters with solid and particularly fibrous particles and for zootechnical waste waters. See more

on demand check availability

1,888.24 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Wastewater pumps
Product No.:
MAS000803

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Capacitor
  • Construction
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00036001
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 1,888.24 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

LIMITS OF USE


- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
Temperature max. liquid: 50°C (for other uses)
- Maximum immersion depth 20 mt.
(with a cable of the appropriate length)
- Grain size inlet Ø 70 mm
- Min. suction level 190 mm
- Continuous duty


ENGINE


2 pole induction motor in oil bath
- Three-phase 230/400V-50Hz
- Insulation Class F
- Protection IP 68


MATERIALS


- Motor body: Cast Iron
- Pump body: Cast Iron
- Impeller: Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Double mechanical seal
in oil chamber: Ceramic/Graphite/NBR
Silicon/Silicon/NBR
