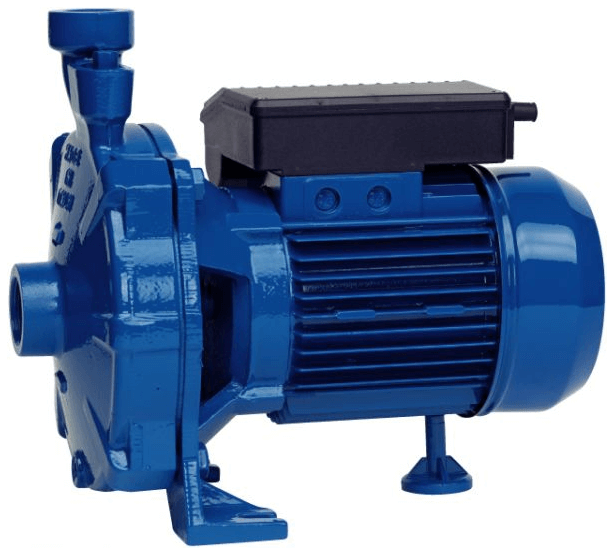

Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts. See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
5

Show all Tech Specs

on demand check availability

516.19 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Horizontal surface pumps
Product No.:
MAS000778

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00003729
    • horizontal
    • NO
    • NO
    • 5
    • 1.50
    • NO
    • monoblock
    • 125
    • 43
    • brass
    • NO
    • NO
    • 1
    • 7
    • 55
    • NO
    • 3x400
    • 1
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 516.19 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00003729 Sale group: CESP EAN: 8006414008887 Manuf. No.: 101062330

on demand
check availability
Product availability
  • central warehouse 0 pcs

516.19 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
5
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
125
Maximum head [m]
43
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product description

LIMITS OF USE


- Liquid temperature up to 35°C
(for home use according to EN 60335-2-41)
- Temperature max. liquid: 60°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 7 mt.
- Continuous duty


ENGINE


- Single-phase 230V-50Hz
- Three-phase 230//400-50Hz
- Two-Pole induction motor (n = 2850 min-1)
- Insulation Class F
- Protection IP 44
- Minimum Efficiency Index (BEP) MEI ≥ 0,4


MATERIALS


- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Stainless Steel AISI 304
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
