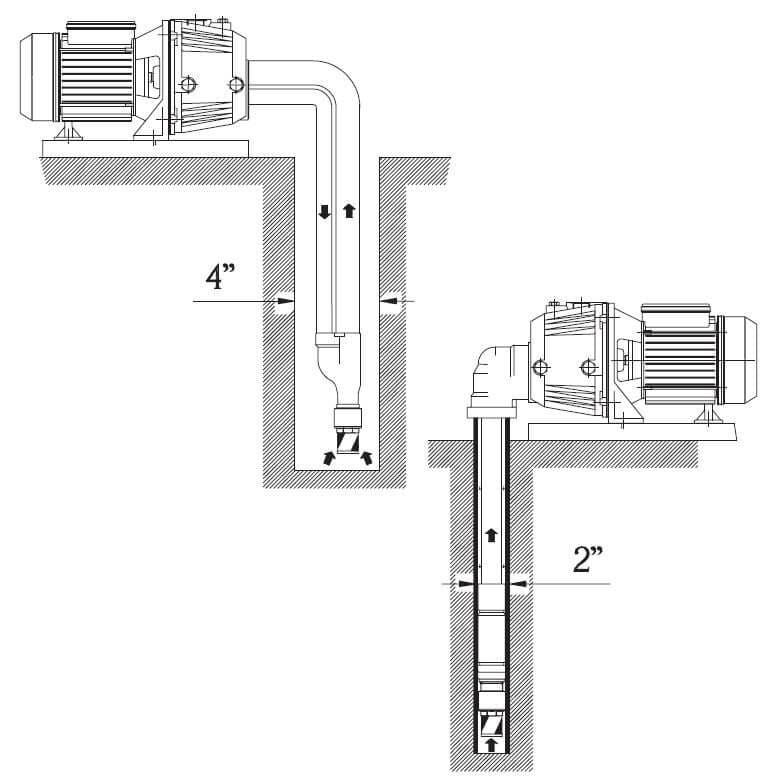

Selfpriming water pumps for deep suctions up to mt. 35 to be used in case of important water level gaps. Suitable to drain water from wells and in domestic fittings by small and medium sized tanks. Before installing the pump verify that all pipes (iron, plastic or rubber) are clean inside so to avoid any obstruction to the ejector nozzle. At the foot of the ejector must be installed a foot valve or a check valve. Installed the pump, fill completely both pipes and pump body with clean water. To preserve an efficient priming it is necessary a certain pression in the circuit, therefore it is recommended to install a membrane tank at the delivery of the pump. See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
2.50

Show all Tech Specs

on demand check availability

281.45 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
SPERONI
Category:
Horizontal surface pumps
Product No.:
MAS000776

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00035823
    • horizontal
    • NO
    • NO
    • 2.50
    • 0.75
    • NO
    • ejector
    • 20
    • 27
    • noryl
    • NO
    • NO
    • 5/4
    • 44
    • NO
    • 3x400
    • 1
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 281.45 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00035823 Sale group: CESP EAN: 8006414008795 Manuf. No.: 102200243

on demand
check availability
Product availability
  • central warehouse 0 pcs

281.45 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
2.50
Power output - P2 [kW]
0.75
Capacitor
NO
Construction
ejector
Maximum flow [l/min]
20
Maximum head [m]
27
Impeller material
noryl
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Protection [IP]
44
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product description

LIMITS OF USE


- Liquid temperature up to 35°C (for home use
according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
- Ambient temperature up to 40°C
- Total suction lift up to 35 mt.
- Continuous duty


ENGINE


- Two-Pole induction motor
(n = 2850 min-1)
- Insulation Class F
- Protection IP 44


MATERIALS


- Pump body: Cast Iron
- Motor support: Cast Iron
- Impellers: Noryl
- Diffuser: Noryl
- Ejector: Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
