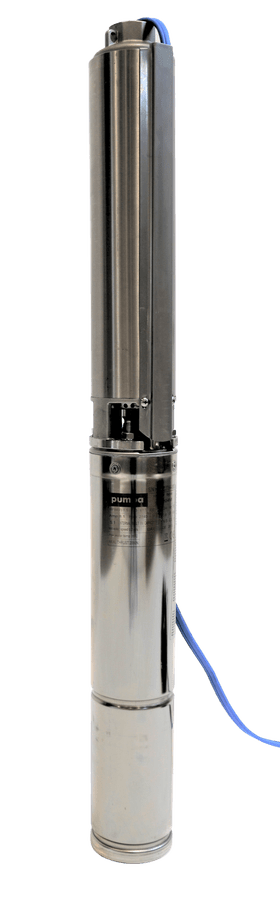

PUMPA inox line STP-05 4-inch submersible pump 230V

PUMPA inox line STP 4" submersible pumps are developed according to the latest technology. The STP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
NO, YES
Cable length [m]
1.70
Maximum immersion depth [m]
250

Show all Tech Specs

available in 10 working days >10 pcs

from 430.15 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001015

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Rated flow [l/m]
  • Power output - P2 [kW]
  • Rated head [m]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Pump diameter ["]
  • Speed ​​control
  • Protection [IP]
  • Off switch
  • Maximum borehole diameter [mm]
  • Input voltage [V]
  • Delivery port ["]
  • Check valve
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line STP-0510 4" 0,37kW 230V 20mF submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060192 Sale group: CEST EAN: 8596455017547

available in 10 working days
6 pcs
Product availability
  • central warehouse 0 pcs
  • available within 10 working days 6 pcs

430.15 €

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
1,70
Maximum immersion depth [m]
250
Maximum current [A]
3,50
Rated flow [l/m]
15
Power output - P2 [kW]
0,37
Rated head [m]
46
Capacitor
external
Construction
centrifugal
Maximum flow [l/min]
25
Maximum head [m]
67
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
98
Input voltage [V]
230
Delivery port ["]
5/4

PUMPA inox line STP-0513 4" 0,37kW 230V 20mF submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060197 Sale group: CEST EAN: 8596455017592

available in 10 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 10 working days 2 pcs

455.06 €

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1,70
Maximum immersion depth [m]
250
Maximum current [A]
3,50
Rated flow [l/m]
15
Power output - P2 [kW]
0,37
Rated head [m]
56
Capacitor
external
Construction
centrifugal
Maximum flow [l/min]
25
Maximum head [m]
86
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
98
Input voltage [V]
230
Delivery port ["]
5/4

PUMPA inox line STP-0519 4" 0,55kW 230V 25mF submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060201 Sale group: CEST EAN: 8596455017639

available in 10 working days
>10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 10 working days >10 pcs

513.35 €

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1,70
Maximum immersion depth [m]
250
Maximum current [A]
4,80
Rated flow [l/m]
15
Power output - P2 [kW]
0,55
Rated head [m]
86
Capacitor
external
Construction
centrifugal
Maximum flow [l/min]
25
Maximum head [m]
126
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
98
Input voltage [V]
230
Delivery port ["]
5/4

PUMPA inox line STP-0526 4" 0,75kW 230V 36mF submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060204 Sale group: CEST EAN: 8596455017660

available in 10 working days
1 pcs
Product availability
  • central warehouse 0 pcs
  • available within 10 working days 1 pcs

432.01 €

Drinking water certificate
NO
Automatic thermal protection
NO
Cable length [m]
1,70
Maximum immersion depth [m]
250
Maximum current [A]
6,20
Rated flow [l/m]
15
Power output - P2 [kW]
0,75
Rated head [m]
117
Capacitor
external
Construction
centrifugal
Maximum flow [l/min]
25
Maximum head [m]
173
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
98
Input voltage [V]
230
Delivery port ["]
5/4

Product description

Application

  • Water supply
  • Irrigation
  • Pressure boost

Features

  • The delivery and suction casing of the pump are precision-machined parts made of grade 304 cast stainless steel, providing superior strength and durability. The suction casing is NEMA compliant.
  • Floating impellers are made with the addition of NorylR material for perfect sand processing.
  • The pump jacket is made of 304 stainless steel to ensure maximum abrasion resistance.
  • 304 stainless steel shaft coupling allows easy alignment with the motor shaft.
  • The strainer is made of embossed stainless steel 304, which gives it the necessary strength.
  • 304 stainless steel check valve installed in the head prevents the backflow of water and minimalize the water shock affecting
    the pumps.
  • Hexagonal 304 steel rod pump shaft provides high corrosion resistance.
  • 1.5 mm thick polished 304 stainless steel pump casing jacket ensures optimal abrasion resistance.
  • Polyacetal bearing provides high wear and abrasion resistance.

Instructions

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
NO, YES
Cable length [m]
1.70
Maximum immersion depth [m]
250
Maximum current [A]
3.50 - 6.20
Rated flow [l/m]
15
Power output - P2 [kW]
0.37 - 0.75
Rated head [m]
46 - 117
Capacitor
external
Construction
centrifugal
Maximum flow [l/min]
25
Maximum head [m]
67 - 173
Impeller material
noryl
Dry run protection
NO
Float switch
NO
Pump diameter ["]
4
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Maximum borehole diameter [mm]
98
Input voltage [V]
230
Delivery port ["]
5/4
