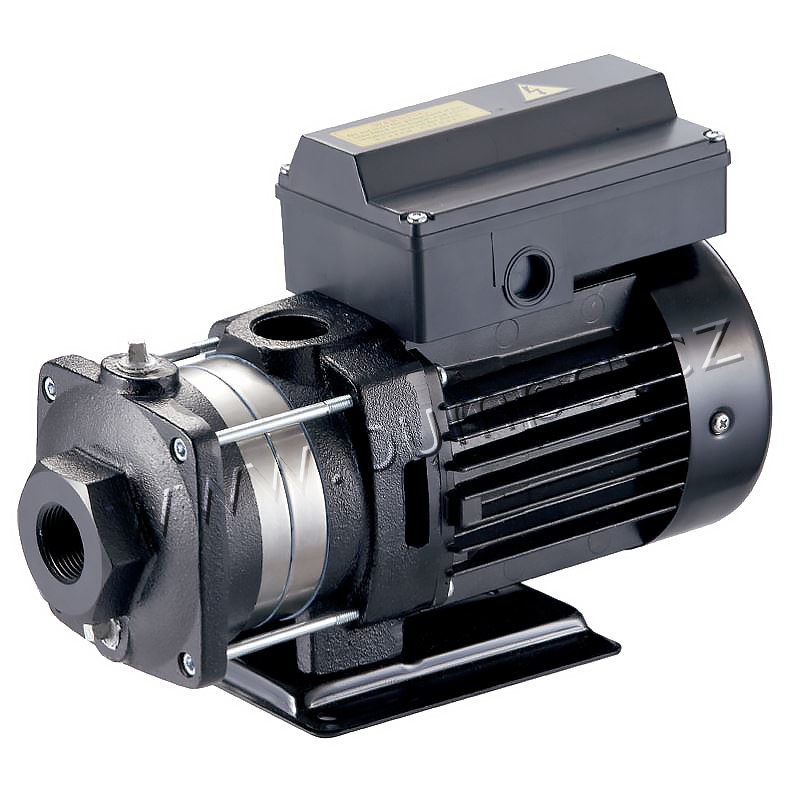

PUMPA CBP2 horizontal multistage pump

CBP series pumps are horizontal multistage centrifugal pumps with impellers on the motor shaft. The motor cover is attached to the base plate. The motor design is suitable for installation in small spaces. The engine includes a high quality mechanical seal. See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.40 - 1.80

Show all Tech Specs

in stock >10 pcs

from 343.87 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
PUMPA
Category:
Horizontal surface pumps
Product No.:
MAS001418

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA CBP2-20 0,37kW 400V CQBE horizontal multistage pump

Product No.: ZB00058518 Sale group: CESTP EAN: 8596455002741

on demand
check availability
Product availability
  • central warehouse 0 pcs

343.87 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.40
Power output - P2 [kW]
0.33
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
58
Maximum head [m]
18
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

PUMPA CBP2-30 0,37kW 400V CQBE horizontal multistage pump

Product No.: ZB00058520 Sale group: CESTP EAN: 8596455002765

on demand
check availability
Product availability
  • central warehouse 0 pcs

370.67 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.40
Power output - P2 [kW]
0.41
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
58
Maximum head [m]
27.50
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

PUMPA CBP2-40 0,37kW 400V CQBE horizontal multistage pump

Product No.: ZB00058522 Sale group: CESTP EAN: 8596455002789

on demand
check availability
Product availability
  • central warehouse 0 pcs

397.31 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.50
Power output - P2 [kW]
0.51
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
58
Maximum head [m]
37
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

PUMPA CBP2-50 0,55kW 400V CQBE horizontal multistage pump

Product No.: ZB00058524 Sale group: CESTP EAN: 8596455002802

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

454.41 €

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.60
Power output - P2 [kW]
0.59
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
58
Maximum head [m]
47
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

PUMPA CBP2-60 0,55kW 400V CQBE IE3 horizontal multistage pump

Product No.: ZB00058526 Sale group: CESTP EAN: 8596455002826

on demand
check availability
Product availability
  • central warehouse 0 pcs

499.17 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.80
Power output - P2 [kW]
0.66
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
58
Maximum head [m]
56
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product description

Description

  • CBP: The suction and discharge chambers are made of cast iron. All other parts of the pump that come into contact with the liquid are made of stainless steel

Use

  • In households
  • Transport and circulation of liquids in light industry and agriculture
  • Pressure amplification
  • Heating and cooling systems
  • Specialized equipment for system manufacturers

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.40 - 1.80
Power output - P2 [kW]
0.33 - 0.66
Capacitor
NO
Construction
multi-stage
Maximum flow [l/min]
58
Maximum head [m]
18 - 56
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1
