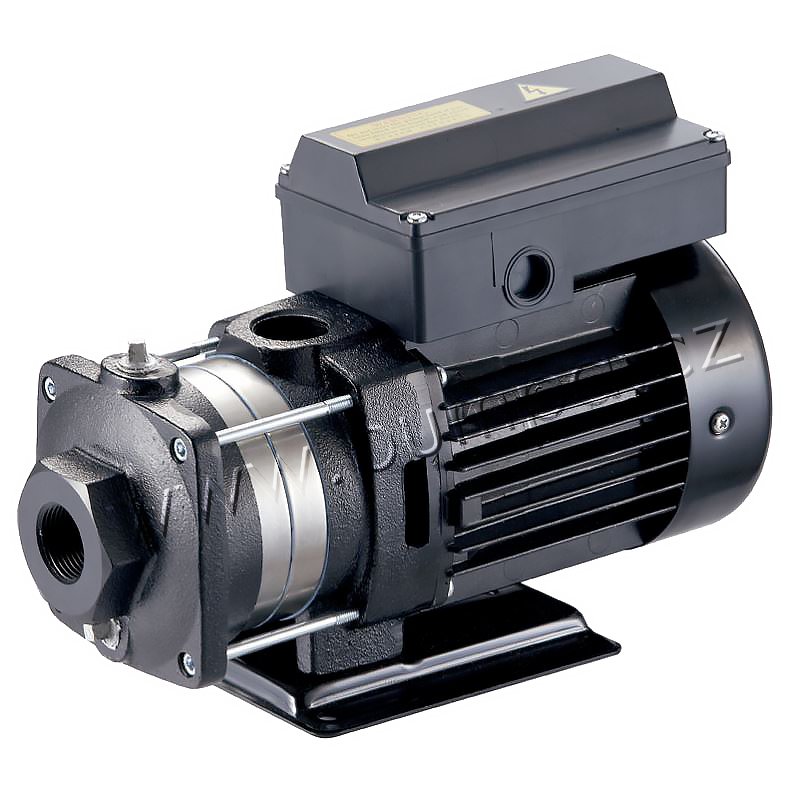

PUMPA CBP12 horizontal multistage pump

CBP series pumps are horizontal multistage centrifugal pumps with impellers on the motor shaft. The motor cover is attached to the base plate. The motor design is suitable for installation in small spaces. The engine includes a high quality mechanical seal. See more

Technical Specifications

Pump design
horizontal,
Drinking water certificate
NO,
Maximum current [A]
1.70
Power output - P2 [kW]
0.46

Show all Tech Specs

on demand check availability

from 476.08 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
PUMPA
Category:
Horizontal surface pumps
Product No.:
MAS001421

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA CBP12-10 0,37kW 400V CQBE horizontal multistage pump

Product No.: ZB00058507 Sale group: CESTP EAN: 8596455002635

on demand
check availability
Product availability
  • central warehouse 0 pcs

476.08 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Maximum current [A]
1.70
Power output - P2 [kW]
0.46
Capacitor
integrated
Maximum flow [l/min]
233.30
Maximum head [m]
12
Impeller material
stainless steel
Float switch
NO
Suction port ["]
DN40
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN40

Product description

Description

  • CBP: The suction and discharge chambers are made of cast iron. All other parts of the pump that come into contact with the liquid are made of stainless steel

Use

  • In households
  • Transport and circulation of liquids in light industry and agriculture
  • Pressure amplification
  • Heating and cooling systems
  • Specialized equipment for system manufacturers

Instructions

Technical Specifications

Pump design
horizontal,
Drinking water certificate
NO,
Maximum current [A]
1.70
Power output - P2 [kW]
0.46
Capacitor
integrated,
Maximum flow [l/min]
233.30
Maximum head [m]
12
Impeller material
stainless steel,
Float switch
NO
Suction port ["]
DN40,
Maximum suction lift [m]
8
Protection [IP]
55,
Off switch
NO,
Input voltage [V]
3x400,
Delivery port ["]
DN40,
