Submersible peripheral pump See more

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
3
Maximum immersion depth [m]
3

Show all Tech Specs

in stock >100 pcs

81.47 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
LEO
Category:
Submersible pumps
Product No.:
MAS001588

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Rated flow [l/m]
  • Power output - P2 [kW]
  • Rated head [m]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Pump diameter ["]
  • Speed ​​control
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Check valve
  • Availability
  • Price
    • ZB00069382
    • NO
    • YES
    • 3
    • 3
    • 2.50
    • 20
    • 0.37
    • 10
    • integrated
    • 38
    • 35
    • brass
    • NO
    • YES
    • 0.20
    • NO
    • 68
    • NO
    • 230
    • 1
    • in stock
      >100 pcs
      Product availability
      • central warehouse >100 pcs
    • 81.47 €

    • Sale group: CELEO

      Detail

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00069382 Sale group: CELEO EAN: 8596455039853 Manuf. No.: STK50F

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

81.47 €

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
3
Maximum immersion depth [m]
3
Maximum current [A]
2.50
Rated flow [l/m]
20
Power output - P2 [kW]
0.37
Rated head [m]
10
Capacitor
integrated
Maximum flow [l/min]
38
Maximum head [m]
35
Impeller material
brass
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
0.20
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product description

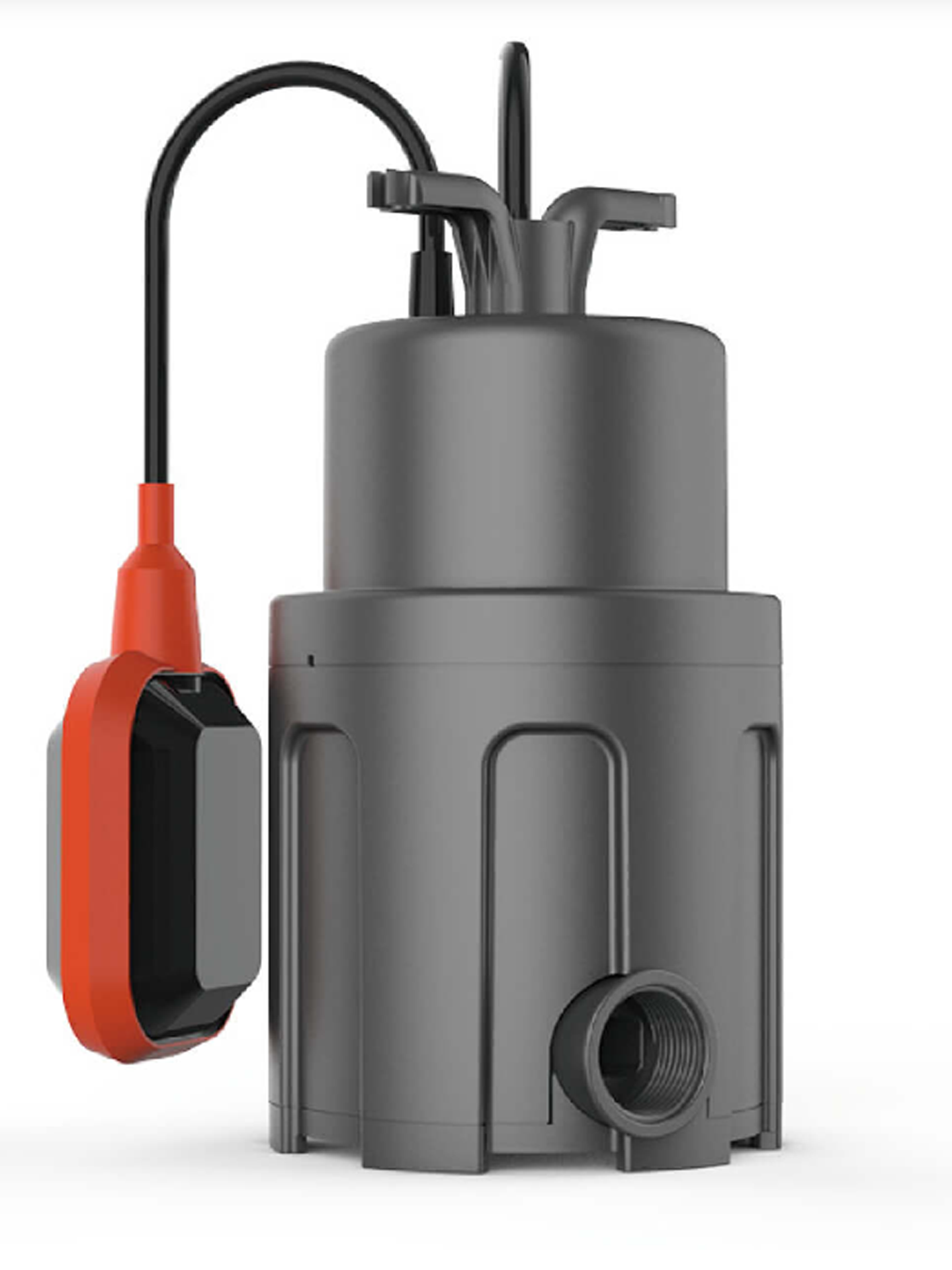

Submersible peripheral pump

Application

  • Clearn water or other liquids similar to water in physical and chemical properties
  • Small living water supply. Automatic water sprinkler system. Garden Irrigation. Temporary water taking ect.

Pump

  • Low noise (55dB) and Less vibration
  • Small and exquisite, easy to install and carry
  • Auto - Start/Stop (with float switch type)
  • Engineering plastic material have no pollution to water

Motor

  • Insulation class: F
  • Enclosures class: IPX8

Instructions

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
3
Maximum immersion depth [m]
3
Maximum current [A]
2.50
Rated flow [l/m]
20
Power output - P2 [kW]
0.37
Rated head [m]
10
Capacitor
integrated
Maximum flow [l/min]
38
Maximum head [m]
35
Impeller material
brass
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
0.20
Speed ​​control
NO
Protection [IP]
68
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
