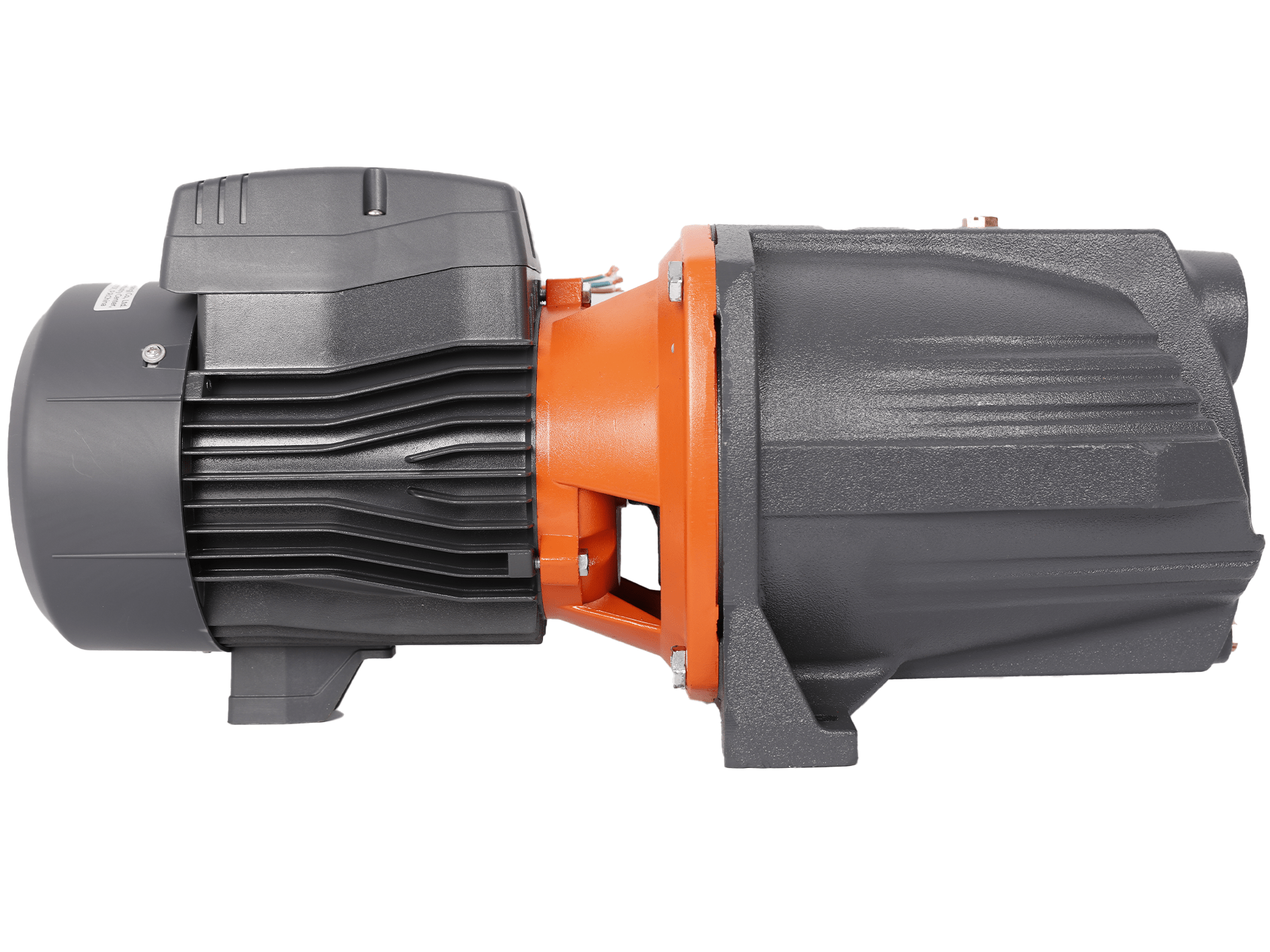

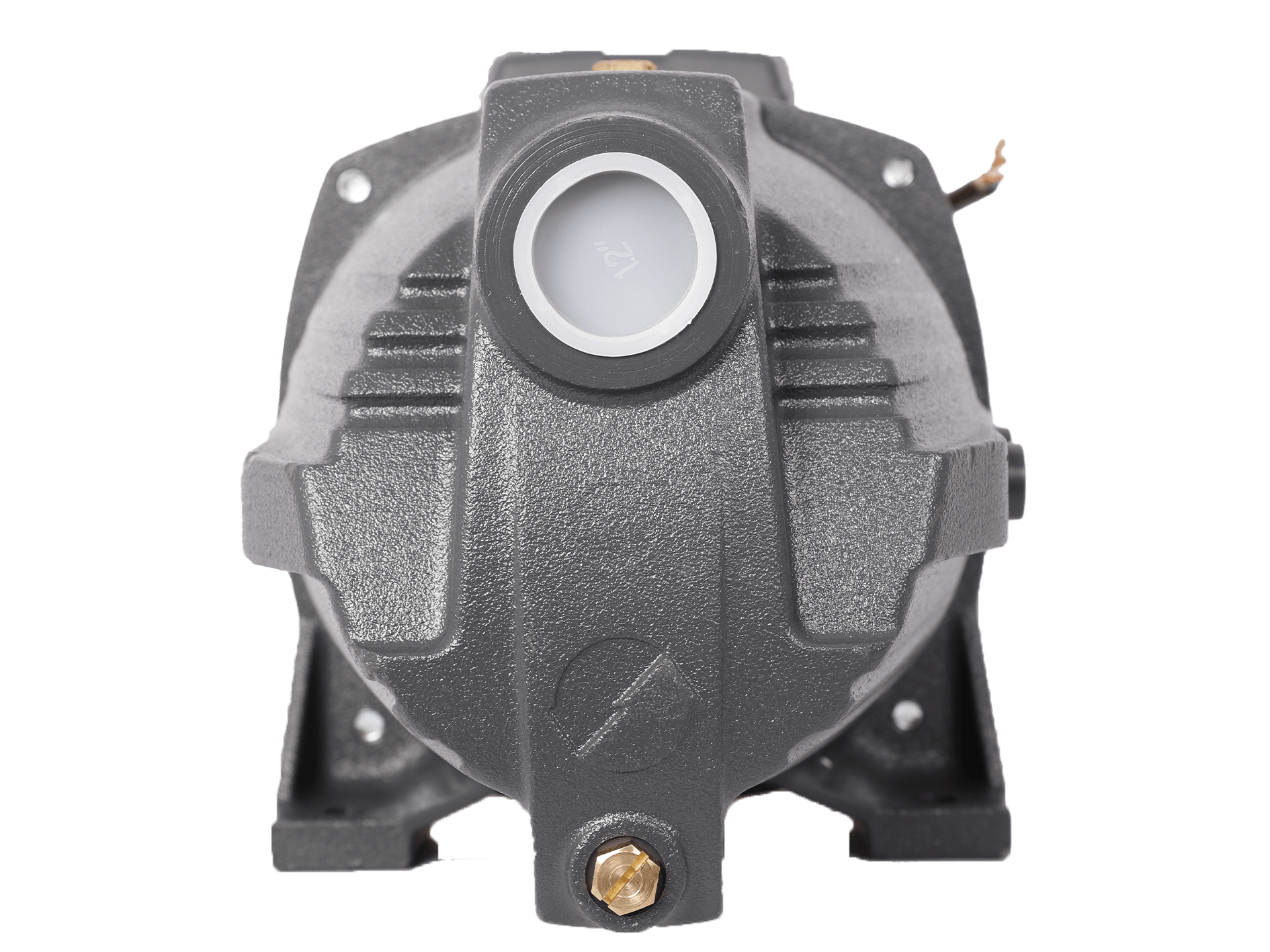

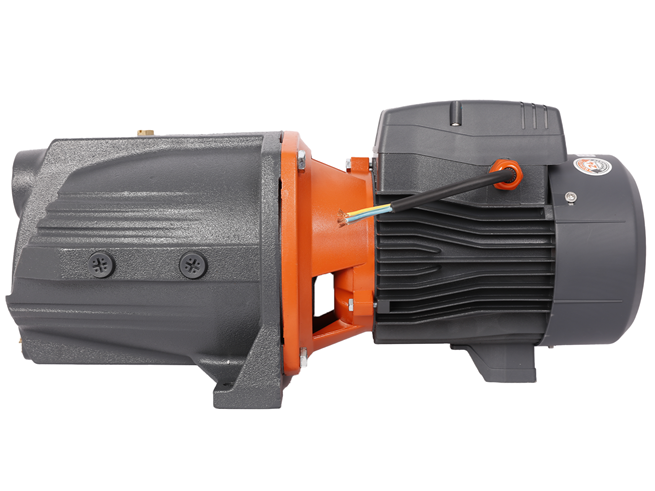

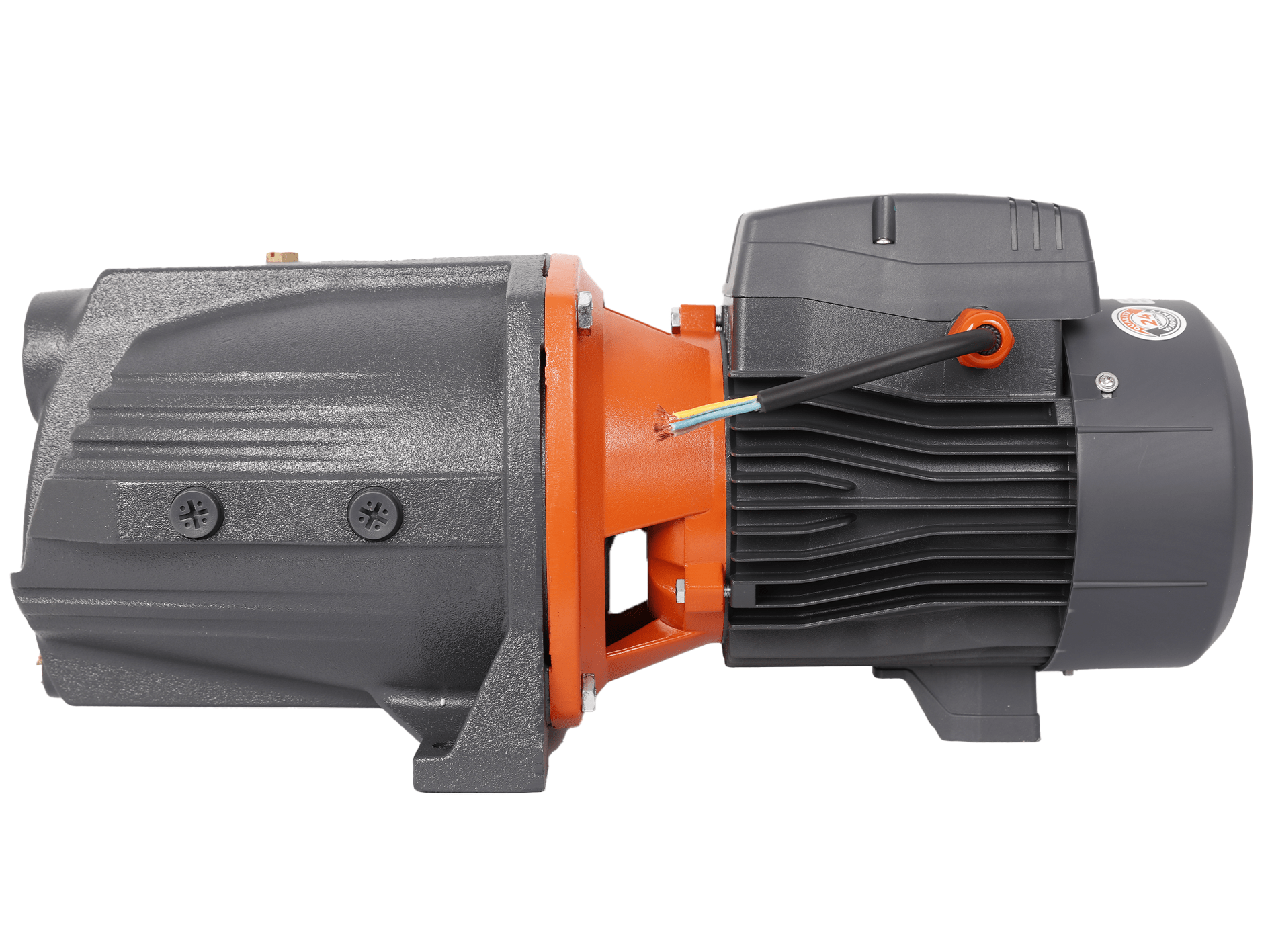

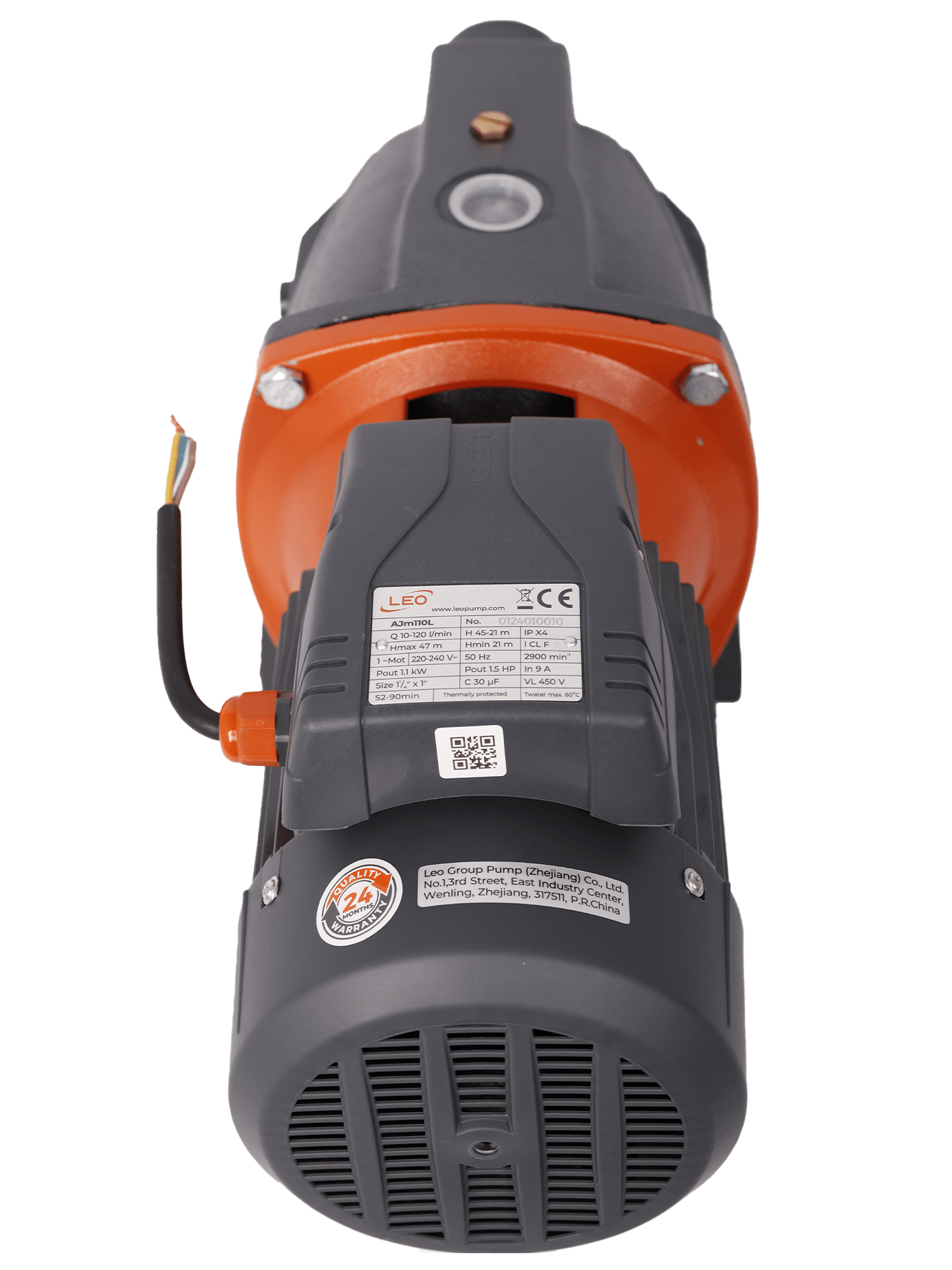

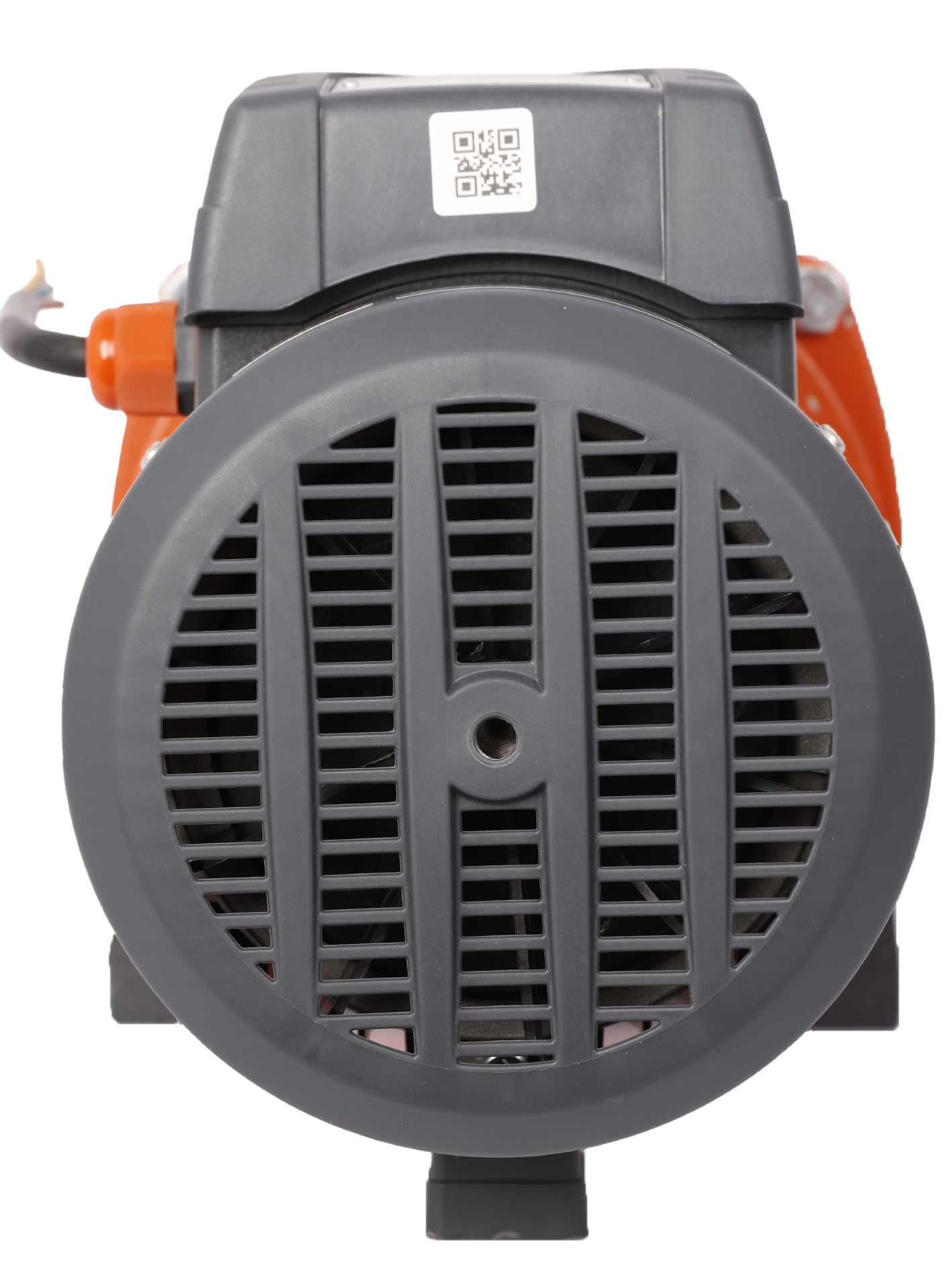

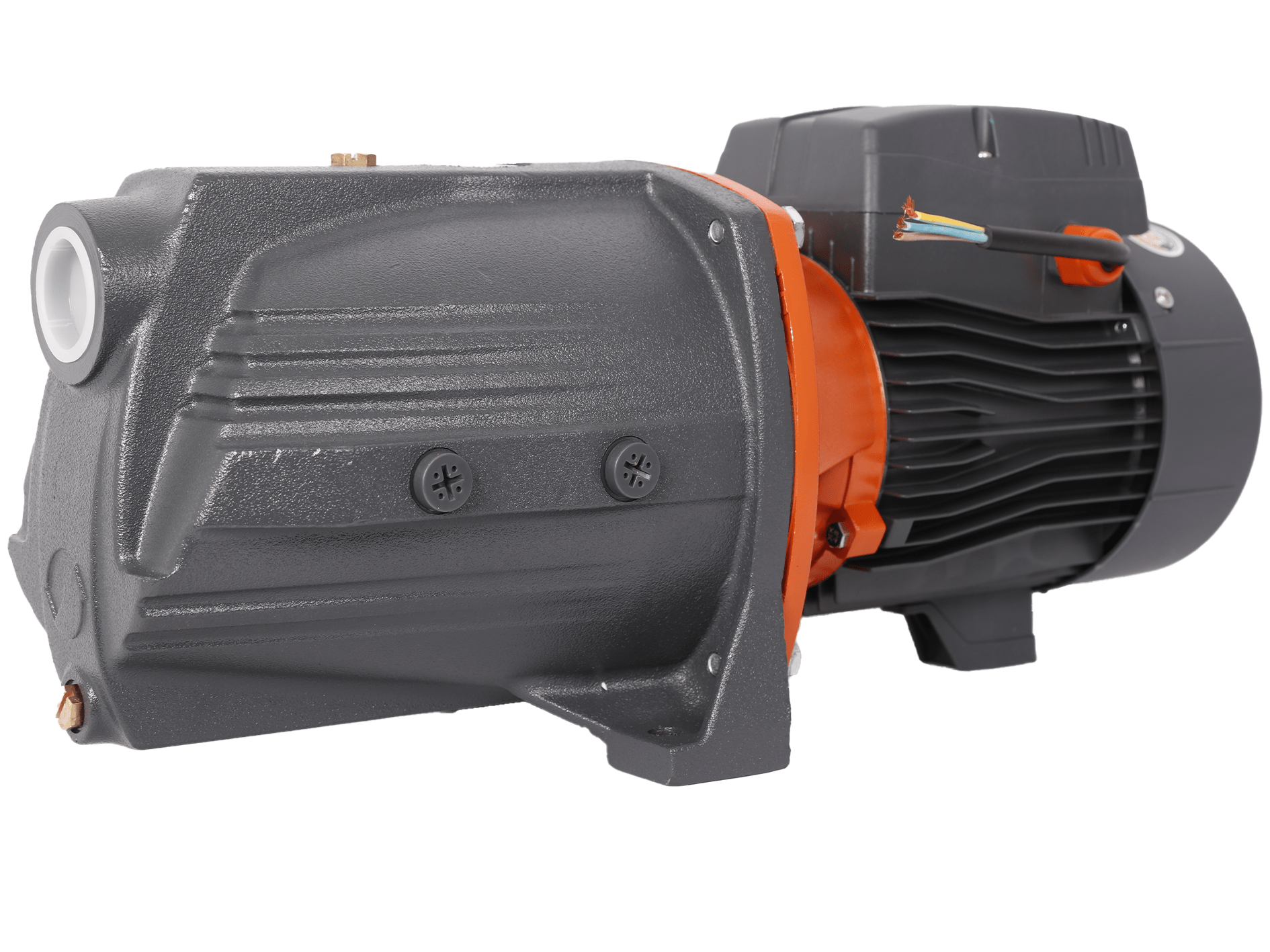

Surface self-priming JET pump for pumping clean water without abrasive particles from wells and tanks. Suitable for domestic water plants, for smaller irrigation systems, pumping, retention tanks. We are the exclusive distributor of LEO pumps for the Czech Republic. See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30

Show all Tech Specs

on demand check availability

from 201.23 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
LEO
Category:
Horizontal surface pumps
Product No.:
MAS001593

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Maximum particle size [mm]
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00070823
    • horizontal
    • NO
    • YES
    • 0.30
    • 9
    • 1.10
    • integrated
    • self priming
    • 100
    • 55
    • stainless steel
    • NO
    • 0.20
    • NO
    • 5/4
    • 9
    • X4
    • NO
    • 5/4
    • on demand
      check availability
    • 201.50 €
    • Check availability
    • ZB00070824
    • horizontal
    • NO
    • YES
    • 0.30
    • 9
    • 1.10
    • integrated
    • 70
    • 60
    • stainless steel
    • NO
    • 0.20
    • NO
    • 5/4
    • 9
    • X4
    • NO
    • 5/4
    • on demand
      check availability
    • 201.23 €
    • Check availability
    • ZB00070825
    • horizontal
    • NO
    • YES
    • 0.30
    • 9
    • 1.10
    • integrated
    • 140
    • 47
    • stainless steel
    • NO
    • 0.20
    • NO
    • 6/4
    • 9
    • X4
    • NO
    • 6/4
    • on demand
      check availability
    • 201.23 €
    • Check availability
    • ZB00070826
    • horizontal
    • NO
    • YES
    • 0.30
    • 10.50
    • 1.50
    • integrated
    • 100
    • 60
    • stainless steel
    • NO
    • 0.20
    • NO
    • 5/4
    • 9
    • X4
    • NO
    • 5/4
    • on demand
      check availability
    • 217.68 €
    • Check availability
    • ZB00070828
    • horizontal
    • NO
    • YES
    • 0.30
    • 10.50
    • 1.50
    • integrated
    • 140
    • 54
    • stainless steel
    • NO
    • 0.20
    • NO
    • 6/4
    • 9
    • X4
    • NO
    • 6/4
    • on demand
      check availability
    • 217.68 €
    • Check availability
    • ZB00070829
    • horizontal
    • NO
    • YES
    • 0.30
    • 12
    • 2.20
    • integrated
    • 70
    • 85
    • stainless steel
    • NO
    • 0.20
    • NO
    • 5/4
    • 9
    • X4
    • NO
    • 5/4
    • on demand
      check availability
    • 231.70 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00070823 Sale group: CELEO EAN: 8596455040552 Manuf. No.: AJM110

on demand
check availability

201.50 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30
Maximum current [A]
9
Power output - P2 [kW]
1.10
Capacitor
integrated
Construction
self priming
Maximum flow [l/min]
100
Maximum head [m]
55
Impeller material
stainless steel
Dry run protection
NO
Maximum particle size [mm]
0.20
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
9
Protection [IP]
X4
Off switch
NO
Delivery port ["]
5/4

Product No.: ZB00070824 Sale group: CELEO EAN: 8596455040569 Manuf. No.: AJM110H

on demand
check availability

201.23 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30
Maximum current [A]
9
Power output - P2 [kW]
1.10
Capacitor
integrated
Maximum flow [l/min]
70
Maximum head [m]
60
Impeller material
stainless steel
Dry run protection
NO
Maximum particle size [mm]
0.20
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
9
Protection [IP]
X4
Off switch
NO
Delivery port ["]
5/4

Product No.: ZB00070825 Sale group: CELEO EAN: 8596455040576 Manuf. No.: AJM110L

on demand
check availability

201.23 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30
Maximum current [A]
9
Power output - P2 [kW]
1.10
Capacitor
integrated
Maximum flow [l/min]
140
Maximum head [m]
47
Impeller material
stainless steel
Dry run protection
NO
Maximum particle size [mm]
0.20
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
9
Protection [IP]
X4
Off switch
NO
Delivery port ["]
6/4

Product No.: ZB00070826 Sale group: CELEO EAN: 8596455040583 Manuf. No.: AJM150

on demand
check availability

217.68 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30
Maximum current [A]
10.50
Power output - P2 [kW]
1.50
Capacitor
integrated
Maximum flow [l/min]
100
Maximum head [m]
60
Impeller material
stainless steel
Dry run protection
NO
Maximum particle size [mm]
0.20
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
9
Protection [IP]
X4
Off switch
NO
Delivery port ["]
5/4

Product No.: ZB00070828 Sale group: CELEO EAN: 8596455040606 Manuf. No.: AJM150L

on demand
check availability

217.68 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30
Maximum current [A]
10.50
Power output - P2 [kW]
1.50
Capacitor
integrated
Maximum flow [l/min]
140
Maximum head [m]
54
Impeller material
stainless steel
Dry run protection
NO
Maximum particle size [mm]
0.20
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
9
Protection [IP]
X4
Off switch
NO
Delivery port ["]
6/4

Product No.: ZB00070829 Sale group: CELEO EAN: 8596455040613 Manuf. No.: AJM220H

on demand
check availability

231.70 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30
Maximum current [A]
12
Power output - P2 [kW]
2.20
Capacitor
integrated
Maximum flow [l/min]
70
Maximum head [m]
85
Impeller material
stainless steel
Dry run protection
NO
Maximum particle size [mm]
0.20
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
9
Protection [IP]
X4
Off switch
NO
Delivery port ["]
5/4

Product description

Surface self-priming JET pump for pumping clean water without abrasive particles from wells and tanks. Suitable for domestic water plants, for smaller irrigation systems, pumping, retention tanks. We are the exclusive distributor of LEO pumps for the Czech Republic.

Use

  • The pump is intended for pumping clean water without abrasive particles
  • Water pumping from wells and reservoirs
  • Suitable for smaller irrigation systems
  • Suitable for increasing pressure
  • Suitable for domestic water plants

Pump

  • Special anti-corrosion treatment of cast iron
  • Stainless steel impeller
  • Shaft made of AISI 304
  • Maximum temperature of pumped liquid 60°C
  • Maximum suction 9 m

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
0.30
Maximum current [A]
9 - 12
Power output - P2 [kW]
1.10 - 2.20
Capacitor
integrated
Construction
self priming,
Maximum flow [l/min]
70 - 140
Maximum head [m]
47 - 85
Impeller material
stainless steel
Dry run protection
NO
Maximum particle size [mm]
0.20
Speed ​​control
NO
Suction port ["]
5/4, 6/4
Maximum suction lift [m]
9
Protection [IP]
X4
Off switch
NO
Delivery port ["]
5/4, 6/4
