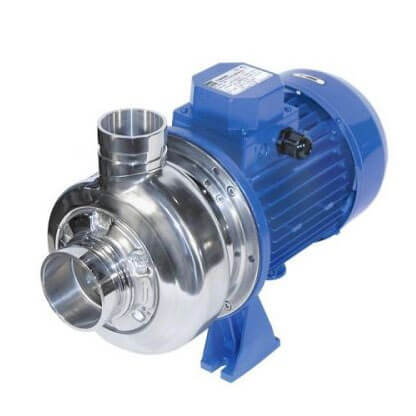

Centrifugal pump fitted with a closed radial flow impeller in AISI 304 stainless steel. It is equipped with an insulating shell as standard, which prevents condensation inside the system. It is available with special seals for heavier duty use and higher liquid temperature limits. The choice of connections, Victaulic (DWC-V) and threaded (DWC-N), facilitates installation. See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.30 - 6.40

Show all Tech Specs

on demand check availability

from 636.42 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
EBARA
Category:
Horizontal surface pumps
Product No.:
MAS000348

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Speed ​​control
  • Grinder
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00014396
    • horizontal
    • NO
    • NO
    • 3.30
    • 1.10
    • NO
    • monoblock
    • 400
    • 21
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 639.24 €
    • Check availability
    • ZB00014397
    • horizontal
    • NO
    • NO
    • 3.80
    • 1.50
    • NO
    • monoblock
    • 400
    • 24.50
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 781.30 €
    • Check availability
    • ZB00027158
    • horizontal
    • NO
    • NO
    • 3.80
    • 1.50
    • NO
    • monoblock
    • 750
    • 18.50
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 821.82 €
    • Check availability
    • ZB00027159
    • horizontal
    • NO
    • NO
    • 4.70
    • 2.20
    • NO
    • monoblock
    • 750
    • 24.50
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 911.31 €
    • Check availability
    • ZB00027160
    • horizontal
    • NO
    • NO
    • 6.40
    • 3
    • NO
    • monoblock
    • 750
    • 26.30
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 969.72 €
    • Check availability
    • ZB00001939
    • horizontal
    • NO
    • NO
    • 3.30
    • 1.10
    • NO
    • monoblock
    • 400
    • 21
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 636.42 €
    • Check availability
    • ZB00014398
    • horizontal
    • NO
    • NO
    • 3.80
    • 1.50
    • NO
    • monoblock
    • 400
    • 24.50
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 776.27 €
    • Check availability
    • ZB00027156
    • horizontal
    • NO
    • NO
    • 3.80
    • 1.50
    • NO
    • monoblock
    • 750
    • 18.50
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 818.45 €
    • Check availability
    • ZB00027157
    • horizontal
    • NO
    • NO
    • 4.70
    • 2.20
    • NO
    • monoblock
    • 750
    • 24.50
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 906.24 €
    • Check availability
    • ZB00014399
    • horizontal
    • NO
    • NO
    • 6.40
    • 3
    • NO
    • monoblock
    • 750
    • 26.30
    • stainless steel
    • NO
    • NO
    • NO
    • NO
    • 2
    • 8
    • 55
    • NO
    • 3x400
    • 2
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 960.47 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00014396 Sale group: CEEB Manuf. No.: 2180070004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

639.24 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.30
Power output - P2 [kW]
1.10
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
400
Maximum head [m]
21
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00014397 Sale group: CEEB Manuf. No.: 2180080004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

781.30 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.80
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
400
Maximum head [m]
24.50
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00027158 Sale group: CEEB Manuf. No.: 2190080004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

821.82 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.80
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
750
Maximum head [m]
18.50
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00027159 Sale group: CEEB Manuf. No.: 2190100004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

911.31 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
4.70
Power output - P2 [kW]
2.20
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
750
Maximum head [m]
24.50
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00027160 Sale group: CEEB Manuf. No.: 2190110004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

969.72 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
6.40
Power output - P2 [kW]
3
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
750
Maximum head [m]
26.30
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00001939 Sale group: CEEB Manuf. No.: 2181070004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

636.42 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.30
Power output - P2 [kW]
1.10
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
400
Maximum head [m]
21
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00014398 Sale group: CEEB Manuf. No.: 2181080004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

776.27 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.80
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
400
Maximum head [m]
24.50
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00027156 Sale group: CEEB Manuf. No.: 2191080004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

818.45 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.80
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
750
Maximum head [m]
18.50
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00027157 Sale group: CEEB Manuf. No.: 2191100004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

906.24 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
4.70
Power output - P2 [kW]
2.20
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
750
Maximum head [m]
24.50
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product No.: ZB00014399 Sale group: CEEB Manuf. No.: 2191110004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

960.47 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
6.40
Power output - P2 [kW]
3
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
750
Maximum head [m]
26.30
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

Product description

Centrifugal pump fitted with a closed radial flow impeller in AISI 304 stainless steel.
It is sturdily built, made using the exclusive hydroforming process, and is equipped with increased discharge due to the absence of additional fittings.
It is equipped with an insulating shell as standard, which prevents condensation inside the system, and the standard mechanical seal is in Ceramic/Carbon/EPDM. The DWC centrifugal pump is available with special seals for heavier duty and higher liquid temperature limits.
The choice of connections, Victaulic (DWC-V) and threaded (DWC-N), facilitates installation.
For further technical information see the Databook

  • Cooling, air conditioning and heating systems
  • Chillers
  • Washing systems
  • Civil and industrial water supply

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
3.30 - 6.40
Power output - P2 [kW]
1.10 - 3
Capacitor
NO
Construction
monoblock

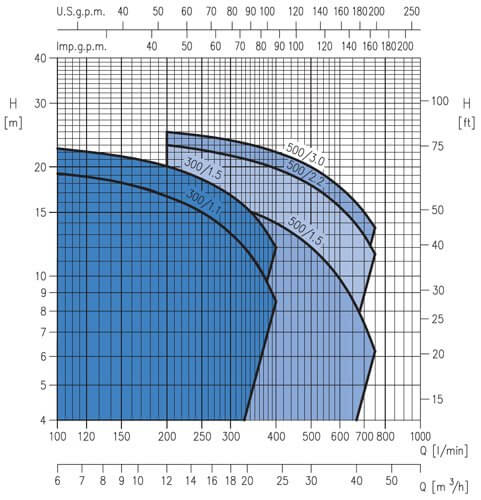

Maximum flow [l/min]
400 - 750
Maximum head [m]
18.50 - 26.30
Impeller material
stainless steel
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Grinder
NO
Suction port ["]
2
Maximum suction lift [m]
8
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
2

{9503C5C0-599E-4D74-9530-64669EDC6C10}

{74F69362-9499-4561-9BCD-9B728A39DDB8}
Ebara Pumps Europe S.p.A.
Via Torri di Confine, 2/1/int.C, 36053 Gambellara VI, IT
{13991AA5-D921-4185-9F6C-629838AEA0E6} [email protected]
