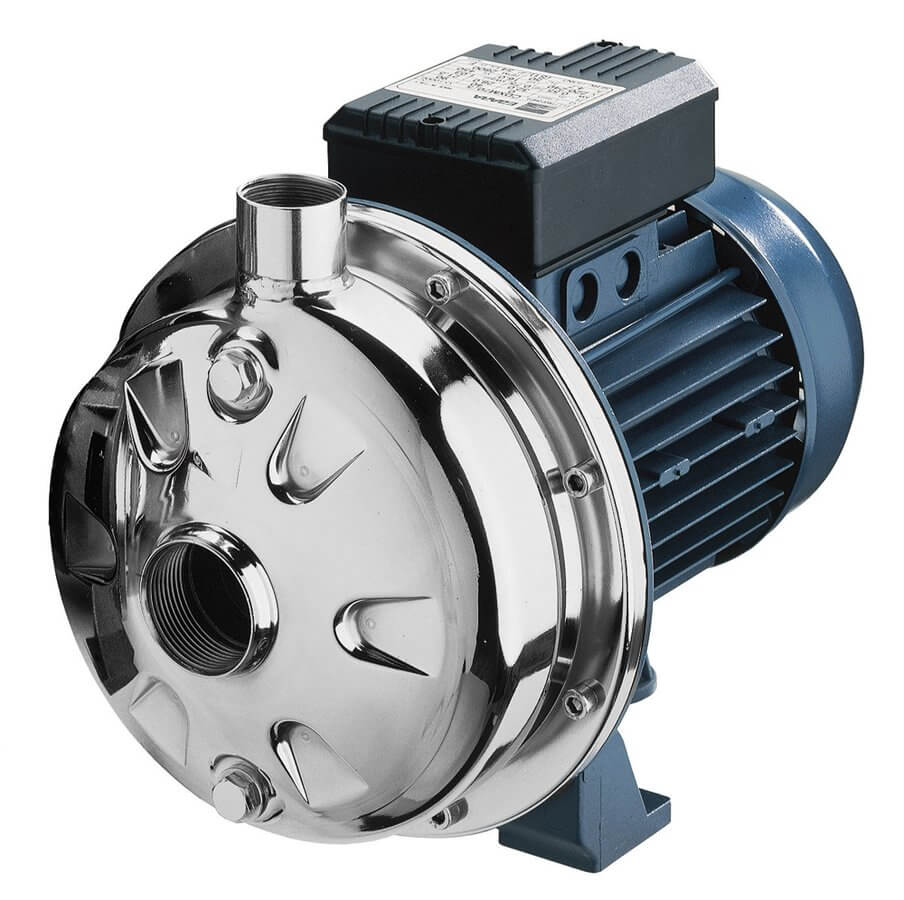

Single-impeller centrifugal pump in AISI 304 and AISI 316 stainless steel, with radial impeller and components made by the hydroforming process that provides high resistance to corrosion. The versatility of these electric pumps is due to the different types of mechanical seals that can be applied. See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
1.90 - 4.70

Show all Tech Specs

in stock >10 pcs

from 341.66 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
EBARA
Category:
Horizontal surface pumps
Product No.:
MAS000343

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00002036
    • horizontal
    • YES
    • NO
    • 1.90
    • 0.75
    • NO
    • monoblock
    • 110
    • 32
    • stainless steel
    • NO
    • NO
    • 5/4
    • 9
    • 55
    • NO
    • 3x400
    • 1
    • in stock
      2 pcs
      Product availability
      • central warehouse 2 pcs
    • 341.66 €

    • Sale group: CEEB

      Detail

    • ZB00002038
    • horizontal
    • YES
    • NO
    • 2.50
    • 0.90
    • NO
    • monoblock
    • 160
    • 31.20
    • stainless steel
    • NO
    • NO
    • 5/4
    • 8.50
    • 55
    • NO
    • 3x400
    • 1
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 421.74 €
    • Check availability
    • ZB00002039
    • horizontal
    • YES
    • NO
    • 4.10
    • 1.50
    • NO
    • monoblock
    • 160
    • 40.50
    • stainless steel
    • NO
    • NO
    • 5/4
    • 8.50
    • 55
    • NO
    • 3x400
    • 1
    • in stock
      1 pcs
      Product availability
      • central warehouse 1 pcs
    • 575.18 €

    • Sale group: CEEB

      Detail

    • ZB00002040
    • horizontal
    • YES
    • NO
    • 2.50
    • 0.90
    • NO
    • monoblock
    • 250
    • 22.80
    • stainless steel
    • NO
    • NO
    • 6/4
    • 8.50
    • 55
    • NO
    • 3x400
    • 1
    • in stock
      3 pcs
      Product availability
      • central warehouse 3 pcs
    • 520.55 €

    • Sale group: CEEB

      Detail

    • ZB00002041
    • horizontal
    • YES
    • NO
    • 4.10
    • 1.50
    • NO
    • monoblock
    • 250
    • 33
    • stainless steel
    • NO
    • NO
    • 6/4
    • 8.50
    • 55
    • NO
    • 3x400
    • 1
    • in stock
      2 pcs
      Product availability
      • central warehouse 2 pcs
    • 596.13 €

    • Sale group: CEEB

      Detail

    • ZB00002042
    • horizontal
    • YES
    • NO
    • 4.70
    • 1.80
    • NO
    • monoblock
    • 250
    • 39.40
    • stainless steel
    • NO
    • NO
    • 6/4
    • 8.50
    • 55
    • NO
    • 3x400
    • 1
    • in stock
      6 pcs
      Product availability
      • central warehouse 6 pcs
    • 642.68 €

    • Sale group: CEEB

      Detail

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00002036 Sale group: CEEB Manuf. No.: 1615100504I

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

341.66 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
1.90
Power output - P2 [kW]
0.75
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
110
Maximum head [m]
32
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product No.: ZB00002038 Sale group: CEEB Manuf. No.: 1625100004I

on demand
check availability
Product availability
  • central warehouse 0 pcs

421.74 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
2.50
Power output - P2 [kW]
0.90
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
160
Maximum head [m]
31.20
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8.50
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product No.: ZB00002039 Sale group: CEEB Manuf. No.: 1625200004I

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

575.18 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
4.10
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
160
Maximum head [m]
40.50
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8.50
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product No.: ZB00002040 Sale group: CEEB Manuf. No.: 1635100004I

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

520.55 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
2.50
Power output - P2 [kW]
0.90
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
250
Maximum head [m]
22.80
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
8.50
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product No.: ZB00002041 Sale group: CEEB Manuf. No.: 1635200004I

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

596.13 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
4.10
Power output - P2 [kW]
1.50
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
250
Maximum head [m]
33
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
8.50
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product No.: ZB00002042 Sale group: CEEB Manuf. No.: 1635250004I

in stock
6 pcs
Product availability
  • central warehouse 6 pcs

642.68 €

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
4.70
Power output - P2 [kW]
1.80
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
250
Maximum head [m]
39.40
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
8.50
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product description

Single impeller centrifugal pump with hydraulics in AISI 304 and AISI 316 stainless steel, with radial impeller, with hydraulics entirely in pressed AISI 304 or AISI 316 (L version), with hydroformed components, which ensure sturdiness, hydraulic efficiency and reliability.
The hydroforming process uses a high-pressure fluid (up to 1200 bar) to form the metal.
The hydraulic fluid, in our case water, with increasing pressure pushes the stainless steel to copy the shapes of the template until it comes into contact with the internal walls of the matrix that forms the mould. Hydroforming, which combines the power of a press with the force of water, has significant advantages over traditional processes, namely:

  • Perfectly smooth shape
  • Highly smooth running
  • No welding points

These features ensure high corrosion resistance, high efficiency with performance above 80% and low losses.
The small size of CDX(L) electric pumps makes them suitable for narrow or difficult to reach spaces.

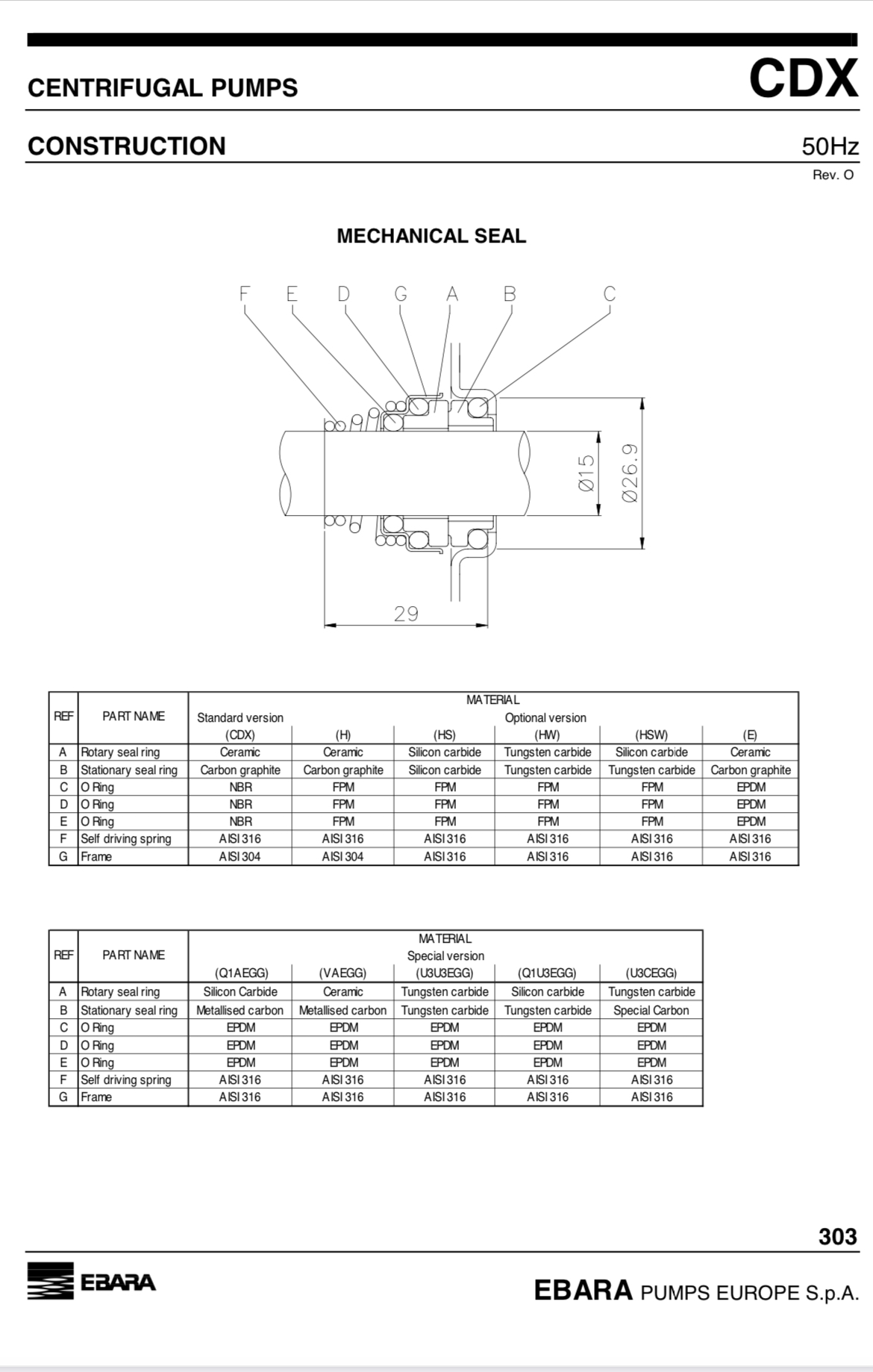

The versatility of these electric pumps is due to the different types of mechanical seals that can be applied. For further technical information see the Databook

  • Domestic pressurisation
  • Small-scale garden irrigation
  • Washing
  • Water treatment
  • Cooling towers
  • Handling of clean water in general

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
NO
Maximum current [A]
1.90 - 4.70
Power output - P2 [kW]
0.75 - 1.80
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
110 - 250
Maximum head [m]
22.80 - 40.50
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4, 6/4
Maximum suction lift [m]
8.50 - 9
Protection [IP]
55
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1
