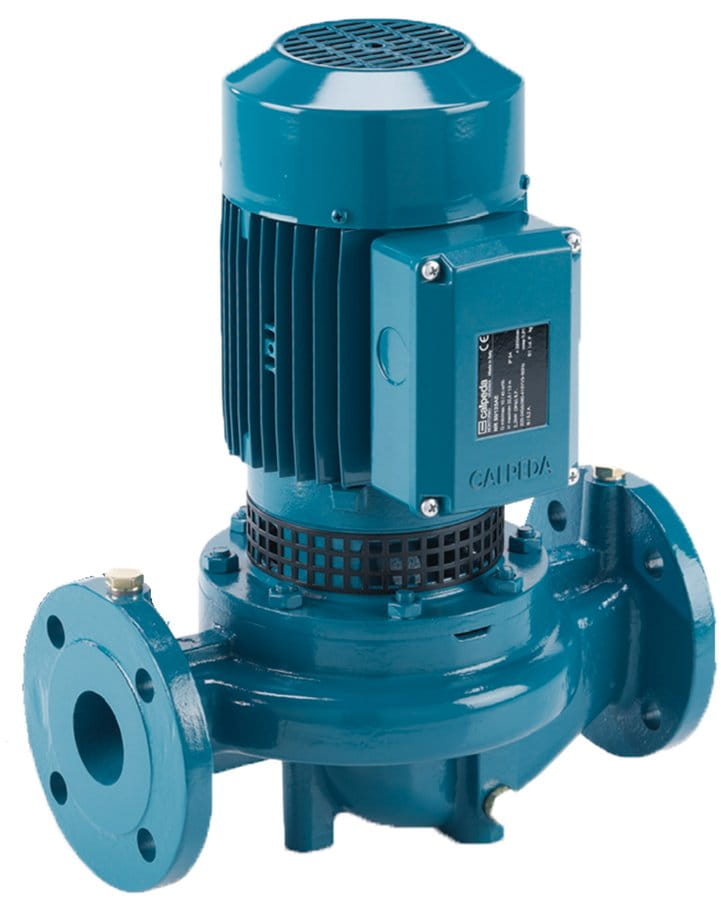

Calpeda NR4 32 close-coupled, single-impeller centrifugal pumps

Close-coupled, single-impeller, centrifugal pumps; electric motor with extended shaft directly connected to the pump. See more

Technical Specifications

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
0.95 - 1.90
Power output - P2 [kW]
0.37 - 0.75

Show all Tech Specs

on demand check availability

from 748.06 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Surface pumps
Product No.:
MAS001413

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NR4 32/160A 230/400V 0,37kW 1450rpm, in-line centrifugal pump

Product No.: ZB00065945 Sale group: CECP EAN: 8030485876731 Manuf. No.: 70MB0090000

on demand
check availability
Product availability
  • central warehouse 0 pcs

748.08 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
0.95
Power output - P2 [kW]
0.37
Capacitor
NO
Maximum flow [l/min]
125
Maximum head [m]
9.20
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32

Calpeda NR4 32/160B 230/400V 0,37kW 1450rpm, in-line centrifugal pump

Product No.: ZB00065946 Sale group: CECP EAN: 8030485869603 Manuf. No.: 70MB0110000

on demand
check availability
Product availability
  • central warehouse 0 pcs

748.06 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
0.95
Power output - P2 [kW]
0.37
Capacitor
NO
Maximum flow [l/min]
100
Maximum head [m]
8.10
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32

Calpeda NR4 32/200C 230/400V 0,37kW 1450rpm, in-line centrifugal pump

Product No.: ZB00065949 Sale group: CECP EAN: 8030485894599 Manuf. No.: 70MB0190000

on demand
check availability
Product availability
  • central warehouse 0 pcs

920.32 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
0.95
Power output - P2 [kW]
0.37
Capacitor
NO
Maximum flow [l/min]
140
Maximum head [m]
11.50
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32

Calpeda NR4 32/200B 230/400V 0,55kW 1450rpm, in-line centrifugal pump

Product No.: ZB00065948 Sale group: CECP EAN: 8030485947035 Manuf. No.: 70MB0170000

on demand
check availability
Product availability
  • central warehouse 0 pcs

978.21 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
1.50
Power output - P2 [kW]
0.55
Capacitor
NO
Maximum flow [l/min]
160
Maximum head [m]
13.20
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32

Calpeda NR4 32/200A/A 230/400V 0,75kW 1450rpm, in-line centrifugal pump

Product No.: ZB00065947 Sale group: CECP EAN: 8030485983040 Manuf. No.: 70MB0151000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,099.05 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
1.90
Power output - P2 [kW]
0.75
Capacitor
NO
Maximum flow [l/min]
160
Maximum head [m]
14.60
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32

Product description

Applications

  • For clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%).
  • For heating, conditioning, cooling and circulation plants.
  • For civil and industrial applications.
  • When low noise operation is required (n = 1450 rpm).

Instructions

Technical Specifications

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
0.95 - 1.90
Power output - P2 [kW]
0.37 - 0.75
Capacitor
NO
Maximum flow [l/min]
100 - 160
Maximum head [m]
8.10 - 14.60
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN32
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN32
