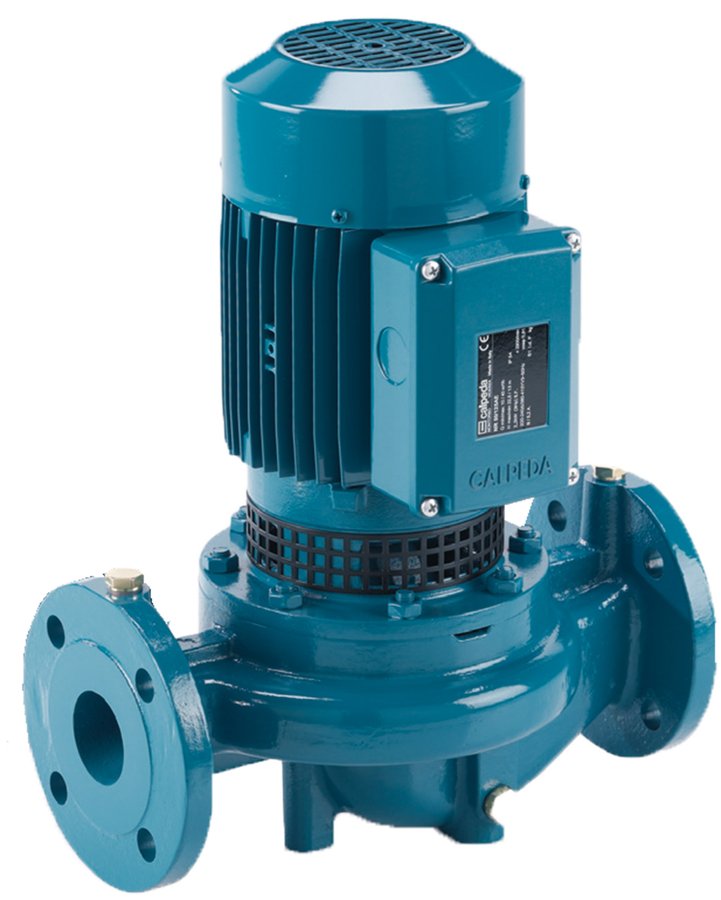

Calpeda NR 50 close-coupled, single-impeller centrifugal pumps Calpeda NR 50 close-coupled, single-impeller centrifugal pumps Calpeda NR 50 close-coupled, single-impeller centrifugal pumps Calpeda NR 50 close-coupled, single-impeller centrifugal pumps Calpeda NR 50 close-coupled, single-impeller centrifugal pumps Calpeda NR 50 close-coupled, single-impeller centrifugal pumps
Calpeda NR 50 close-coupled, single-impeller centrifugal pumps

Close-coupled, single-impeller, centrifugal pumps; electric motor with extended shaft directly connected to the pump. See more

Technical Specifications

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
1.30 - 27.30
Power output - P2 [kW]
0.45 - 15

Show all Tech Specs

on demand check availability

from 567.89 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Surface pumps
Product No.:
MAS001409

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NR 50D/A 230/400V 0,45kW 2900rpm, in-line centrifugal pump

Product No.: ZB00014010 Sale group: CECP EAN: 8030485011309 Manuf. No.: 70M0041000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

567.89 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
1.30
Power output - P2 [kW]
0.45
Capacitor
NO
Maximum flow [l/min]
220
Maximum head [m]
11.60
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50C/B 230/400V 0,75kW 2900rpm, in-line centrifugal pump

Product No.: ZB00001788 Sale group: CECP EAN: 8030485896289 Manuf. No.: 70M00431000

on demand
check availability
Product availability
  • central warehouse 0 pcs

619.20 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
2.20
Power output - P2 [kW]
0.75
Capacitor
NO
Maximum flow [l/min]
315
Maximum head [m]
16.20
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

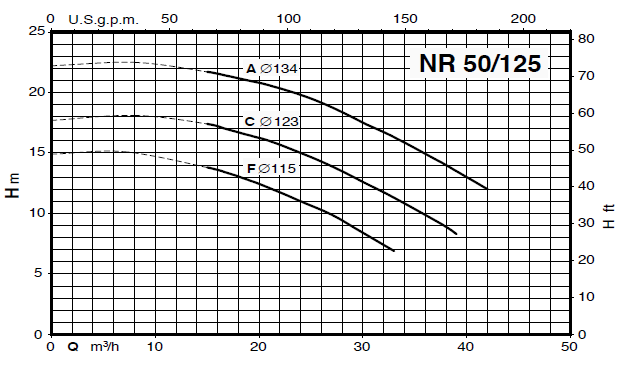

Calpeda NR 50/125F/A 230/400V 1,1kW 2900rpm, in-line centrifugal pump

Product No.: ZB00044564 Sale group: CECP EAN: 8030485897170 Manuf. No.: 70MA0501000

on demand
check availability
Product availability
  • central warehouse 0 pcs

705.60 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
2.70
Power output - P2 [kW]
1.10
Capacitor
NO
Maximum flow [l/min]
550
Maximum head [m]
14.90
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/125C/A 230/400V 1,5kW 2900rpm, in-line centrifugal pump

Product No.: ZB00014289 Sale group: CECP EAN: 8030485897064 Manuf. No.: 70MA054100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

754.76 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
4.30
Power output - P2 [kW]
1.50
Capacitor
NO
Maximum flow [l/min]
650
Maximum head [m]
17.70
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/125A/B 230/400V 2,2kW 2900rpm, in-line centrifugal pump

Product No.: ZB00014340 Sale group: CECP EAN: 8030485909521 Manuf. No.: 70MA0582000

on demand
check availability
Product availability
  • central warehouse 0 pcs

820.49 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
5.30
Power output - P2 [kW]
2.20
Capacitor
NO
Maximum flow [l/min]
700
Maximum head [m]
22.20
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

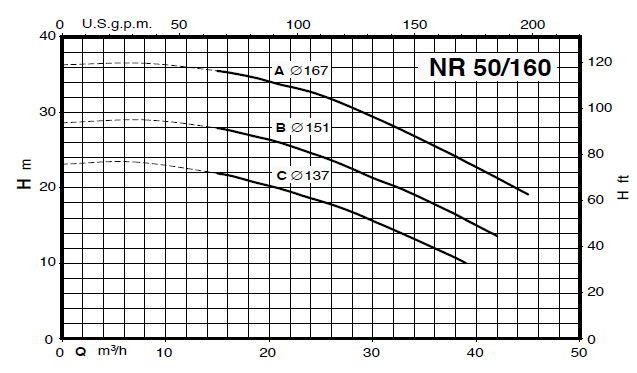

Calpeda NR 50/160C/B 230/400V, 2,2kW 2900rpm, in-line centrifugal pump

Product No.: ZB00044399 Sale group: CECP EAN: 8030485909873 Manuf. No.: 70MA0622000

on demand
check availability
Product availability
  • central warehouse 0 pcs

968.62 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
5.30
Power output - P2 [kW]
2.20
Capacitor
NO
Maximum flow [l/min]
650
Maximum head [m]
23.10
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/160B/A 230/400V 3,0kW 2900rpm, in-line centrifugal pump

Product No.: ZB00001794 Sale group: CECP EAN: 8030485634812 Manuf. No.: 70MA0661000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,006.72 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
6.60
Power output - P2 [kW]
3
Capacitor
NO
Maximum flow [l/min]
700
Maximum head [m]
28.60
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/160A/B 400/690V 4,0kW 2900rpm, in-line centrifugal pump

Product No.: ZB00001907 Sale group: CECP EAN: 8030485894155 Manuf. No.: 70MA0722000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,177.12 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
9.40
Power output - P2 [kW]
4
Capacitor
NO
Maximum flow [l/min]
750
Maximum head [m]
36.60
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

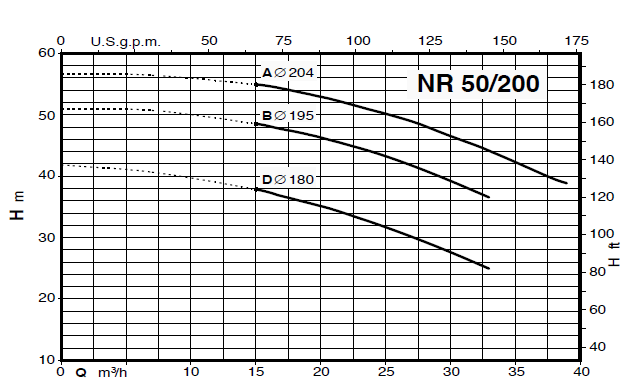

Calpeda NR 50/200D/B 400/690V 4,0kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065935 Sale group: CECP EAN: 8030485896913 Manuf. No.: 70MA0762000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,372.31 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
9.40
Power output - P2 [kW]
4
Capacitor
NO
Maximum flow [l/min]
550
Maximum head [m]
41.80
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/200B/A 400/690V 5,5kW 2900rpm, in-line centrifugal pump

Product No.: ZB00014342 Sale group: CECP EAN: 8030485587217 Manuf. No.: 70MA0801000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,621.78 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
10.80
Power output - P2 [kW]
5.50
Capacitor
NO
Maximum flow [l/min]
550
Maximum head [m]
50.90
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/200A/A 400/690V 7,5kW 2900rpm, in-line centrifugal pump

Product No.: ZB00045662 Sale group: CECP EAN: 8030485587279 Manuf. No.: 70MA0881000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,891.59 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
14.30
Power output - P2 [kW]
7.50
Capacitor
NO
Maximum flow [l/min]
650
Maximum head [m]
56.70
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

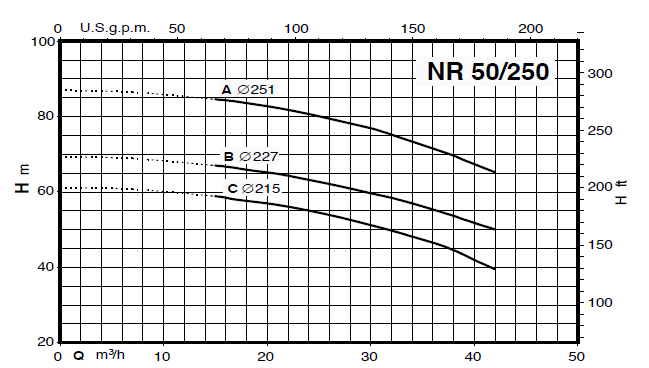

Calpeda NR 50/250C/B 400/690V 9,2kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065936 Sale group: CECP EAN: 8030485888680 Manuf. No.: 70MA0922000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,021.50 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
18.50
Power output - P2 [kW]
9.20
Capacitor
NO
Maximum flow [l/min]
700
Maximum head [m]
61.20
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/250B/A 400/690V 11kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065937 Sale group: CECP EAN: 8030485730347 Manuf. No.: 70MA0961000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,334.85 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
21.50
Power output - P2 [kW]
11
Capacitor
NO
Maximum flow [l/min]
700
Maximum head [m]
69.40
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Calpeda NR 50/250A/B 400/690V 15kW 2900rpm, in-line centrifugal pump

Product No.: ZB00065938 Sale group: CECP EAN: 8030485871316 Manuf. No.: 70MA1002000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,718.27 €

Not sellable online

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
27.30
Power output - P2 [kW]
15
Capacitor
NO
Maximum flow [l/min]
700
Maximum head [m]
87
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

Product description

Applications

  • For clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%).
  • For heating, conditioning, cooling and circulation plants.
  • For civil and industrial applications.
  • When low noise operation is required (n = 1450 rpm).

Instructions

Technical Specifications

Pump design
vertical
Automatic thermal protection
NO
Maximum current [A]
1.30 - 27.30
Power output - P2 [kW]
0.45 - 15
Capacitor
NO
Maximum flow [l/min]
220 - 750
Maximum head [m]
11.60 - 87
Impeller material
cast iron
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
DN50
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
DN50

{9503C5C0-599E-4D74-9530-64669EDC6C10}

{74F69362-9499-4561-9BCD-9B728A39DDB8}
Calpeda S.p.A.
Via Roggia di Mezzo 39, 36050 Montorso Vicentino, IT
{13991AA5-D921-4185-9F6C-629838AEA0E6} [email protected]
