Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V

  • Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V
    Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V
  • Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V
    Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V
  • Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V
    Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V

previous next
Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V
Calpeda NMM 1 close coupled centrifugal pumps with threaded ports 230V

Close Coupled Centrifugal Pumps with threaded ports See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
3

Show all Tech Specs

on demand check availability

225.57 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001087

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NMM 1/AE 0,37kW 230V 2900rpm

Product No.: ZB00001649 Sale group: CECK EAN: 8030485000013 Manuf. No.: 6011001000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

225.57 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
3
Power output - P2 [kW]
0.37
Capacitor
integrated
Construction
monoblock
Maximum flow [l/min]
70
Maximum head [m]
22
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product description

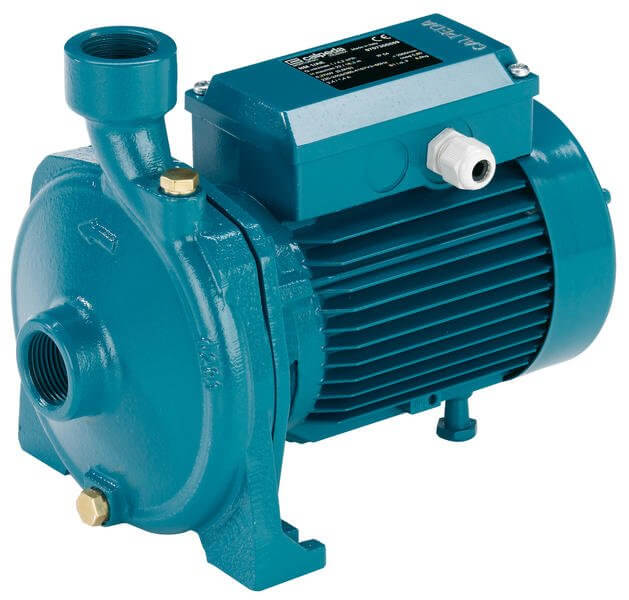

Construction

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.

NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).

Connections: threaded ports ISO 228/1 (BS 2779).

NM, NMD: version with pump casing and lanter bracket in cast iron.

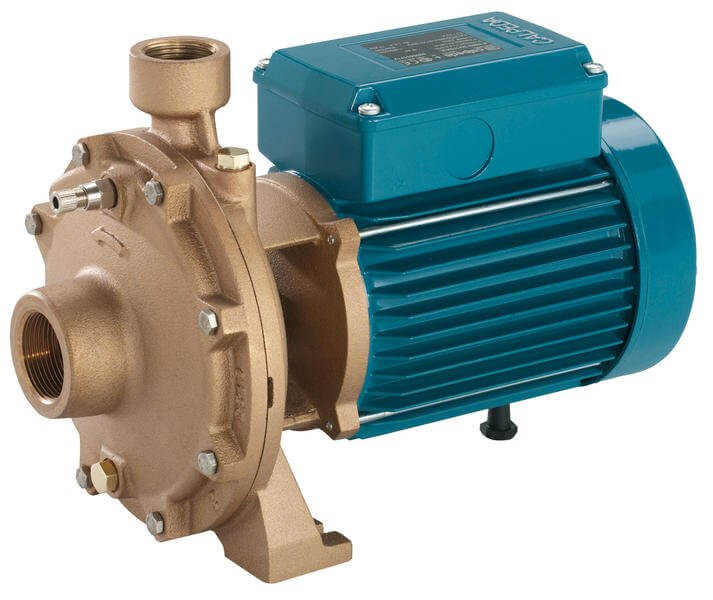

B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
3
Power output - P2 [kW]
0.37
Capacitor
integrated
Construction
monoblock
Maximum flow [l/min]
70
Maximum head [m]
22
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
