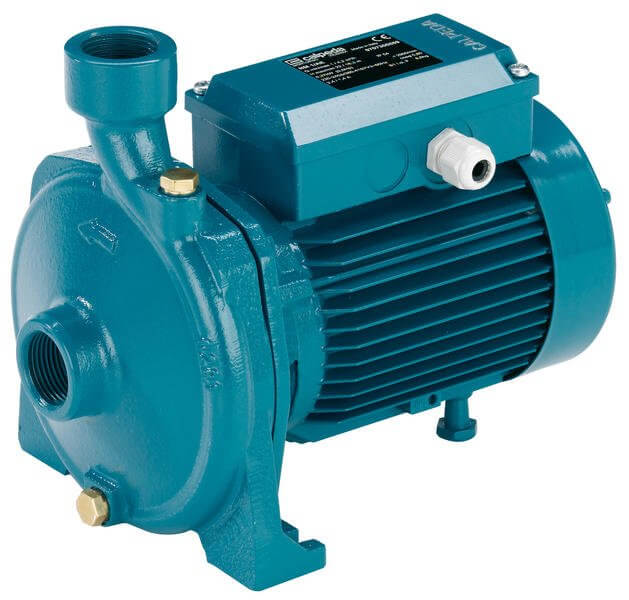

Calpeda NMD 25 close coupled centrifugal pumps with threaded ports 3x400V

Close Coupled Centrifugal Pumps with threaded ports See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
5.30 - 9.60

Show all Tech Specs

on demand check availability

from 864.38 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001239

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NMD 25/190C/B 230/400V 2,2kW 2900rpm

Product No.: ZB00001467 Sale group: CECP EAN: 8030485909415 Manuf. No.: 60200073000

on demand
check availability
Product availability
  • central warehouse 0 pcs

864.38 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
5.30
Power output - P2 [kW]
2.20
Capacitor
NO
Construction
monoblock with double impeller
Maximum flow [l/min]
140
Maximum head [m]
62
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Calpeda NMD 25/190B/A 230/400V 3,0kW 2900rpm

Product No.: ZB00001466 Sale group: CECP EAN: 8030485634935 Manuf. No.: 60200092000

on demand
check availability
Product availability
  • central warehouse 0 pcs

960.74 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
6.60
Power output - P2 [kW]
3
Capacitor
NO
Construction
monoblock with double impeller
Maximum flow [l/min]
160
Maximum head [m]
76
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Calpeda NMD 25/190A/B 400/690V 4,0kW 2900rpm

Product No.: ZB00001465 Sale group: CECP EAN: 8030485893783 Manuf. No.: 60200123000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,173.98 €

Not sellable online

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
9.60
Power output - P2 [kW]
4
Capacitor
NO
Construction
monoblock with double impeller
Maximum flow [l/min]
160
Maximum head [m]
98
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product description

Construction

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.

NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).

Connections: threaded ports ISO 228/1 (BS 2779).

NM, NMD: version with pump casing and lanter bracket in cast iron.

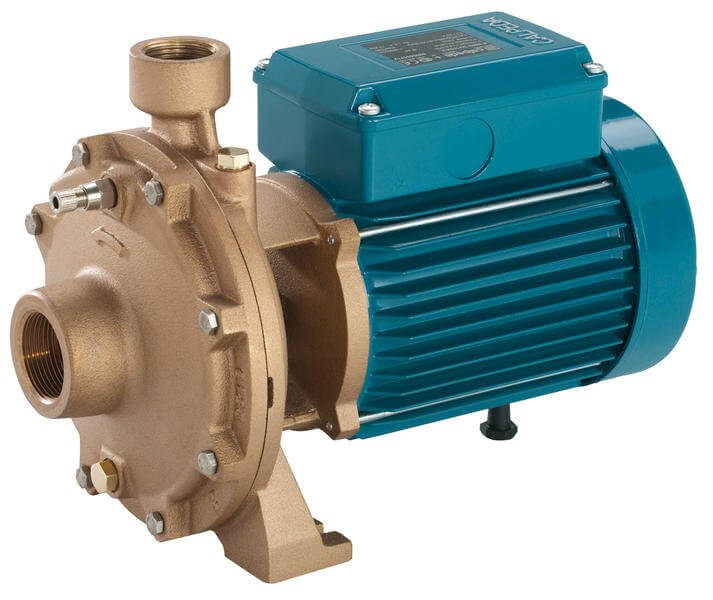

B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
5.30 - 9.60
Power output - P2 [kW]
2.20 - 4
Capacitor
NO
Construction
monoblock with double impeller
Maximum flow [l/min]
140 - 160
Maximum head [m]
62 - 98
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1
