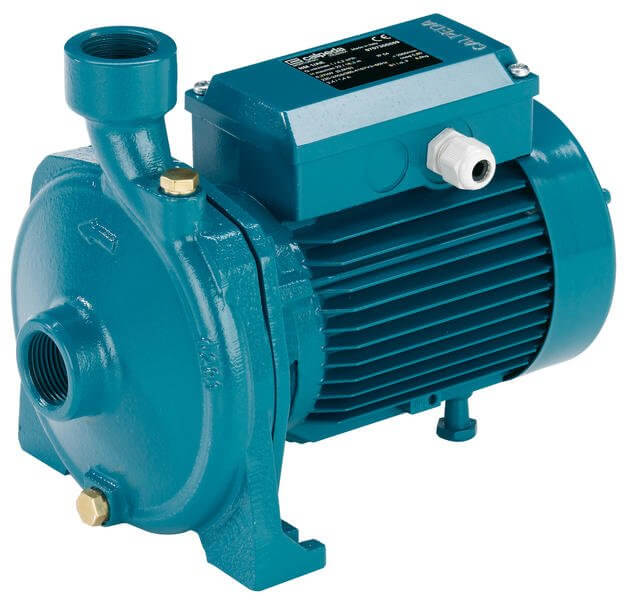

Calpeda NMD 20 close coupled centrifugal pumps with threaded ports 3x400V
Calpeda NMD 20 close coupled centrifugal pumps with threaded ports 3x400V
-
Calpeda NMD 20 close coupled centrifugal pumps with threaded ports 3x400V -
Calpeda NMD 20 close coupled centrifugal pumps with threaded ports 3x400V -
Calpeda NMD 20 close coupled centrifugal pumps with threaded ports 3x400V -
Calpeda NMD 20 close coupled centrifugal pumps with threaded ports 3x400V -
Video
Video
-
Video
Video
previous next
Calpeda NMD 20 close coupled centrifugal pumps with threaded ports 3x400V
Technical Specifications
- Pump design
- horizontal,
- Drinking water certificate
- NO,
- Automatic thermal protection
- NO,
- Maximum current [A]
- 1.30 - 4.30
from 328.25 € VAT included
- Brand:
- CALPEDA
- Category:
- Horizontal surface pumps
- Product No.:
- MAS001238
Product variants
-

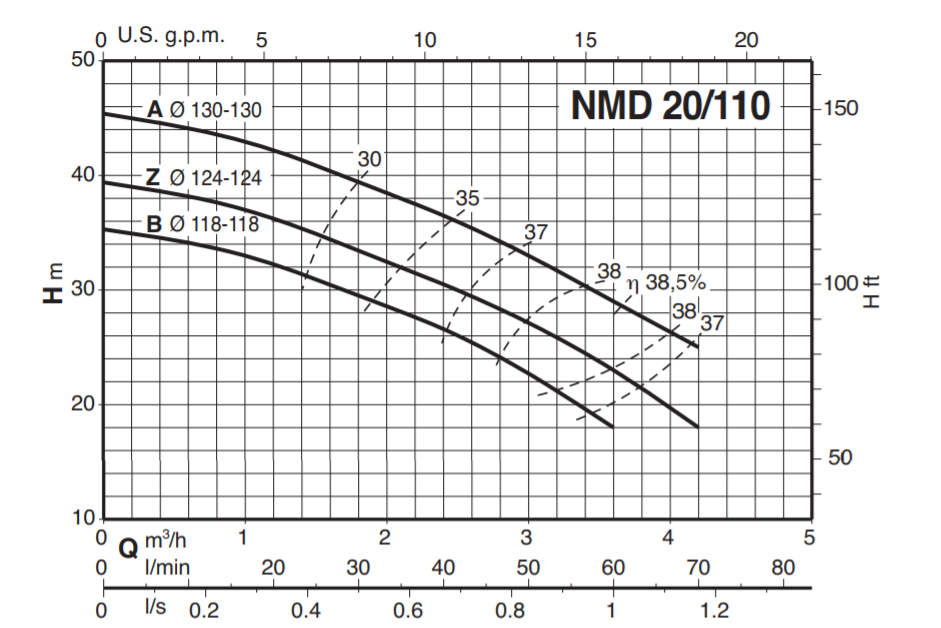

- Calpeda NMD 20/110B/A 230/400V 0,45kW 2900rpm
- ZB00014115
- horizontal
- NO
- NO
- 1.30
- 0.45
- NO
- monoblock with double impeller
- 60
- 33
- brass
- NO
- NO
- 5/4
- 7
- 54
- NO
- 3x400
- 1
-
Product availability
- central warehouse 0 pcs
- 338.14 €
- Check availability
-
- Calpeda NMD 20/110Z/A 230/400V 0,55kW 2900rpm
- ZB00014116
- horizontal
- NO
- NO
- 1.70
- 0.55
- NO
- monoblock with double impeller
- 70
- 37
- brass
- NO
- NO
- 5/4
- 7
- 54
- NO
- 3x400
- 1
-
Product availability
- central warehouse 0 pcs
- 328.25 €
- Check availability
-
- ZB00066859
- 1,566.22 €
- Check availability
-

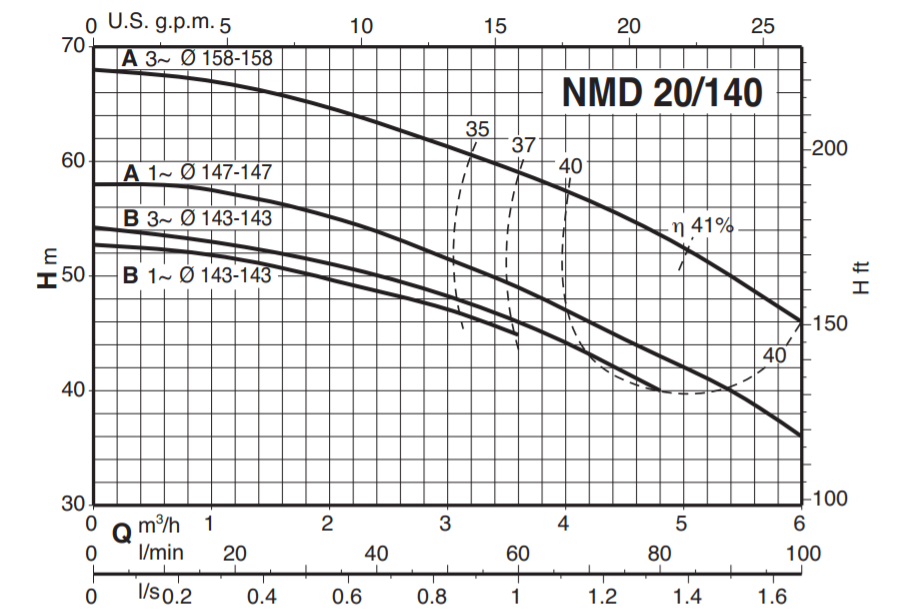

- Calpeda NMD 20/140B/A 1,1kW 230/400V 2900rpm
- ZB00001464
- horizontal
- NO
- NO
- 2.70
- 1.10
- NO
- monoblock with double impeller
- 80
- 53
- brass
- NO
- NO
- 5/4
- 7
- 54
- NO
- 3x400
- 1
-
Product availability
- central warehouse 0 pcs
- 533.99 €
- Not sellable online
-
- Calpeda NMD 20/140A/A 230/400V 1,5kW 2900rpm
- ZB00001518
- horizontal
- NO
- NO
- 4.30
- 1.50
- NO
- monoblock with double impeller
- 100
- 67
- brass
- NO
- NO
- 5/4
- 7
- 54
- NO
- 3x400
- 1
-
Product availability
- central warehouse 0 pcs
- 568.21 €
- Not sellable online
Variant Product No.
Availability
Price (VAT incl.)
Calpeda NMD 20/110B/A 230/400V 0,45kW 2900rpm
Product No.: ZB00014115 Sale group: CECP EAN: 8030485000952 Manuf. No.: 60210012000
338.14 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 1.30
- Power output - P2 [kW]
- 0.45
- Capacitor
- NO
- Construction
- monoblock with double impeller
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 33
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 5/4
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 1
Calpeda NMD 20/110Z/A 230/400V 0,55kW 2900rpm
Product No.: ZB00014116 Sale group: CECP EAN: 8030485000969 Manuf. No.: 60210022000
328.25 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 1.70
- Power output - P2 [kW]
- 0.55
- Capacitor
- NO
- Construction
- monoblock with double impeller
- Maximum flow [l/min]
- 70
- Maximum head [m]
- 37
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 5/4
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 1
Calpeda NMD 20/140B/A 1,1kW 230/400V 2900rpm
Product No.: ZB00001464 Sale group: CECK EAN: 8030485895794 Manuf. No.: 60200044000
533.99 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 2.70
- Power output - P2 [kW]
- 1.10
- Capacitor
- NO
- Construction
- monoblock with double impeller
- Maximum flow [l/min]
- 80
- Maximum head [m]
- 53
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 5/4
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 1
Calpeda NMD 20/140A/A 230/400V 1,5kW 2900rpm
Product No.: ZB00001518 Sale group: CECP EAN: 8030485895978 Manuf. No.: 60200054000
568.21 €
- Pump design
- horizontal
- Drinking water certificate
- NO
- Automatic thermal protection
- NO
- Maximum current [A]
- 4.30
- Power output - P2 [kW]
- 1.50
- Capacitor
- NO
- Construction
- monoblock with double impeller
- Maximum flow [l/min]
- 100
- Maximum head [m]
- 67
- Impeller material
- brass
- Dry run protection
- NO
- Speed control
- NO
- Suction port ["]
- 5/4
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54
- Off switch
- NO
- Input voltage [V]
- 3x400
- Delivery port ["]
- 1
Product description

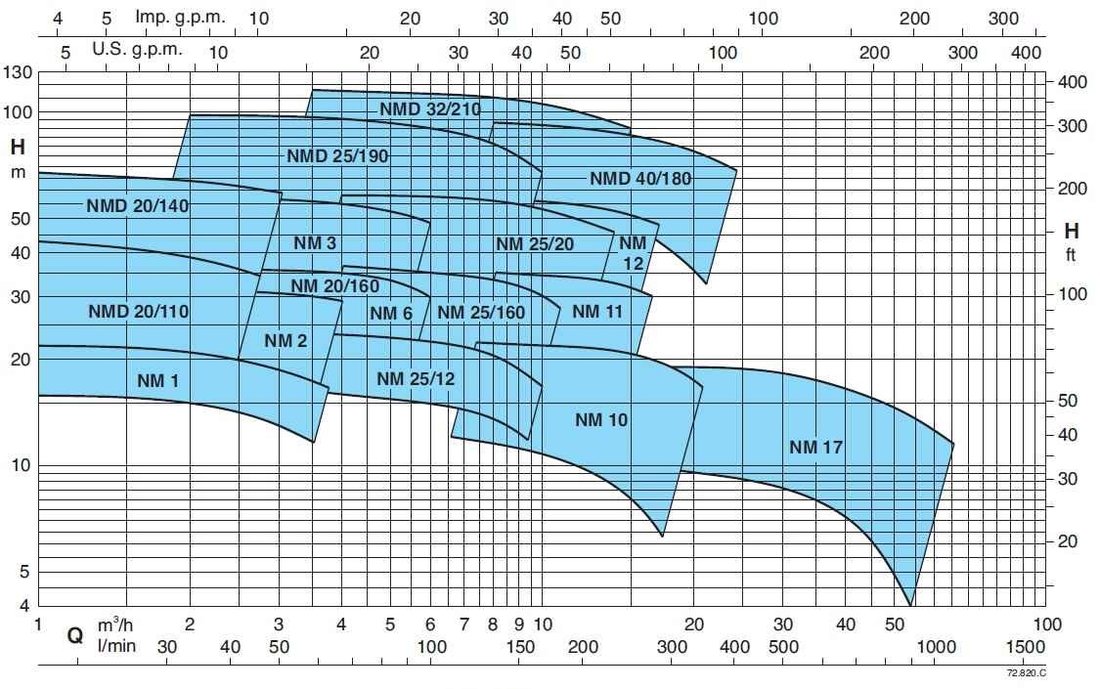

Construction
Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.
NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).
Connections: threaded ports ISO 228/1 (BS 2779).
NM, NMD: version with pump casing and lanter bracket in cast iron.
B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Applications
For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation
Instructions
Technical Specifications
- Pump design
- horizontal,
- Drinking water certificate
- NO,
- Automatic thermal protection
- NO,
- Maximum current [A]
- 1.30 - 4.30
- Power output - P2 [kW]
- 0.45 - 1.50
- Capacitor
- NO,
- Construction
- monoblock with double impeller,
- Maximum flow [l/min]
- 60 - 100
- Maximum head [m]
- 33 - 67
- Impeller material
- brass,
- Dry run protection
- NO,
- Speed control
- NO,
- Suction port ["]
- 5/4,
- Maximum suction lift [m]
- 7
- Protection [IP]
- 54,
- Off switch
- NO,
- Input voltage [V]
- 3x400,
- Delivery port ["]
- 1,
