Calpeda NM 2 close coupled centrifugal pumps with threaded ports 3x400V

Close Coupled Centrifugal Pumps with threaded ports See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.70 - 2.20

Show all Tech Specs

on demand check availability

from 283.35 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS000228

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NM 2/B/A 0,55kW 230/400V 2900rpm

Product No.: ZB00014117 Sale group: CECP EAN: 8030485027652 Manuf. No.: 6002002000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

283.69 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.70
Power output - P2 [kW]
0.55
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
80
Maximum head [m]
27
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Calpeda NM 2/S/A 0,55kW 230/400V 2900rpm

Product No.: ZB00014053 Sale group: CECK EAN: 8030485000259 Manuf. No.: 6002003000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

283.35 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.70
Power output - P2 [kW]
0.55
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
80
Maximum head [m]
31
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Calpeda NM 2/A/B 0,75kW 230/400V 2900rpm

Product No.: ZB00001548 Sale group: CECK EAN: 8030485896777 Manuf. No.: 6002004100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

295.24 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
2.20
Power output - P2 [kW]
0.75
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
100
Maximum head [m]
34
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1

Product description

Construction

Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.

NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).

Connections: threaded ports ISO 228/1 (BS 2779).

NM, NMD: version with pump casing and lanter bracket in cast iron.

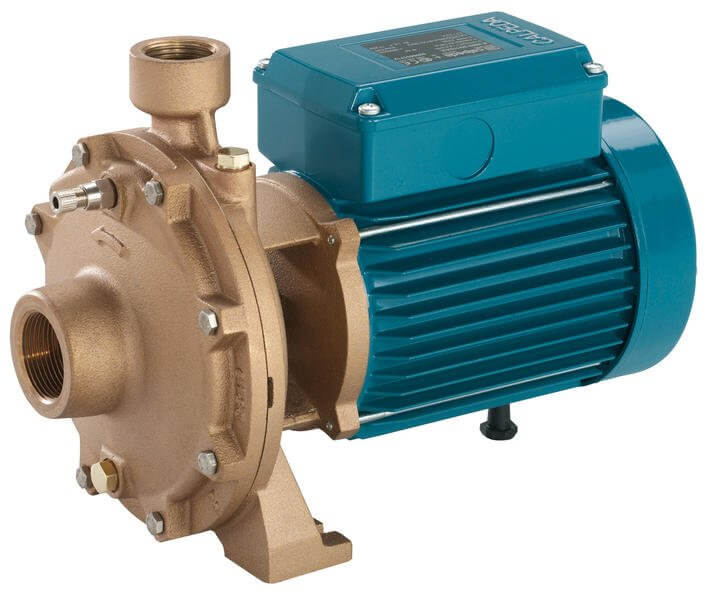

B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
NO
Maximum current [A]
1.70 - 2.20
Power output - P2 [kW]
0.55 - 0.75
Capacitor
NO
Construction
monoblock
Maximum flow [l/min]
80 - 100
Maximum head [m]
27 - 34
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
3x400
Delivery port ["]
1
