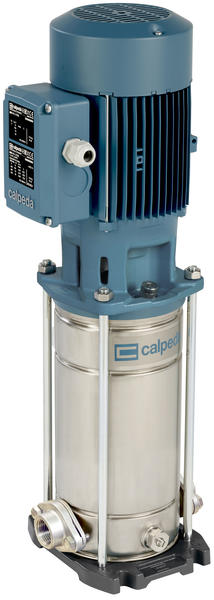

Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V

  • Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V
    Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V
  • Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V
    Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V

previous next
Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V
Calpeda MXV-B 25-3xx vertical multi-stage close coupled pumps in stainless steel 3x400V

Vertical Multi-Stage Close Coupled Pumps See more

on demand check availability

from 987.62 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Vertical surface pumps
Product No.:
MAS001465

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Capacitor
  • Construction
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Product description

Construction

Vertical multi-stage close coupled pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line).
All parts that come into contact with the liquid, including wet-end covers, are in chrome-nickel stainless steel with corrosionresistant bearing sleeves lubricated by the pumped liquid.

Applications

- For water supply systems.
- For clean non-explosive liquids, without solid, filamentary or abrasive matter and non-aggressive for stainless steel (with adaptation of sealing materials on request).
- A universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations.
