Calpeda MXHM 4xx horizontal multi-stage stainless steel pumps 230V

Horizontal Multi-Stage Close Coupled Pumps in stainless steel

See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
3 - 9.20

Show all Tech Specs

on demand check availability

from 346.34 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001296

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00070326
    • horizontal
    • YES
    • YES
    • 4.20
    • 0.55
    • integrated
    • multi-stage
    • 133
    • 33
    • stainless steel
    • NO
    • NO
    • 5/4
    • 8
    • 54
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 459.49 €
    • Check availability
    • ZB00070317
    • horizontal
    • YES
    • YES
    • 5.40
    • 0.75
    • integrated
    • multi-stage
    • 133
    • 45
    • stainless steel
    • NO
    • NO
    • 5/4
    • 8
    • 54
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 471.39 €
    • Check availability
    • ZB00070322
    • horizontal
    • YES
    • YES
    • 7.40
    • 1.10
    • integrated
    • multi-stage
    • 133
    • 57
    • stainless steel
    • NO
    • NO
    • 5/4
    • 8
    • 54
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 650.84 €
    • Check availability
    • Calpeda MXHM 406 230V 1,5kW
    • ZB00040315
    • horizontal
    • YES
    • YES
    • 9.20
    • 1.50
    • integrated
    • multi-stage
    • 133
    • 69
    • stainless steel
    • NO
    • NO
    • 5/4
    • 8
    • 54
    • NO
    • 230
    • 1
    • on demand
      check availability
      Product availability
      • central warehouse 0 pcs
    • 762.39 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda MXHM 402E 230V 0,45kW

Product No.: ZB00001607 Sale group: CECP EAN: 8030485008576 Manuf. No.: 62311021000

on demand
check availability
Product availability
  • central warehouse 0 pcs

346.34 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
3
Power output - P2 [kW]
0.45
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
133
Maximum head [m]
23
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00070326 Sale group: CECP Manuf. No.: 62341031000

on demand
check availability

459.49 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
4.20
Power output - P2 [kW]
0.55
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
133
Maximum head [m]
33
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00070317 Sale group: CECP Manuf. No.: 62341041000

on demand
check availability

471.39 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
5.40
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
133
Maximum head [m]
45
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00070322 Sale group: CECP Manuf. No.: 62331051000

on demand
check availability

650.84 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
7.40
Power output - P2 [kW]
1.10
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
133
Maximum head [m]
57
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Calpeda MXHM 406 230V 1,5kW

Product No.: ZB00040315 Sale group: CECP EAN: 8030485288145 Manuf. No.: 62321061000

on demand
check availability
Product availability
  • central warehouse 0 pcs

762.39 €

Check availability

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
9.20
Power output - P2 [kW]
1.50
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
133
Maximum head [m]
69
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

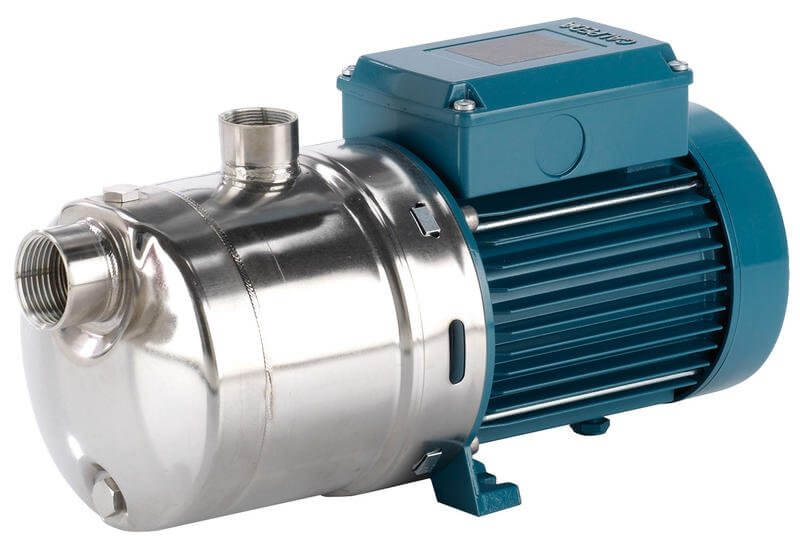

Product description

Construction

Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel.
Compact and robust construction, without protruding flange and with single-piece lantern bracket and base.
Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top.
Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box).

Applications

- For water supply.
- For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
- Universal pump, for civil and industrial applications, for garden use and irrigation.



Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
YES
Automatic thermal protection
YES
Maximum current [A]
3 - 9.20
Power output - P2 [kW]
0.45 - 1.50
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
133
Maximum head [m]
23 - 69
Impeller material
stainless steel
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
5/4
Maximum suction lift [m]
8
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
