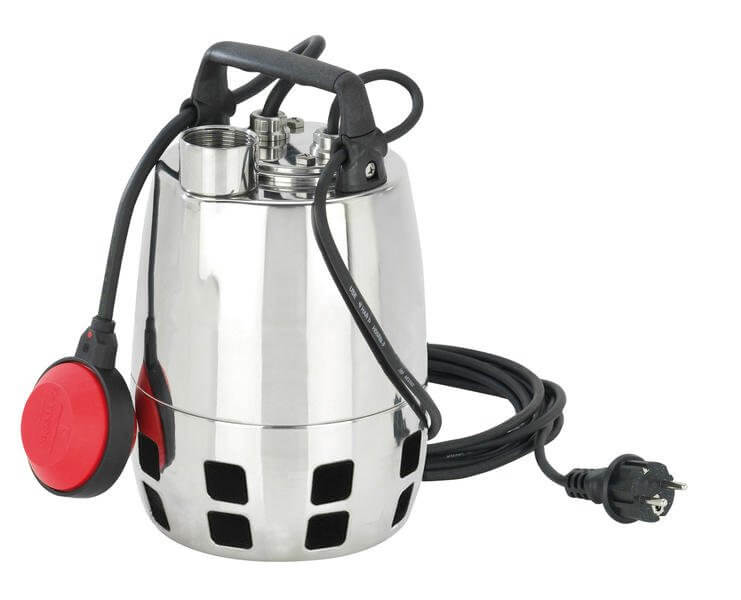

Calpeda GXVM submersible drainage pumps in stainless steel

Submersible Pumps in stainless steel FLOW 1.2 / 13.2 mc/h HEAD 1.7 / 12.7 m POWER 0.25 / 0.6 kW

See more

Technical Specifications

Automatic thermal protection
YES
Cable length [m]
5 - 10
Maximum immersion depth [m]
5
Maximum current [A]
2.50 - 4.50

Show all Tech Specs

in stock >10 pcs

from 310.83 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
MAS000253

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum immersion depth [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda GXVM 25-6 0,25kW 230V submersible drainage pump with float switch, cable 10m

Product No.: ZB00001805 Sale group: CEPJ Manuf. No.: 72U10300001

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

342.15 €

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
2,50
Power output - P2 [kW]
0,25
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
170
Maximum head [m]
6
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Calpeda GXVM 25-6 0,25kW 230V submersible drainage pump with float switch, cable 5m

Product No.: ZB00025456 Sale group: CECK EAN: 8030485521877 Manuf. No.: 72U10300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

310.83 €

Check availability

Automatic thermal protection
YES
Cable length [m]
5
Maximum immersion depth [m]
5
Maximum current [A]
2,50
Power output - P2 [kW]
0,25
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
170
Maximum head [m]
6
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

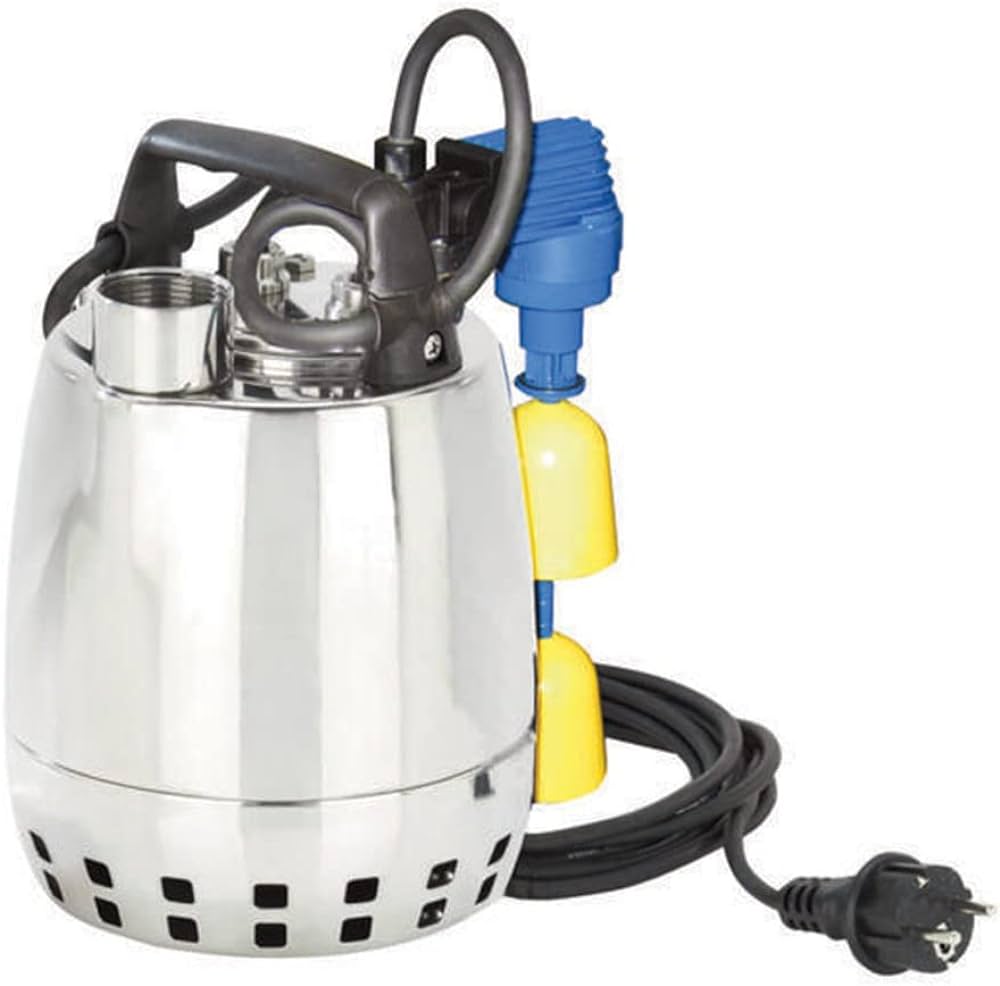

Calpeda GXVM 25-6 GFA 0,25kW 230V submersible drainage pump with magnetic float switch, cable 5m

Product No.: ZB00025455 Sale group: CECK EAN: 8030485522812 Manuf. No.: 72U10300003

on demand
check availability
Product availability
  • central warehouse 0 pcs

344.48 €

Check availability

Automatic thermal protection
YES
Cable length [m]
5
Maximum immersion depth [m]
5
Maximum current [A]
2,50
Power output - P2 [kW]
0,25
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
170
Maximum head [m]
6
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Calpeda GXVM 25-8 0,37kW 230V submersible drainage pump with float switch, cable 5m

Product No.: ZB00025460 Sale group: CECK EAN: 8030485521822 Manuf. No.: 72U10350000

on demand
check availability
Product availability
  • central warehouse 0 pcs

355.18 €

Check availability

Automatic thermal protection
YES
Cable length [m]
5
Maximum immersion depth [m]
5
Maximum current [A]
3,50
Power output - P2 [kW]
0,37
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
200
Maximum head [m]
8,20
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Calpeda GXVM 25-8 0,37kW 230V submersible drainage pump with float switch, cable 10m

Product No.: ZB00001806 Sale group: CEPJ Manuf. No.: 72U10350001

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

370.34 €

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
3,50
Power output - P2 [kW]
0,37
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
200
Maximum head [m]
8,20
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Calpeda GXVM 25-8 GFA 0,37kW 230V submersible drainage pump with magnetic float switch, cable 5m

Product No.: ZB00001808 Sale group: CECK EAN: 8030485521884 Manuf. No.: 72U10350002

on demand
check availability
Product availability
  • central warehouse 0 pcs

390.38 €

Check availability

Automatic thermal protection
YES
Cable length [m]
5
Maximum immersion depth [m]
5
Maximum current [A]
3,50
Power output - P2 [kW]
0,37
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
200
Maximum head [m]
8,20
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Calpeda GXVM 25-10 0,45kW 230V submersible drainage pump with float switch, cable 5m

Product No.: ZB00025451 Sale group: CECK EAN: 8030485518341 Manuf. No.: 72U10400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

419.49 €

Check availability

Automatic thermal protection
YES
Cable length [m]
5
Maximum immersion depth [m]
5
Maximum current [A]
4,50
Power output - P2 [kW]
0,45
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
220
Maximum head [m]
10
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Calpeda GXVM 25-10 230V 0,45kW submersible drainage pump with float switch, cable 10m

Product No.: ZB00001807 Sale group: CEPJ Manuf. No.: 72U10400001

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

394.52 €

Automatic thermal protection
YES
Cable length [m]
10
Maximum immersion depth [m]
5
Maximum current [A]
4,50
Power output - P2 [kW]
0,45
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
220
Maximum head [m]
10
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Calpeda GXVM 25-10 GFA 0,45kW 230V submersible drainage pump with magnetic float switch, cable 5m

Product No.: ZB00001809 Sale group: CECK EAN: 8030485521891 Manuf. No.: 72U10400003

on demand
check availability
Product availability
  • central warehouse 0 pcs

459.30 €

Check availability

Automatic thermal protection
YES
Cable length [m]
5
Maximum immersion depth [m]
5
Maximum current [A]
4,50
Power output - P2 [kW]
0,45
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
220
Maximum head [m]
10
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4

Product description

Construction

Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
Minimum dimension and high levels of performance, for use in many different applications, head up to 12,7 m and flow rates up to 220 liters/min.

Applications

- For clean water containing solids up to 10 mm grain size.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and
for rainwater collection.
- For irrigation purposes.
For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Instructions

Technical Specifications

Automatic thermal protection
YES
Cable length [m]
5 - 10
Maximum immersion depth [m]
5
Maximum current [A]
2.50 - 4.50
Power output - P2 [kW]
0.25 - 0.45
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
170 - 220
Maximum head [m]
6 - 10
Impeller material
stainless steel
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
25
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
Delivery port ["]
5/4
