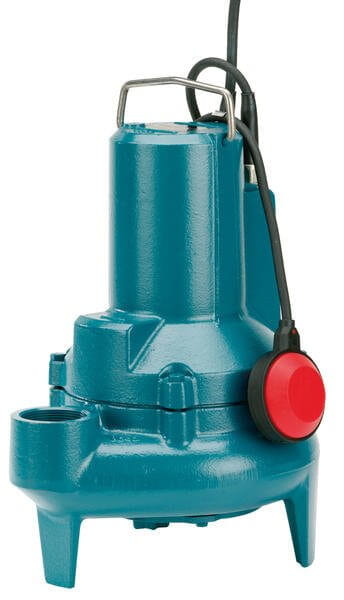

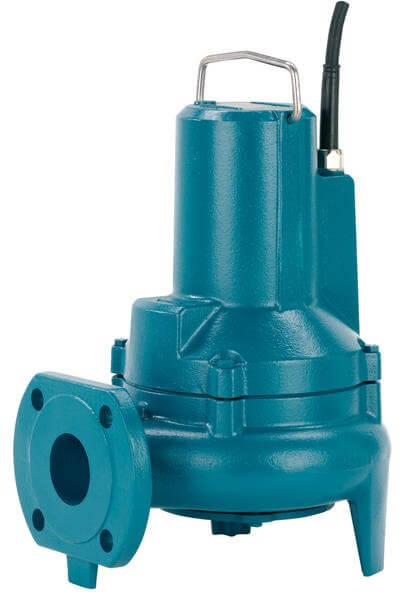

Calpeda GMVM submersible drainage pump 230V

Submersible Pumps FLOW 1 / 3000 mc/h HEAD 3 / 66 m POWER 1.4 / 84.1 kW

See more

Technical Specifications

Automatic thermal protection
YES
Maximum current [A]
6.50
Power output - P2 [kW]
1.10
Capacitor
integrated

Show all Tech Specs

on demand check availability

1,299.45 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
MAS001100

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Speed ​​control
  • Grinder
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda GMVM 50 BE 230V 1,1kW submersible drainage pump with float switch, 10m cable

Product No.: ZB00014205 Sale group: CECP EAN: 8030485011729 Manuf. No.: 70U20111000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,299.45 €

Check availability

Automatic thermal protection
YES
Maximum current [A]
6.50
Power output - P2 [kW]
1.10
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
583
Maximum head [m]
10.70
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
50
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230

Product description

Construction

A series of submersible pumps with high efficiency hydraulics designed to move slurry, sewage and industrial process fluids.
The range covers a wide field of use with head up to 75 m And flows up to 2300 m3/h, with a maximum solid passage up to 140 mm keeping the risk of blockage to a minimum.
Dimensionally designed for heavy demand, even on critical applications.
Explosion proof version on request.

Instructions

Technical Specifications

Automatic thermal protection
YES
Maximum current [A]
6.50
Power output - P2 [kW]
1.10
Capacitor
integrated
Construction
submersible
Maximum flow [l/min]
583
Maximum head [m]
10.70
Dry run protection
NO
Float switch
YES
Maximum particle size [mm]
50
Speed ​​control
NO
Grinder
NO
Protection [IP]
X8
Input voltage [V]
230
