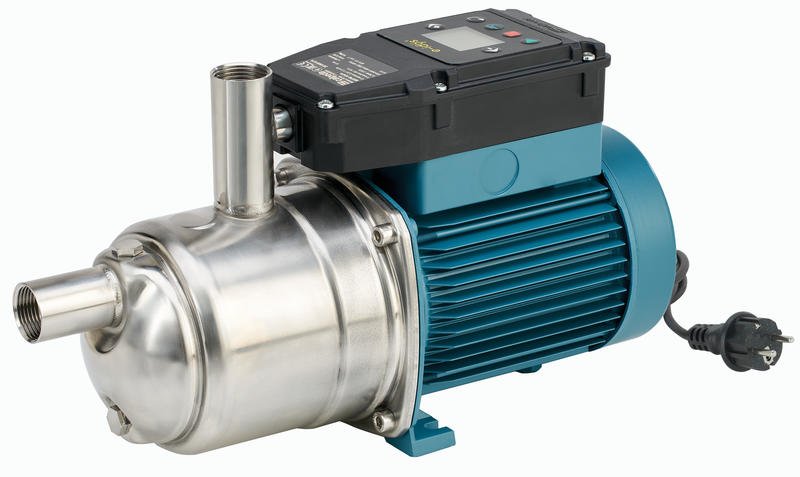

Calpeda e-idos E-MXAM 4xx

Pressurized system with integrated pressure control
(Multi-stage Self-Priming Pump) See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1.50

Show all Tech Specs

on demand check availability

from 470.60 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001283

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Cable length [m]
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda E-MXAM 403-PCD 0,55kW 230V

Product No.: ZB00061605 Sale group: CECK EAN: 8030485998471 Manuf. No.: T663A10310D0

on demand
check availability
Product availability
  • central warehouse 0 pcs

470.60 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1.50
Maximum current [A]
3.80
Power output - P2 [kW]
0.55
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
100
Maximum head [m]
33.80
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
1
Maximum suction lift [m]
6
Protection [IP]
X4
Off switch
YES
Input voltage [V]
230
Delivery port ["]
1

Calpeda E-MXAM 404-PCD 0,75kW 230V

Product No.: ZB00061606 Sale group: CECK EAN: 8030485238898 Manuf. No.: T663A10410D0

on demand
check availability
Product availability
  • central warehouse 0 pcs

513.33 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1.50
Maximum current [A]
4.80
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
108.30
Maximum head [m]
44.50
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
1
Maximum suction lift [m]
6
Protection [IP]
X4
Off switch
YES
Input voltage [V]
230
Delivery port ["]
1

Product description

Construction

Pressurized system with integrated pressure control.
Easy to install and Compact plug and play booster set.
Brand new asynchronous single-phase motor.

Equipped with pressure transducer, non-return valve, controlled starting current and temperature.

Equipped with a programmable software and, thanks to the analogic pressure sensor, the product allows to set the re-start pressure.
An ideal solution which allows to reduce or remove the need of a expansion tank.

Features

  • high efficiency asynchronous single-phase motor
  • capacitor not stressed in voltage
  • uniform and lower motor temperature
  • motor power control
  • programmable re-start pressure
  • no hydraulic losses due to the measuring devices
  • voltage and current control
  • monitoring of maximum starting current
  • elimination of water hammer

Protections

  • dry-run protection
  • air detection in the pump and in the filling cycle
  • overload control and overheating motor control
  • pump blockage
  • overcurrent protection
  • power supply control
  • system leakage control
  • high flow rate and piping failure detection

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Cable length [m]
1.50
Maximum current [A]
3.80 - 4.80
Power output - P2 [kW]
0.55 - 0.75
Capacitor
integrated
Construction
multi-stage
Maximum flow [l/min]
100 - 108.30
Maximum head [m]
33.80 - 44.50
Impeller material
noryl
Dry run protection
YES
Speed ​​control
YES
Suction port ["]
1
Maximum suction lift [m]
6
Protection [IP]
X4
Off switch
YES
Input voltage [V]
230
Delivery port ["]
1
