Calpeda CTM 61 close-coupled peripheral pump 230V

Peripheral Pumps FLOW 0.48 / 2.3 mc/h HEAD 3 / 41 m POWER 0.33 kW

See more

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
2.50

Show all Tech Specs

on demand check availability

from 136.30 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS000245

Product variants

  • Technical Specifications
  • Product No.
  • Pump design
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Speed ​​control
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price
    • ZB00070333
    • horizontal
    • NO
    • YES
    • 2.50
    • 0.33
    • integrated
    • monoblock
    • 38
    • 41
    • brass
    • NO
    • NO
    • 1
    • 7
    • 54
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 136.30 €
    • Check availability
    • ZB00070311
    • horizontal
    • NO
    • YES
    • 2.50
    • 0.33
    • integrated
    • monoblock
    • 38
    • 41
    • bronze
    • NO
    • NO
    • 1
    • 7
    • 54
    • NO
    • 230
    • 1
    • on demand
      check availability
    • 328.86 €
    • Check availability

next

Variant Product No.

Availability

Price (VAT incl.)

Product No.: ZB00070333 Sale group: CEPJ Manuf. No.: 70320011000

on demand
check availability

136.30 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
2.50
Power output - P2 [kW]
0.33
Capacitor
integrated
Construction
monoblock
Maximum flow [l/min]
38
Maximum head [m]
41
Impeller material
brass
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product No.: ZB00070311 Sale group: CEPJ Manuf. No.: 71320011000

on demand
check availability

328.86 €

Check availability

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
2.50
Power output - P2 [kW]
0.33
Capacitor
integrated
Construction
monoblock
Maximum flow [l/min]
38
Maximum head [m]
41
Impeller material
bronze
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1

Product description

Construction

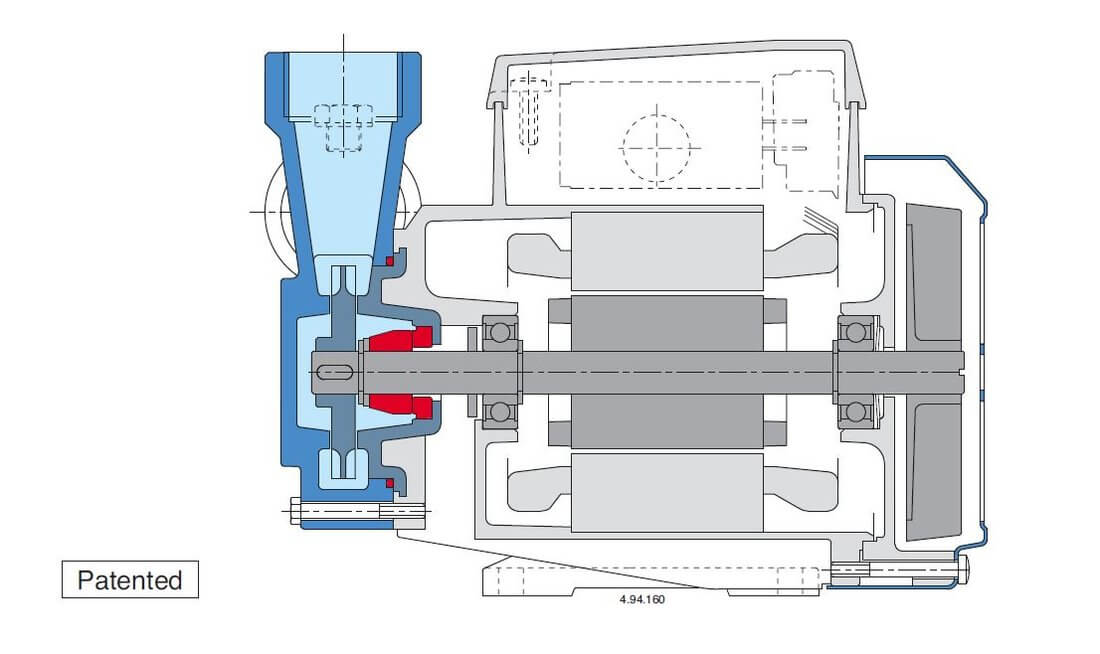

Close-coupled peripheral pump (regenerative pump) with turbine impeller. Compact, patented construction with singlepiece motor casing and pump-side wall.
Protected against water entering the motor from outside.
CT: version with pump casing in cast iron.
B-CT: version with pump casing in bronze (the pumps are supplied fully painted).

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
- For increasing network pressure (follow local specifications).
- For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation.

Instructions

Technical Specifications

Pump design
horizontal
Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
2.50
Power output - P2 [kW]
0.33
Capacitor
integrated
Construction
monoblock
Maximum flow [l/min]
38
Maximum head [m]
41
Impeller material
brass, bronze
Dry run protection
NO
Speed ​​control
NO
Suction port ["]
1
Maximum suction lift [m]
7
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
1
