Calpeda AM self-priming centrifugal pump with an open impeller 230V

  • Calpeda AM self-priming centrifugal pump with an open impeller 230V
    Calpeda AM self-priming centrifugal pump with an open impeller 230V
  • Calpeda AM self-priming centrifugal pump with an open impeller 230V
    Calpeda AM self-priming centrifugal pump with an open impeller 230V
  • Calpeda AM self-priming centrifugal pump with an open impeller 230V
    Calpeda AM self-priming centrifugal pump with an open impeller 230V
  • Calpeda AM self-priming centrifugal pump with an open impeller 230V
    Calpeda AM self-priming centrifugal pump with an open impeller 230V

previous next
Calpeda AM self-priming centrifugal pump with an open impeller 230V Calpeda AM self-priming centrifugal pump with an open impeller 230V Calpeda AM self-priming centrifugal pump with an open impeller 230V Calpeda AM self-priming centrifugal pump with an open impeller 230V
Calpeda AM self-priming centrifugal pump with an open impeller 230V

Self-Priming Centrifugal Pumps with open impeller See more

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
4.50 - 9.20
Power output - P2 [kW]
0.55 - 1.50

Show all Tech Specs

on demand check availability

from 563.17 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
MAS001094

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Automatic thermal protection
  • Maximum current [A]
  • Power output - P2 [kW]
  • Capacitor
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Maximum particle size [mm]
  • Speed ​​control
  • Grinder
  • Suction port ["]
  • Maximum suction lift [m]
  • Protection [IP]
  • Off switch
  • Input voltage [V]
  • Delivery port ["]
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda AM 40-110B/A 230V 0,55kW

Product No.: ZB00001803 Sale group: CECP Manuf. No.: 60G00342000

on demand
check availability
Product availability
  • central warehouse 0 pcs

563.17 €

Not sellable online

Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
4.50
Power output - P2 [kW]
0.55
Capacitor
integrated
Construction
self priming
Maximum flow [l/min]
300
Maximum head [m]
12.90
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
10
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
6
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4

Calpeda AM 40-110A/A 230V 0,75kW

Product No.: ZB00014285 Sale group: CECP Manuf. No.: 60G00382000

on demand
check availability
Product availability
  • central warehouse 0 pcs

614.73 €

Not sellable online

Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
6
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
surface
Maximum flow [l/min]
300
Maximum head [m]
15.40
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
6
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4

Calpeda AM 50-125CE 230V 0,75kW

Product No.: ZB00014028 Sale group: CECP Manuf. No.: 60G00822000

on demand
check availability
Product availability
  • central warehouse 0 pcs

810.05 €

Not sellable online

Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
5.80
Power output - P2 [kW]
0.75
Capacitor
integrated
Construction
surface
Maximum flow [l/min]
550
Maximum head [m]
12.80
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Suction port ["]
2
Maximum suction lift [m]
6
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
2

Calpeda AM 50-125BE 230V 1,1kW

Product No.: ZB00001595 Sale group: CECP Manuf. No.: 60G00862000

on demand
check availability
Product availability
  • central warehouse 0 pcs

841.46 €

Not sellable online

Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
7.40
Power output - P2 [kW]
1.10
Capacitor
integrated
Construction
surface
Maximum flow [l/min]
500
Maximum head [m]
15.50
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
6
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4

Calpeda AM 50-125AE 230V 1,5kW

Product No.: ZB00014067 Sale group: CECP EAN: 8030485006190 Manuf. No.: 60G00901000

on demand
check availability
Product availability
  • central warehouse 0 pcs

880.72 €

Not sellable online

Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
9.20
Power output - P2 [kW]
1.50
Capacitor
integrated
Construction
surface
Maximum flow [l/min]
550
Maximum head [m]
19.50
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Speed ​​control
NO
Suction port ["]
6/4
Maximum suction lift [m]
6
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4

Product description

Construction


Close-coupled centrifugal pumps with open impeller.
The built-in backflow preventer avoids reverse siphoning when the pump is stopped and assures automatic re-priming at the next start.
The pump re-primes itself even if partially filled with liquid and with completely empty suction pipe.
A: version with pump casing and lanter bracket in cast iron.

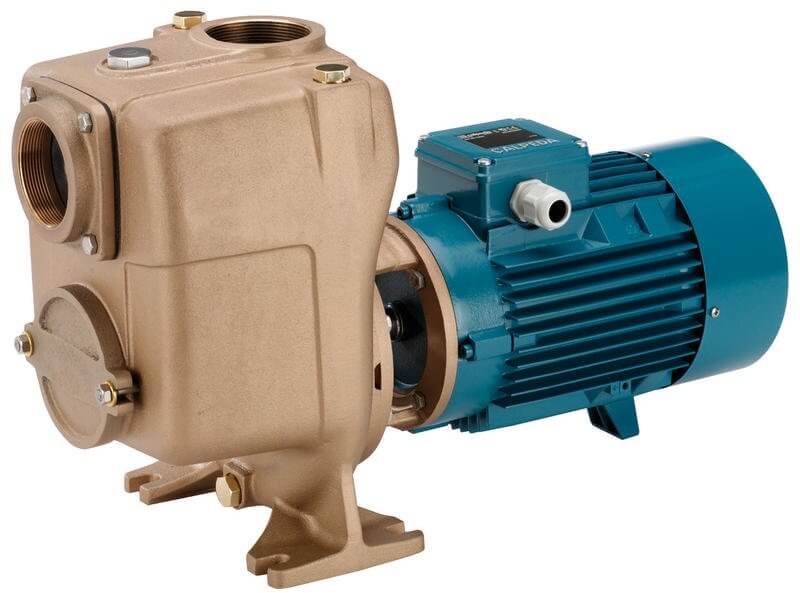

B-A: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

  • For clean or slightly dirty water, also with solids up to 10 mm grain size for A 40, A 50 and 15 mm for A 65, A 80
  • For draining a basin or a sump
  • For irrigation. For civil and industrial applications

Instructions

Technical Specifications

Drinking water certificate
NO
Automatic thermal protection
YES
Maximum current [A]
4.50 - 9.20
Power output - P2 [kW]
0.55 - 1.50
Capacitor
integrated
Construction
self priming, surface
Maximum flow [l/min]
300 - 550
Maximum head [m]
12.80 - 19.50
Impeller material
cast iron
Dry run protection
NO
Float switch
NO
Maximum particle size [mm]
10
Speed ​​control
NO
Suction port ["]
6/4, 2
Maximum suction lift [m]
6
Protection [IP]
54
Off switch
NO
Input voltage [V]
230
Delivery port ["]
6/4, 2
