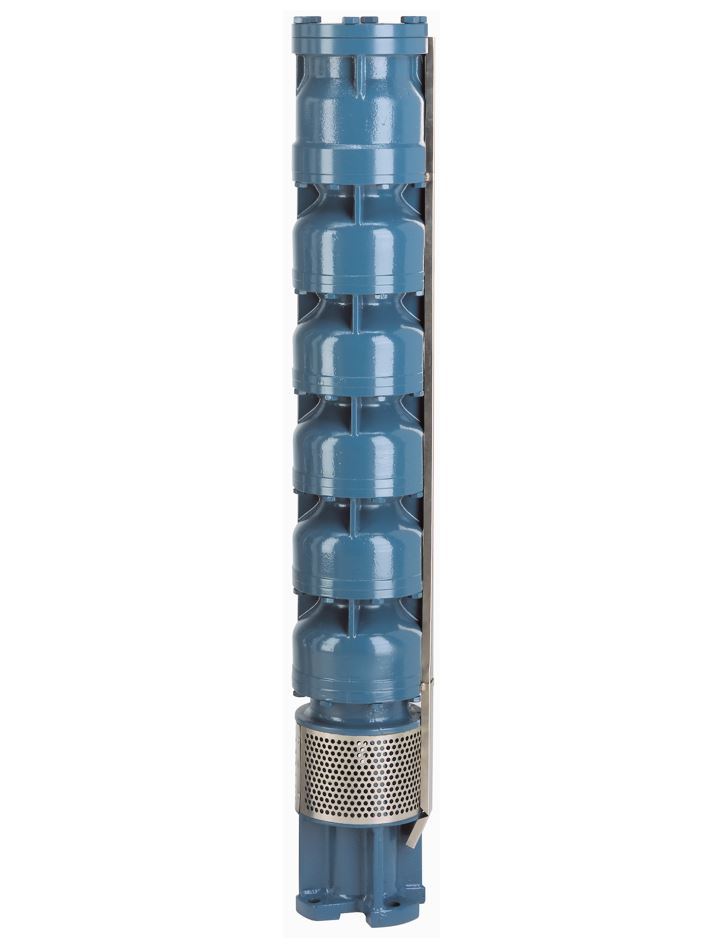

Calpeda 8 SDS 150 hydraulic part without motor

  • Calpeda 8 SDS 150 hydraulic part without motor
    Calpeda 8 SDS 150 hydraulic part without motor
  • Calpeda 8 SDS 150 hydraulic part without motor
    Calpeda 8 SDS 150 hydraulic part without motor
  • Calpeda 8 SDS 150 hydraulic part without motor
    Calpeda 8 SDS 150 hydraulic part without motor

previous next
Calpeda 8 SDS 150 hydraulic part without motor Calpeda 8 SDS 150 hydraulic part without motor Calpeda 8 SDS 150 hydraulic part without motor
Calpeda 8 SDS 150 hydraulic part without motor

Submersible borehole pumps for 8” wells See more

Technical Specifications

Drinking water certificate
NO
Power output - P2 [kW]
7.50 - 110
Construction
centrifugal
Maximum flow [l/min]
3,000

Show all Tech Specs

on demand check availability

from 1,490.65 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Submersible borehole pumps
Product No.:
MAS001278

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Power output - P2 [kW]
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Pump diameter ["]
  • Maximum borehole diameter [mm]
  • Input voltage [V]
  • Delivery port ["]
  • Check valve
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda 8 SDS 150/01 hydraulic part without motor (7,5kW)

Product No.: ZB00014177 Sale group: CECP EAN: 8030485049463 Manuf. No.: 40SS0100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,490.65 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
7.50
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
18
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/02 hydraulic part without motor (15kW)

Product No.: ZB00024595 Sale group: CECP EAN: 8030485117933 Manuf. No.: 40SS0200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,895.92 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
15
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
36
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/03 hydraulic part without motor (22kW)

Product No.: ZB00024596 Sale group: CECP EAN: 8030485054108 Manuf. No.: 40SS0300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,241.13 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
22
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
54
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/04 hydraulic part without motor (30kW)

Product No.: ZB00024597 Sale group: CECP EAN: 8030485144847 Manuf. No.: 40SS0400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,629.87 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
30
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
72
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/05 hydraulic part without motor (37kW)

Product No.: ZB00024598 Sale group: CECP EAN: 8030485048510 Manuf. No.: 40SS0500000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,119.84 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
37
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
90
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/06 hydraulic part without motor (45kW)

Product No.: ZB00024599 Sale group: CECP EAN: 8030485096948 Manuf. No.: 40SS0600000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,662.63 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
45
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
108
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/07 hydraulic part without motor (51-55kW)

Product No.: ZB00024600 Sale group: CECP EAN: 8030485160298 Manuf. No.: 40SS0700000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,056.45 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
51
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
126
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/08 hydraulic part without motor (59-75kW)

Product No.: ZB00024601 Sale group: CECP EAN: 8030485122906 Manuf. No.: 40SS0800000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,450.27 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
59
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
144
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/09 hydraulic part without motor (66-75kW)

Product No.: ZB00024602 Sale group: CECP EAN: 8030485352235 Manuf. No.: 40SS0900000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,647.76 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
66
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
162
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/10 hydraulic part without motor (75kW)

Product No.: ZB00024589 Sale group: CECP EAN: 8030485211051 Manuf. No.: 40SS1000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,349.69 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
75
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
180
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/11 hydraulic part without motor (92kW)

Product No.: ZB00024590 Sale group: CECP EAN: 8030485512141 Manuf. No.: 40SS1100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,753.91 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
92
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
198
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/12 hydraulic part without motor (92kW)

Product No.: ZB00024591 Sale group: CECP EAN: 8030485312765 Manuf. No.: 40SS1200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,158.03 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
92
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
216
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/13 hydraulic part without motor (110kW)

Product No.: ZB00024592 Sale group: CECP Manuf. No.: 40SS1300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,568.45 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
110
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
234
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/14 hydraulic part without motor (110kW)

Product No.: ZB00024593 Sale group: CECP EAN: 8030485802488 Manuf. No.: 40SS1400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,967.49 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
110
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
252
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Calpeda 8 SDS 150/15 hydraulic part without motor (110kW)

Product No.: ZB00024594 Sale group: CECP EAN: 8030485749813 Manuf. No.: 40SS1500000

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,372.73 €

Not sellable online

Drinking water certificate
NO
Power output - P2 [kW]
110
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
270
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125

Product description

Construction

Submersible borehole pumps for 8” (DN 200 mm), with stages in cast iron or in bronze, on request.
Impellers: mixed flow impellers.
Connection: flange with counter-flange for welding
Delivery casing with built-in non-return valve.

Applications

- For water supply.
- For civil and industrial applications.
- For fire fighting applications.
- For irrigation.

Instructions

Technical Specifications

Drinking water certificate
NO
Power output - P2 [kW]
7.50 - 110
Construction
centrifugal
Maximum flow [l/min]
3,000
Maximum head [m]
18 - 270
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
8
Maximum borehole diameter [mm]
199
Input voltage [V]
without motor
Delivery port ["]
DN125
