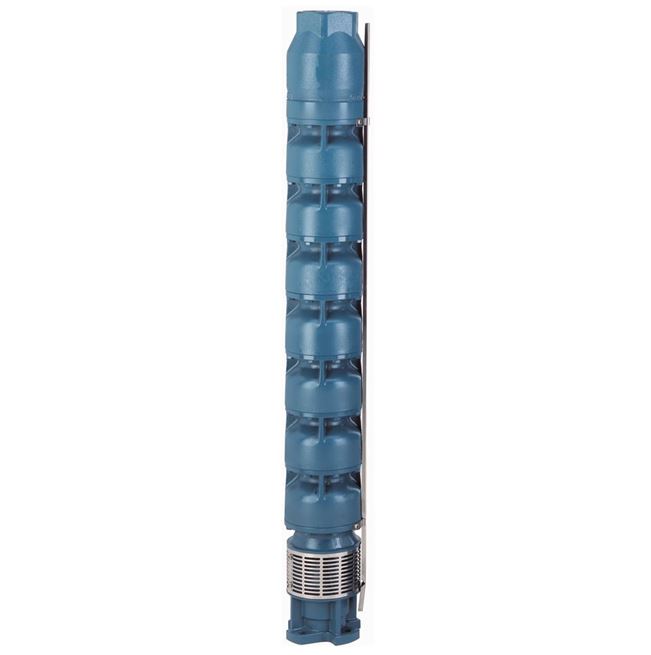

Calpeda 6 SDS 42 hydraulic part without motor

  • Calpeda 6 SDS 42 hydraulic part without motor
    Calpeda 6 SDS 42 hydraulic part without motor
  • Calpeda 6 SDS 42 hydraulic part without motor
    Calpeda 6 SDS 42 hydraulic part without motor
  • Calpeda 6 SDS 42 hydraulic part without motor
    Calpeda 6 SDS 42 hydraulic part without motor

Drinking water certificate

previous next
Calpeda 6 SDS 42 hydraulic part without motor Calpeda 6 SDS 42 hydraulic part without motor Calpeda 6 SDS 42 hydraulic part without motor
Calpeda 6 SDS 42 hydraulic part without motor

Submersible borehole pumps for 6” wells See more

Technical Specifications

Drinking water certificate
YES
Power output - P2 [kW]
4 - 30
Construction
centrifugal
Maximum flow [l/min]
850

Show all Tech Specs

on demand check availability

from 1,062.68 € VAT included

Choose variant

Register your business and get the benefits of a user account. %

Brand:
CALPEDA
Category:
Submersible borehole pumps
Product No.:
MAS001274

Product variants

  • Technical Specifications
  • Product No.
  • Drinking water certificate
  • Power output - P2 [kW]
  • Construction
  • Maximum flow [l/min]
  • Maximum head [m]
  • Impeller material
  • Dry run protection
  • Float switch
  • Pump diameter ["]
  • Maximum borehole diameter [mm]
  • Input voltage [V]
  • Delivery port ["]
  • Check valve
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda 6 SDS 42/02 hydraulic part without motor (4kW)

Product No.: ZB00056494 Sale group: CECP EAN: 8030485178200 Manuf. No.: 40SD0100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,062.68 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
4
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
27
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/03 hydraulic part without motor (5,5kW)

Product No.: ZB00052729 Sale group: CECP EAN: 8030485134121 Manuf. No.: 40SD0200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,314.58 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
5,50
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
40
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/04 hydraulic part without motor (7,5kW)

Product No.: ZB00056495 Sale group: CECP EAN: 8030485075523 Manuf. No.: 40SD0300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,559.67 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
7,50
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
53,50
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/05 hydraulic part without motor (9,2kW)

Product No.: ZB00056496 Sale group: CECP EAN: 8030485163565 Manuf. No.: 40SD0400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,800.93 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
9,20
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
67
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/06 hydraulic part without motor (11kW)

Product No.: ZB00052730 Sale group: CECP EAN: 8030485076223 Manuf. No.: 40SD0500000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,052.82 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
11
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
80,50
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/07 hydraulic part without motor (13-15kW)

Product No.: ZB00056497 Sale group: CECP EAN: 8030485315995 Manuf. No.: 40SD0600000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,298.93 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
13
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
94
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/08 hydraulic part without motor (15kW)

Product No.: ZB00056498 Sale group: CECP EAN: 8030485076230 Manuf. No.: 40SD0700000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,560.48 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
15
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
107
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/09 hydraulic part without motor (15kW)

Product No.: ZB00056499 Sale group: CECP EAN: 8030485076247 Manuf. No.: 40SD0800000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,807.50 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
15
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
120
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/10 hydraulic part without motor (18,5kW)

Product No.: ZB00001690 Sale group: CECP EAN: 8030485076254 Manuf. No.: 40SD0900000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,846.19 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
18,50
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
134
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/11 hydraulic part without motor (18,5kW)

Product No.: ZB00056500 Sale group: CECP EAN: 8030485076261 Manuf. No.: 40SD1000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,299.64 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
18,50
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
147
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/12 hydraulic part without motor (22kW)

Product No.: ZB00056501 Sale group: CECP EAN: 8030485352563 Manuf. No.: 40SD1100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,539.88 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
22
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
161
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/13 hydraulic part without motor (22kW)

Product No.: ZB00056502 Sale group: CECP EAN: 8030485076278 Manuf. No.: 40SD1200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,801.40 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
22
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
174
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/14 hydraulic part without motor (26-30kW)

Product No.: ZB00056503 Sale group: CECP EAN: 8030485340546 Manuf. No.: 40SD1300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,990.35 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
26
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
187
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/15 hydraulic part without motor (26kW)

Product No.: ZB00056504 Sale group: CECP Manuf. No.: 40SD1400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,300.35 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
26
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
201
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/16 hydraulic part without motor (30kW)

Product No.: ZB00056505 Sale group: CECP EAN: 8030485076285 Manuf. No.: 40SD1500000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,534.74 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
30
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
214
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/17 hydraulic part without motor (30kW)

Product No.: ZB00056506 Sale group: CECP EAN: 8030485228240 Manuf. No.: 40SD1600000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,791.51 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
30
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
228
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Calpeda 6 SDS 42/18 hydraulic part without motor (30kW)

Product No.: ZB00056507 Sale group: CECP EAN: 8030485419631 Manuf. No.: 40SD1700000

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,048.26 €

Not sellable online

Drinking water certificate
YES
Power output - P2 [kW]
30
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
241
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

Product description

Construction

Submersible borehole pumps for 6” wells (DN 150 mm), with stages in cast iron or in bronze, on request.
Impellers: mixed flow impellers.
Connection: screwed connection ISO 228
Delivery casing with built-in non-return valve.

Applications

- For water supply.
- For civil and industrial applications.
- For fire fighting applications.
- For irrigation.

Instructions

Technical Specifications

Drinking water certificate
YES
Power output - P2 [kW]
4 - 30
Construction
centrifugal
Maximum flow [l/min]
850
Maximum head [m]
27 - 241
Impeller material
cast iron
Float switch
NO
Pump diameter ["]
6
Maximum borehole diameter [mm]
153
Input voltage [V]
without motor
Delivery port ["]
3

{9503C5C0-599E-4D74-9530-64669EDC6C10}

{74F69362-9499-4561-9BCD-9B728A39DDB8}
Calpeda S.p.A.
Via Roggia di Mezzo 39, 36050 Montorso Vicentino, IT
{13991AA5-D921-4185-9F6C-629838AEA0E6} [email protected]
